9 Required For "Front Sensor Short" Fault

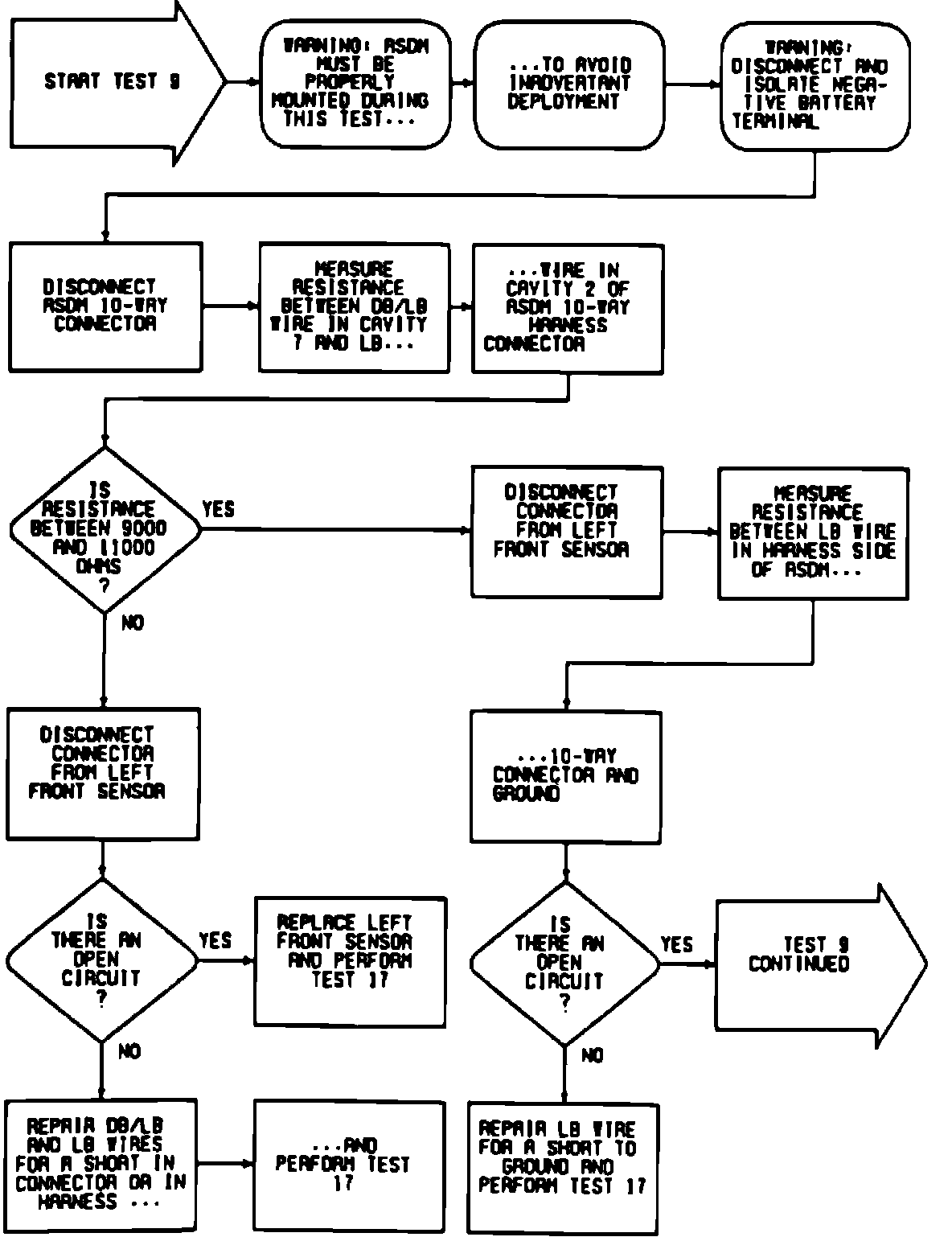

Fig. 27 Test 9, Repair Required For ``Front Sensor Short'' Fault (Part 1 Of 3):

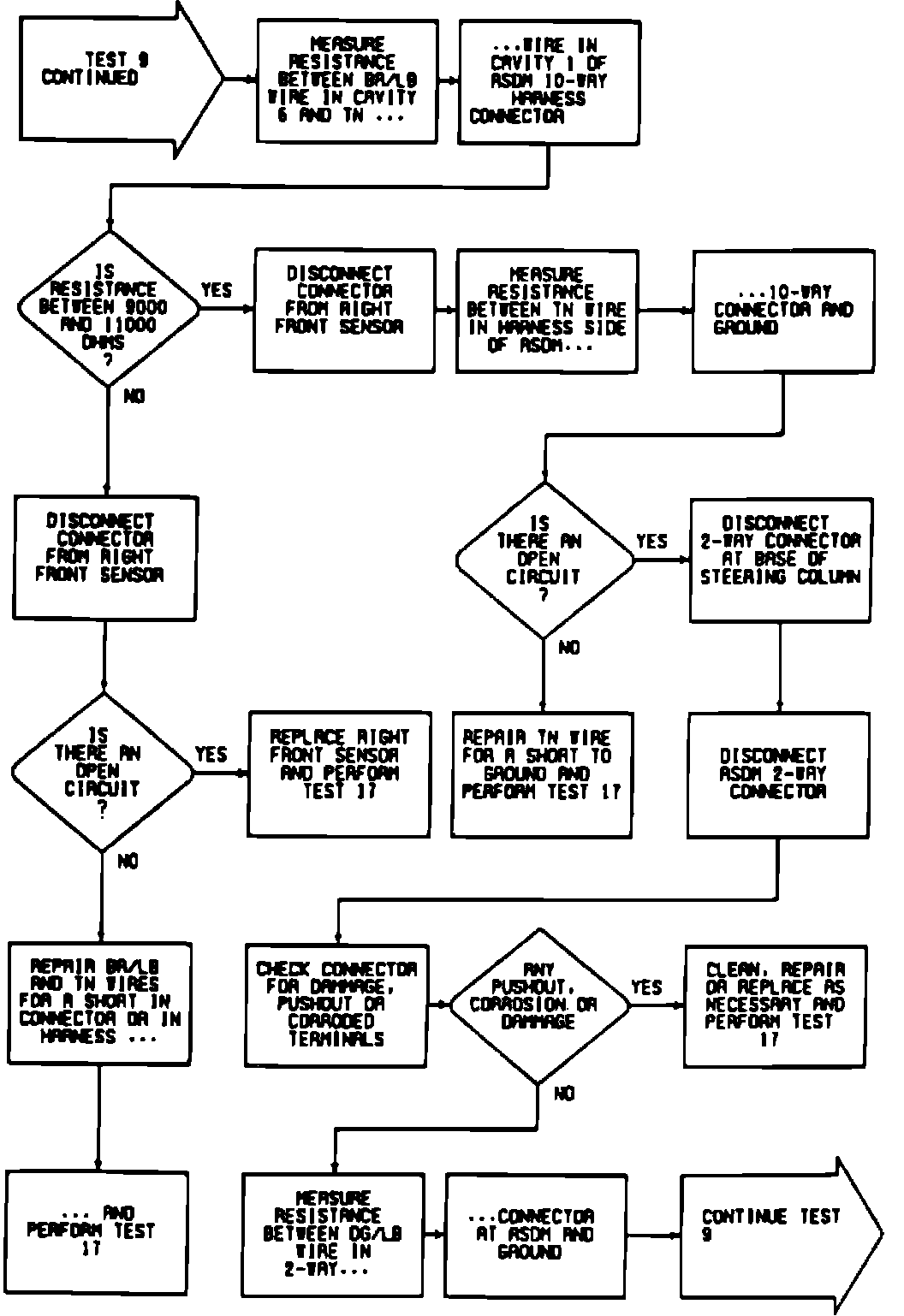

Fig. 27 Test 9, Repair Required For ``Front Sensor Short'' Fault (Part 2 Of 3):

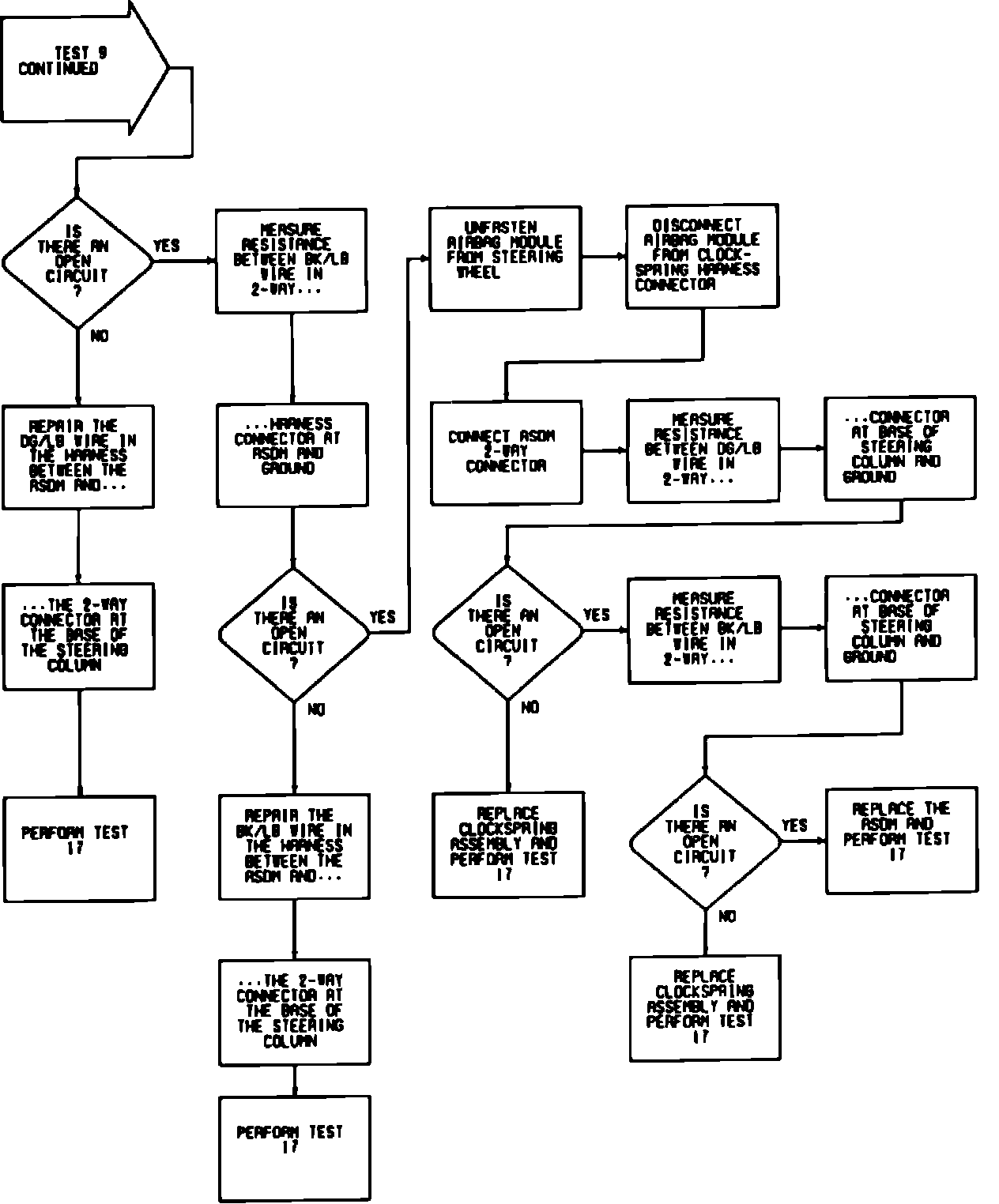

Fig. 27 Test 9, Repair Required For ``Front Sensor Short'' Fault (Part 3 Of 3):
