15 Required For "Ignition 1 (Run/Start) Low" Fault

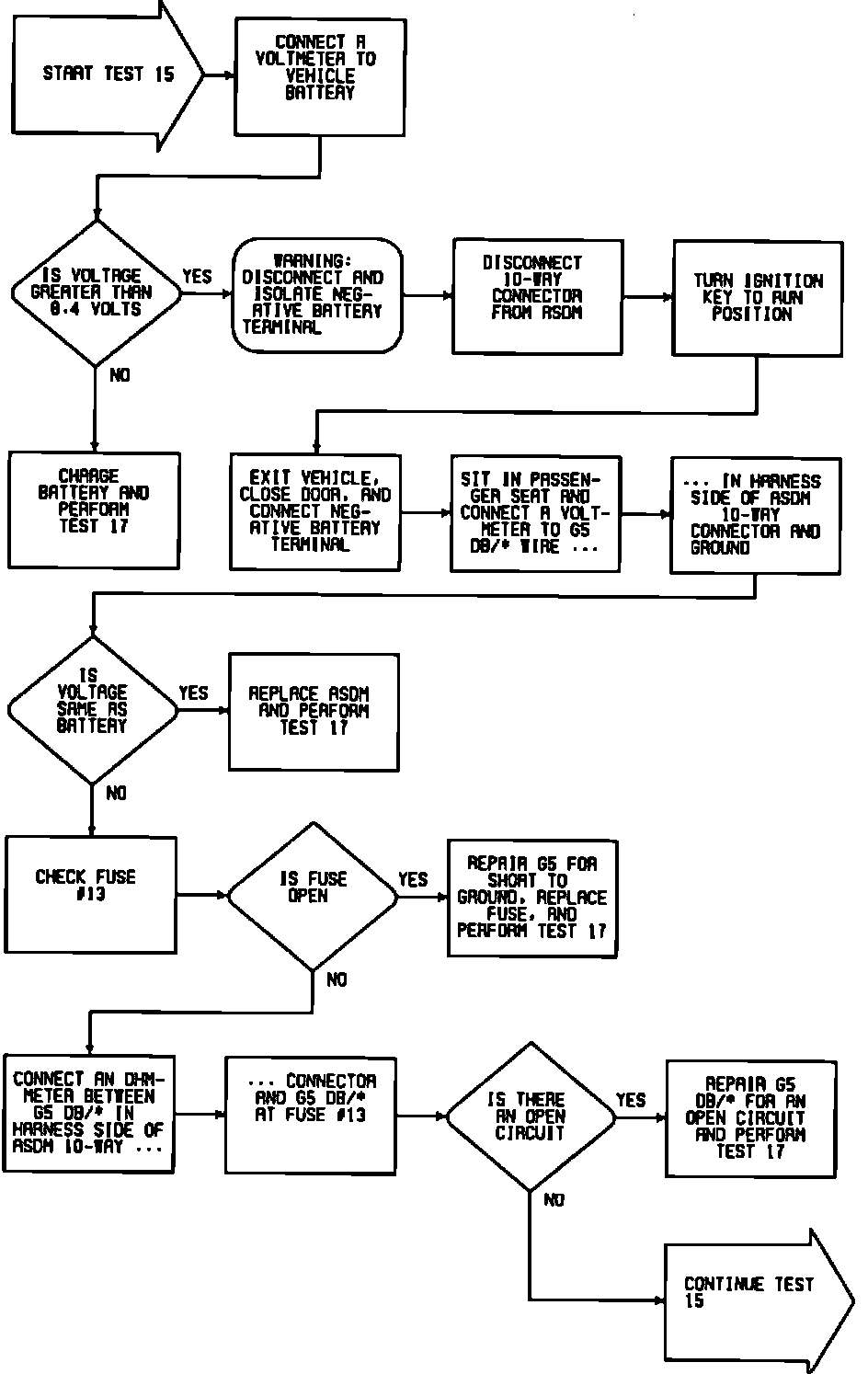

Fig. 45 Test 15, Repair Required For ``Ignition 1 (Run/Start) Low'' Fault (Part 1 Of 2):

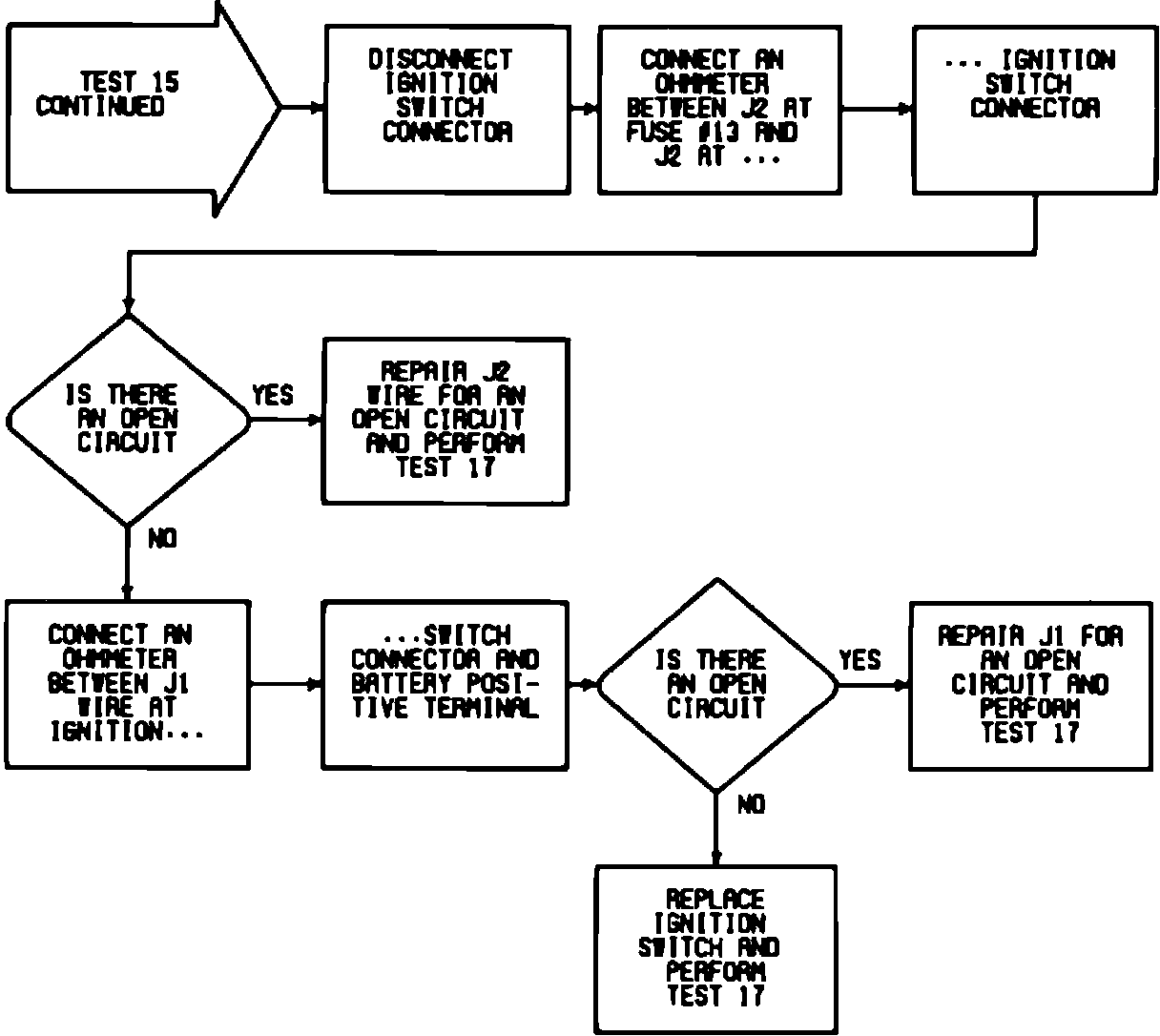

Fig. 45 Test 15, Repair Required For ``Ignition 1 (Run/Start) Low'' Fault (Part 2 Of 2):
