Home >> Chrysler >> 1990 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Parts and Labor >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Images

Images

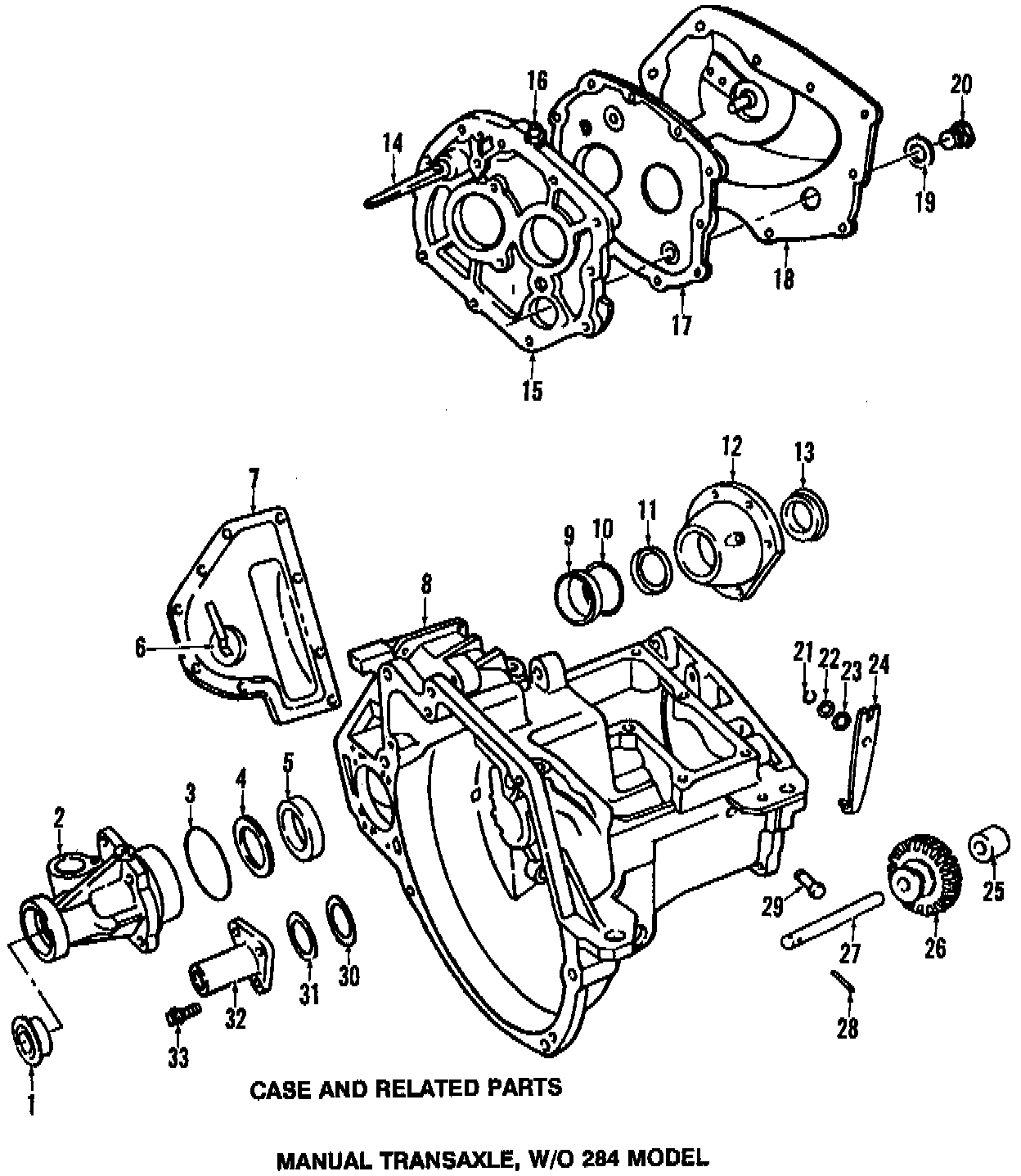

Case & Related Parts:

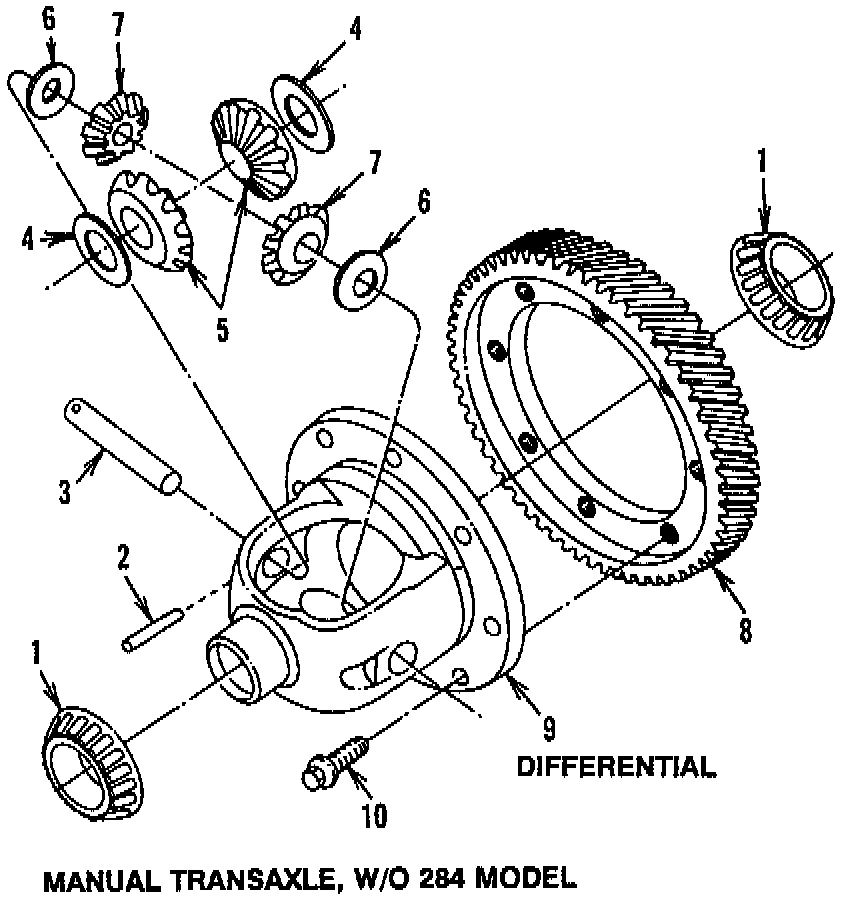

Differential:

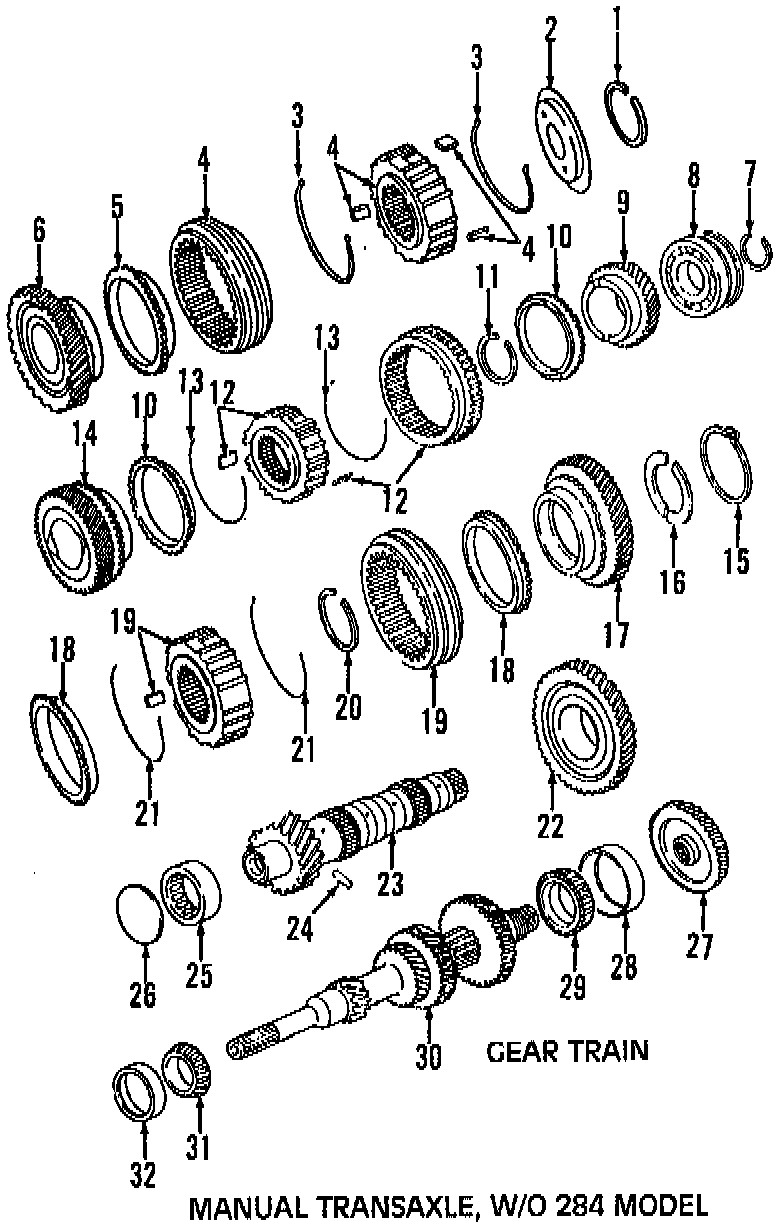

Gear Train:

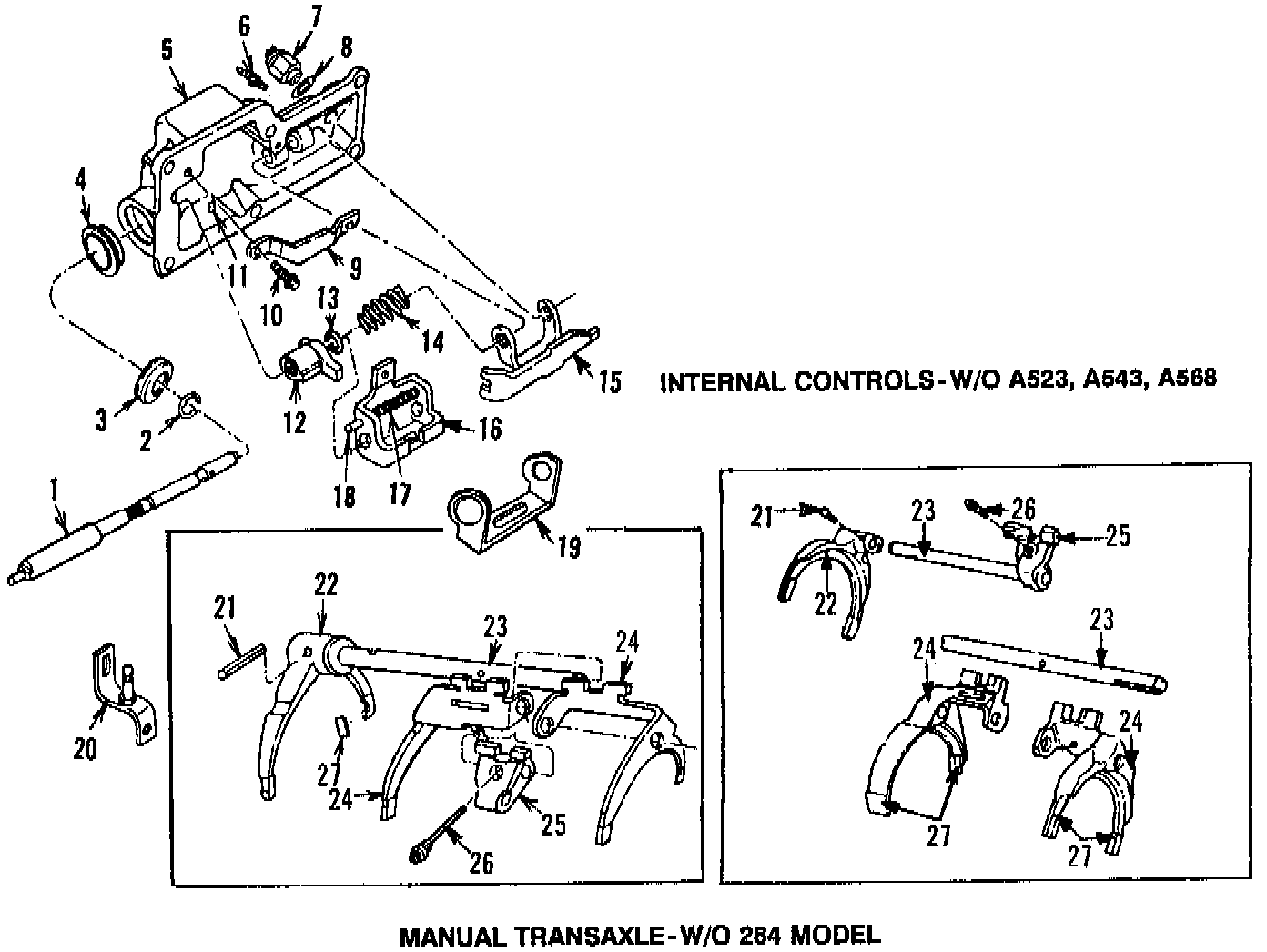

Internal Controls, Without A523, A543 & A568:

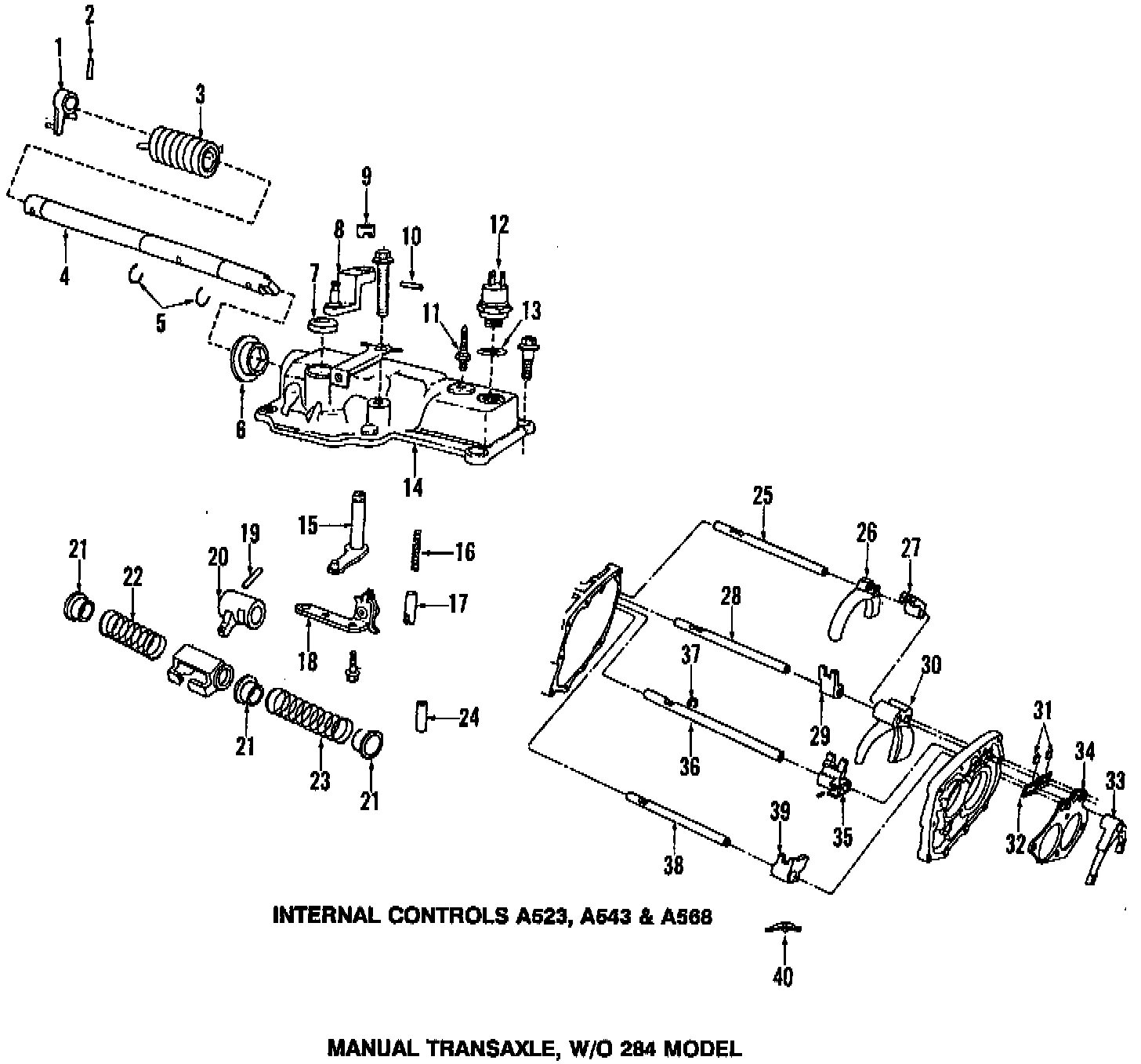

Internal Controls, With A523, A543, & A568:
