DR-6 Repairing "No Vehicle Speed Signal" Fault
DR-6 Repairing "No Vehicle Speed Signal" Fault
*** Updated by TSB# 182790, Nov. 1990

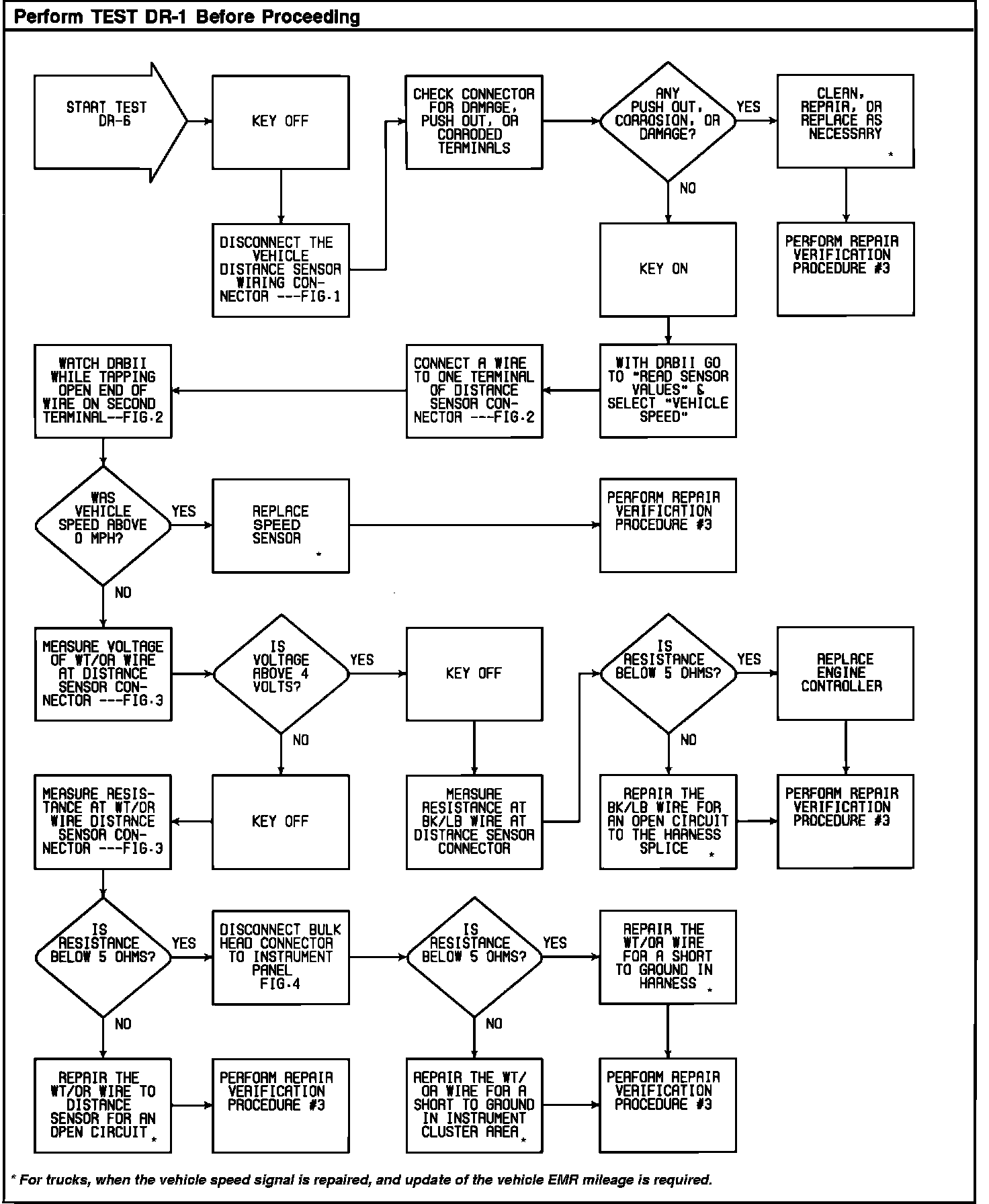

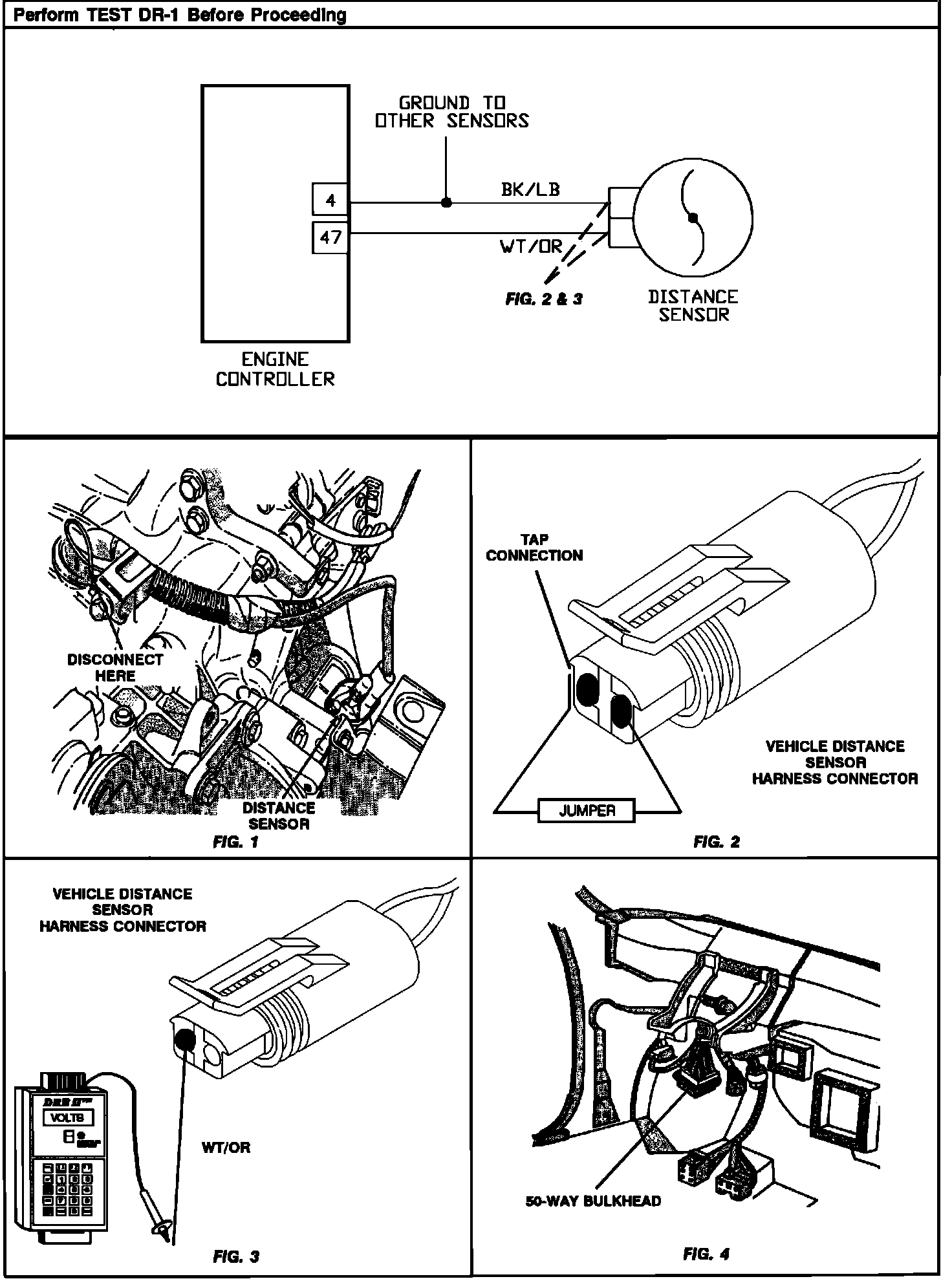

Test DR-6 - Repairing Fault "Vehicle Speed Signal":
Test DR-6 - Repairing Fault "Vehicle Speed Signal":
