Home >> Chrysler >> 1990 >> Lebaron Convertible L4-153 2.5L SOHC Turbo VIN J FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-37 Checking Fuel Mixture

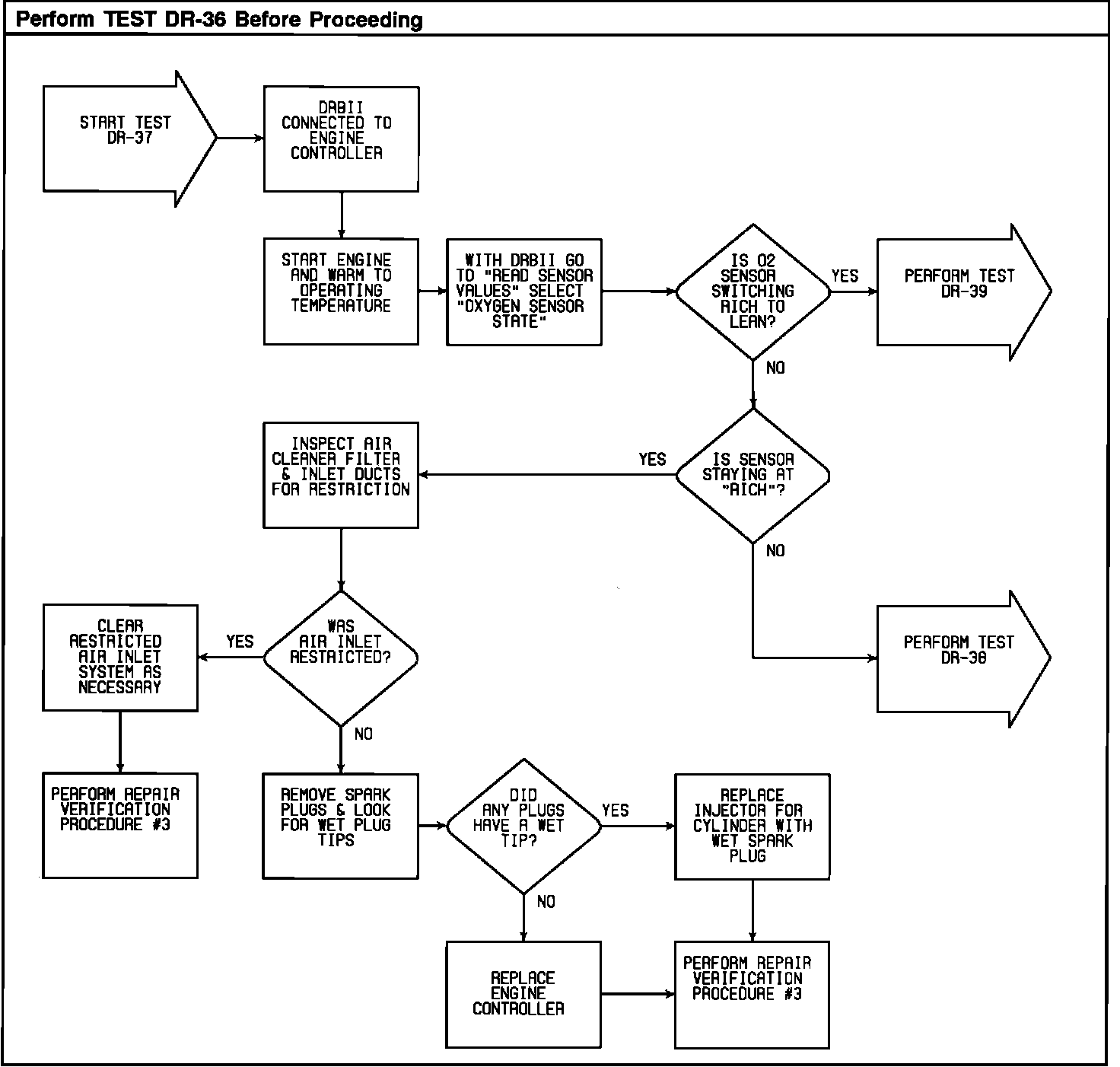

DR-37 Checking Fuel Mixture

Test DR-37 - Checking For Fuel Mixture:
