DR-34 Checking Engine Controller Ground & Power Circuits
DR-34 Checking Engine Controller Ground & Power Circuits
*** Updated by TSB# 182790, Nov. 1990

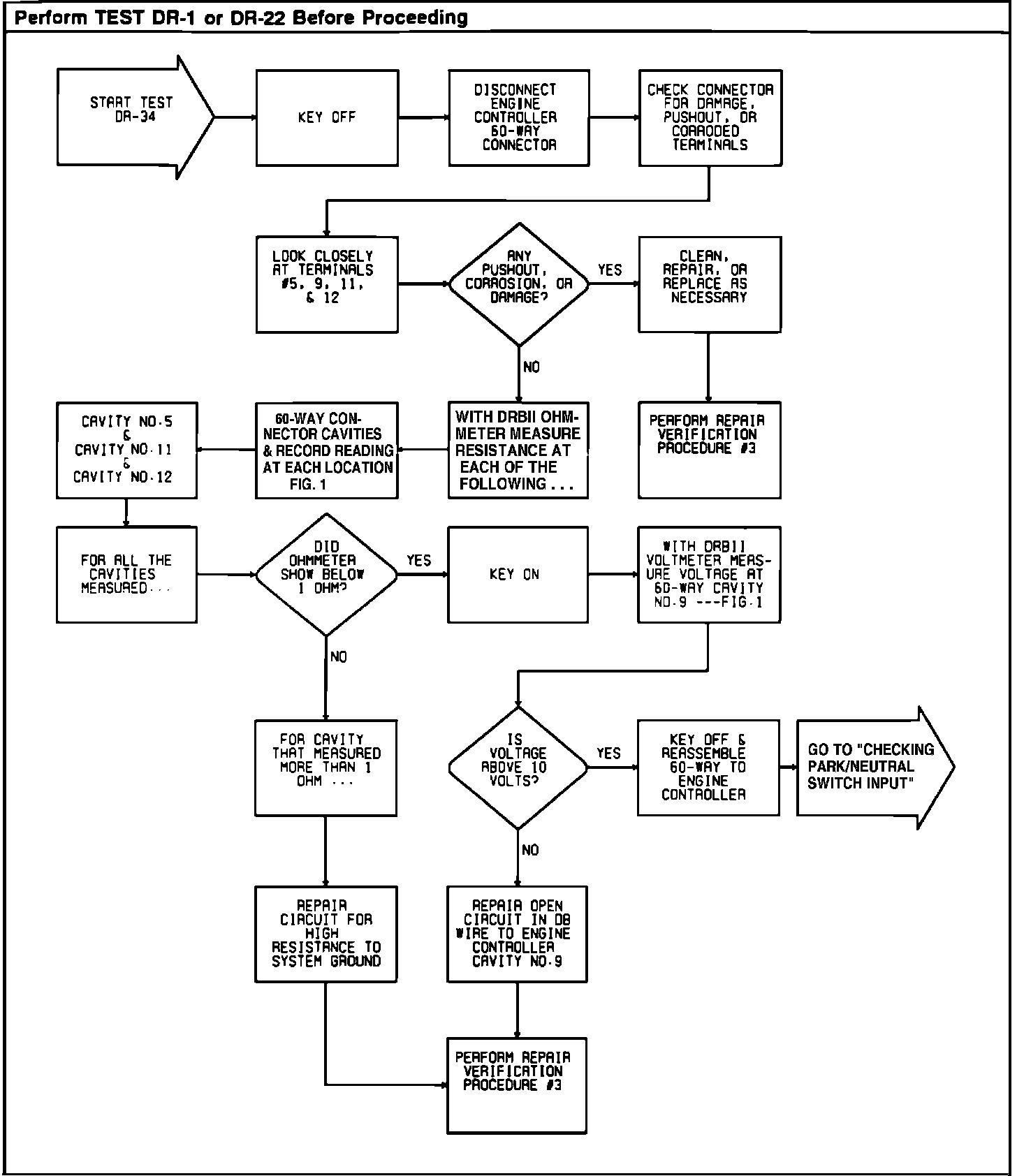

Checking Engine Controller Ground And Power Circuits:

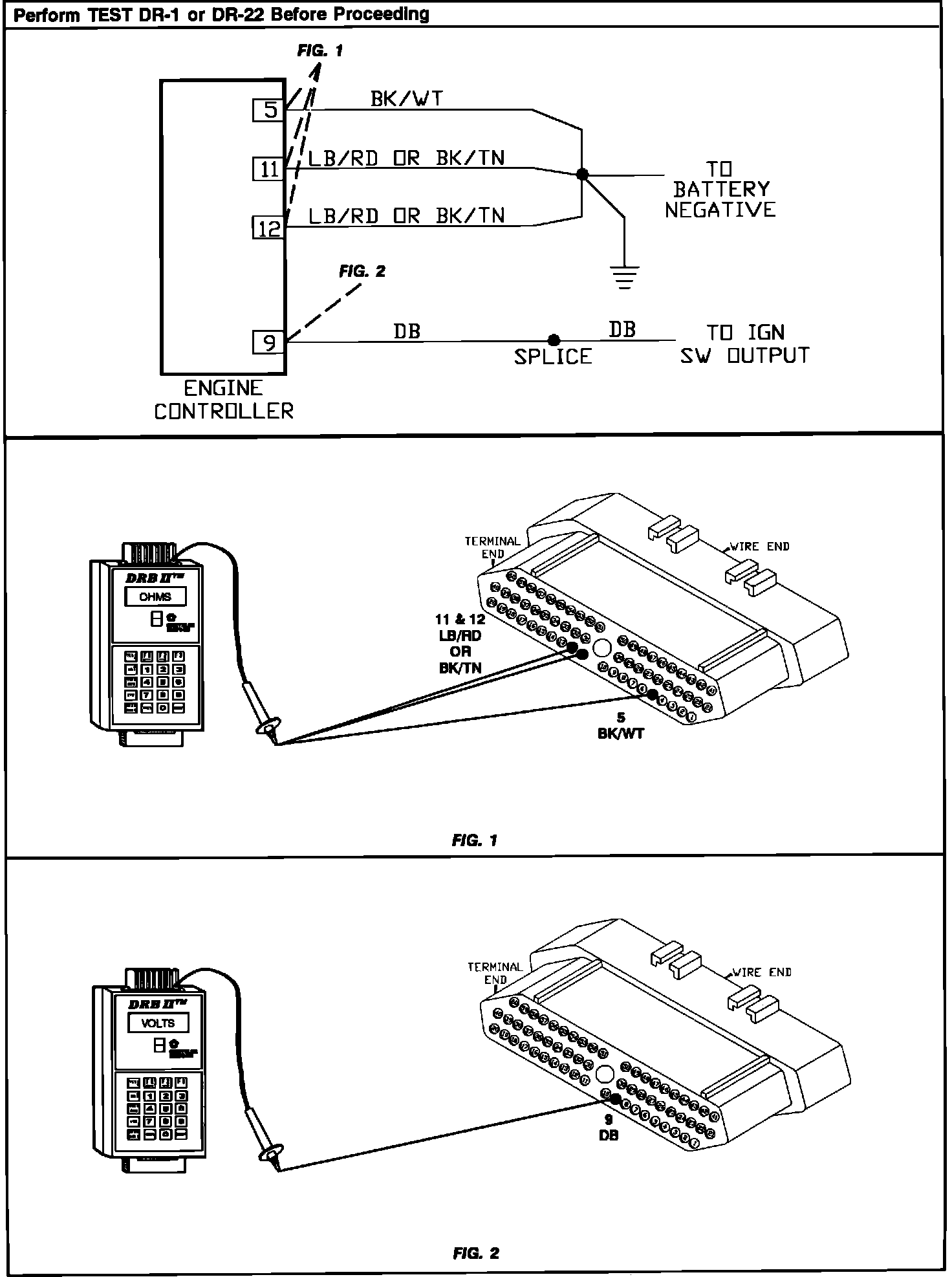

Checking Engine Controller Ground And Power Circuits:
