Home >> Chrysler >> 1990 >> Lebaron Convertible L4-153 2.5L SOHC Turbo VIN J FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-32 Repairing "BARO Read Solenoid" Fault >> Part 1 of 2

Part 1 of 2

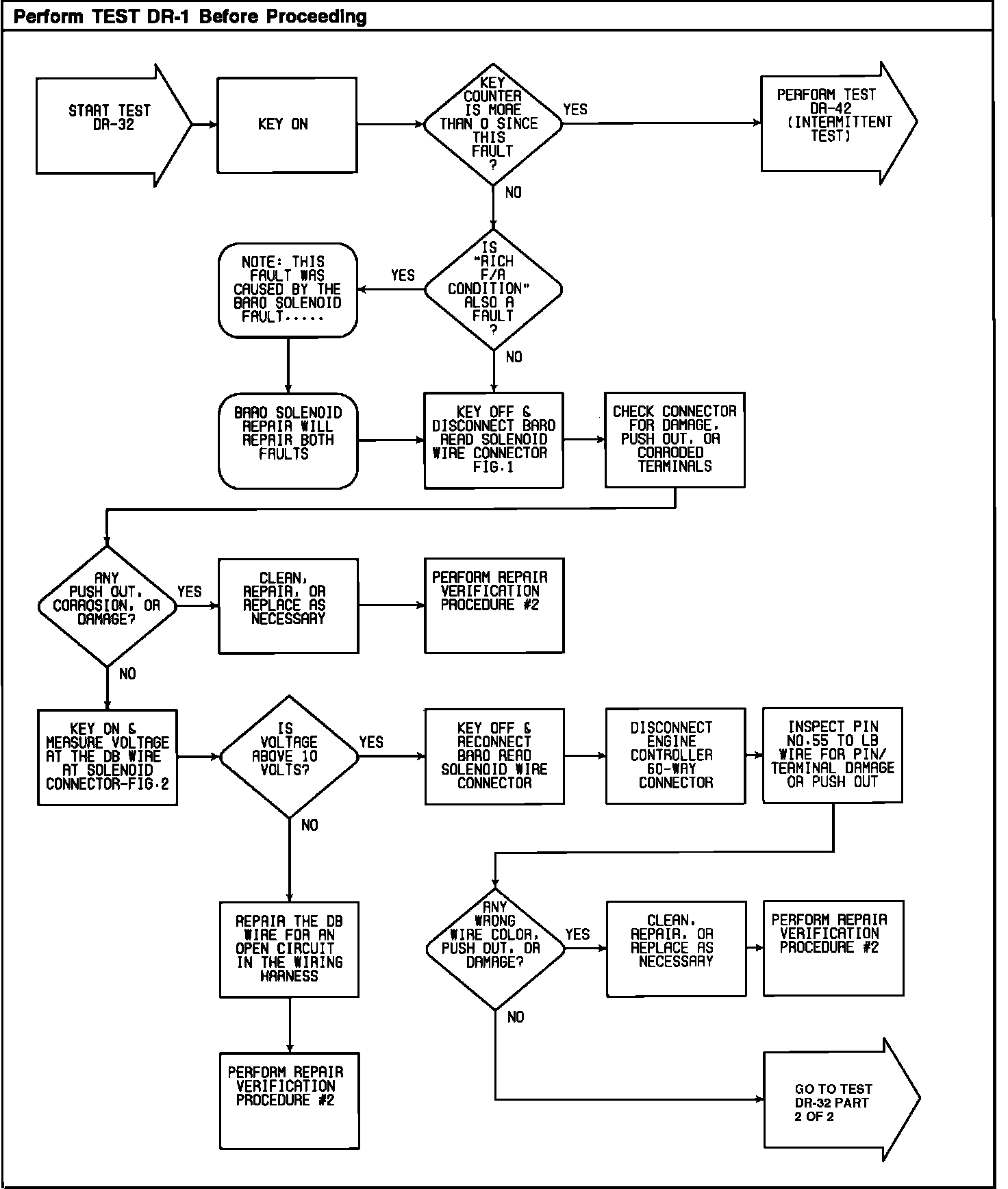

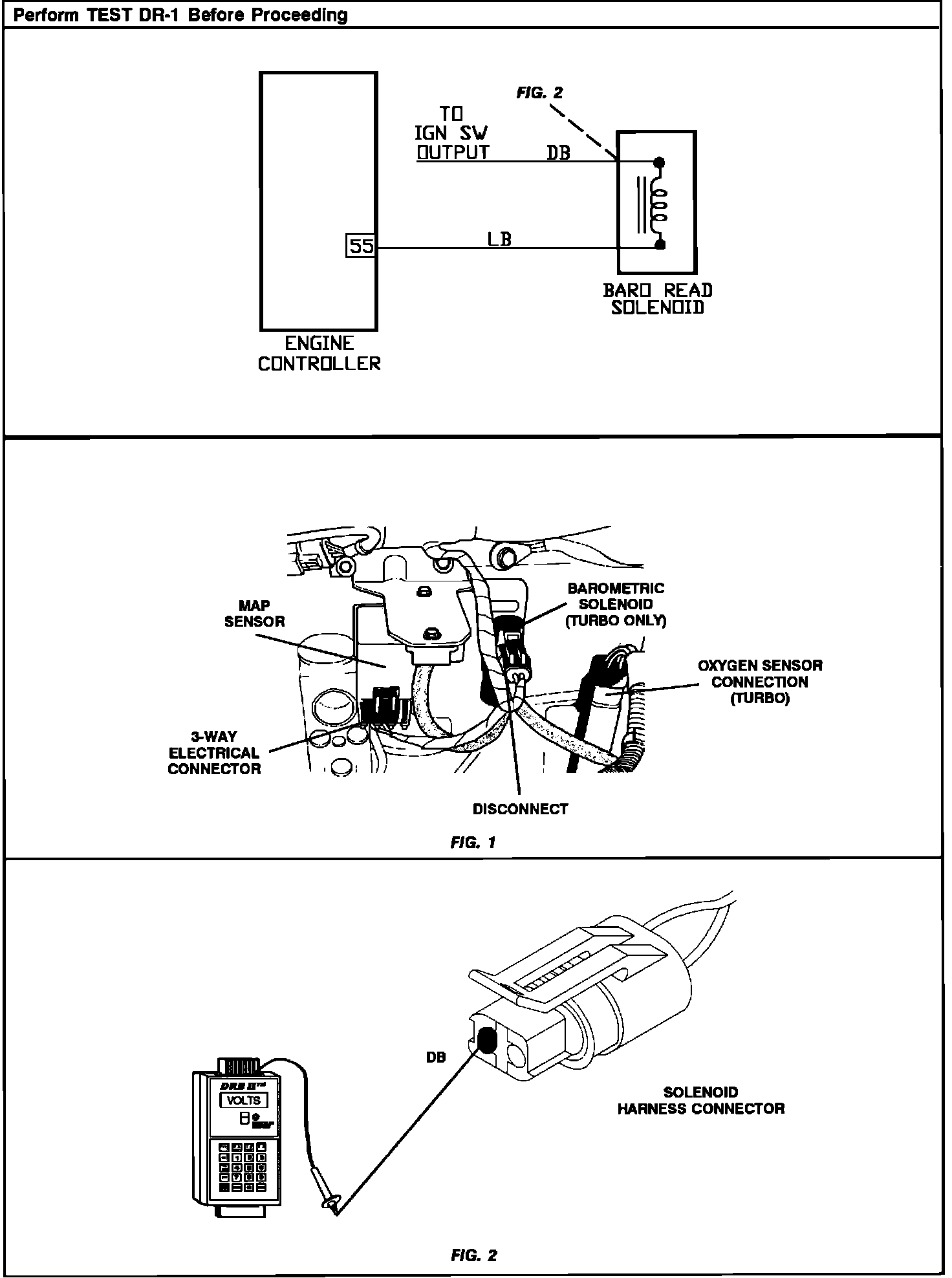

Test DR-32 - Repairing Fault "Baro Read Solenoid":



Test DR-32 - Repairing Fault "Baro Read Solenoid":
