Home >> Chrysler >> 1990 >> Lebaron Convertible L4-153 2.5L SOHC Turbo VIN J FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-22 Repairing "EGR System Failure" Fault (California) >> Part 1 0F 2

Part 1 0F 2

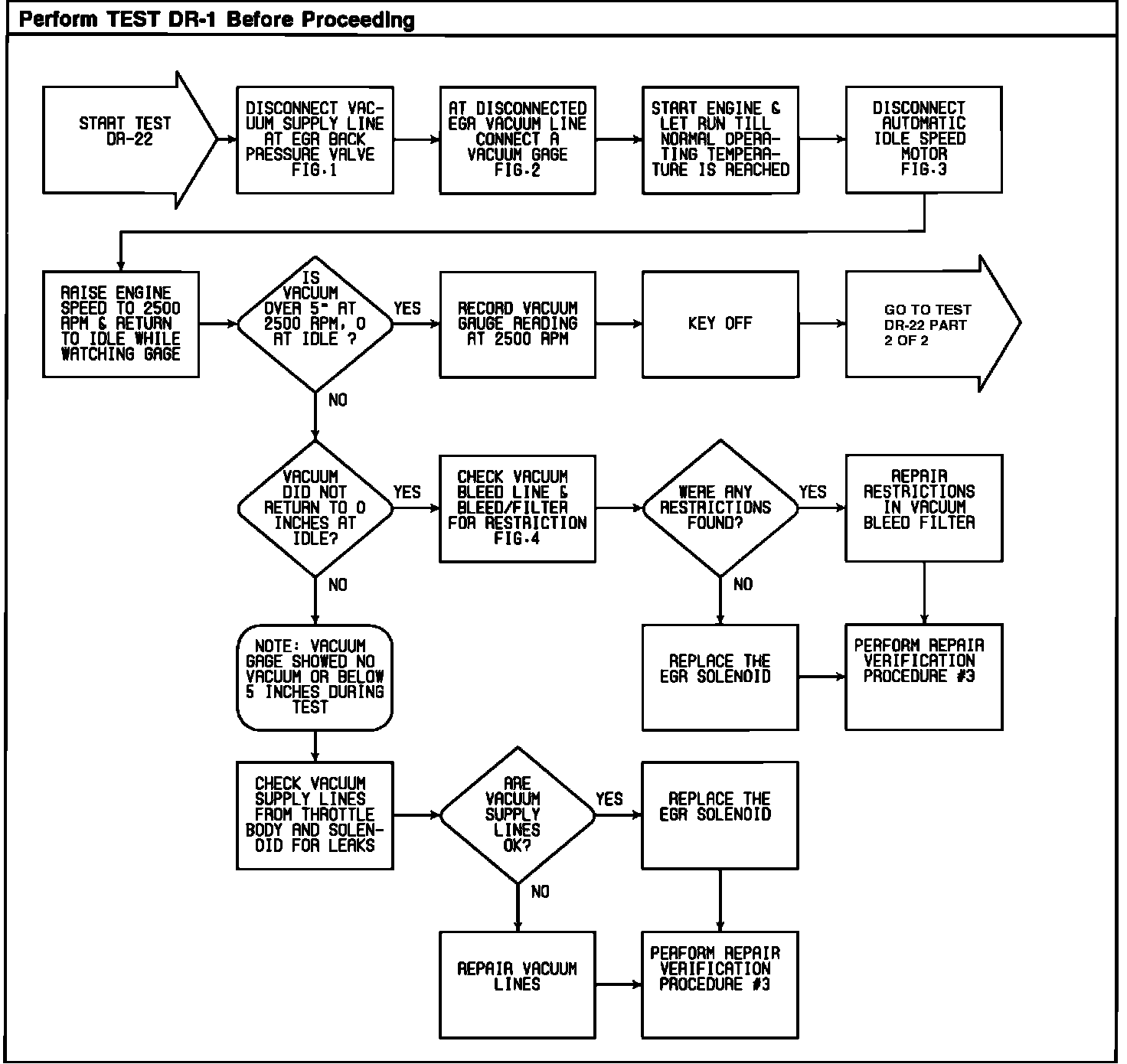

Test DR-22 - Repairing Fault "EGR System Failure" (California):



Test DR-22 - Repairing Fault "EGR System Failure" (California):
