DR-21 Repairing "EGR Solenoid Circuit" Fault (California)
DR-21 Repairing "EGR Solenoid Circuit" Fault (California)

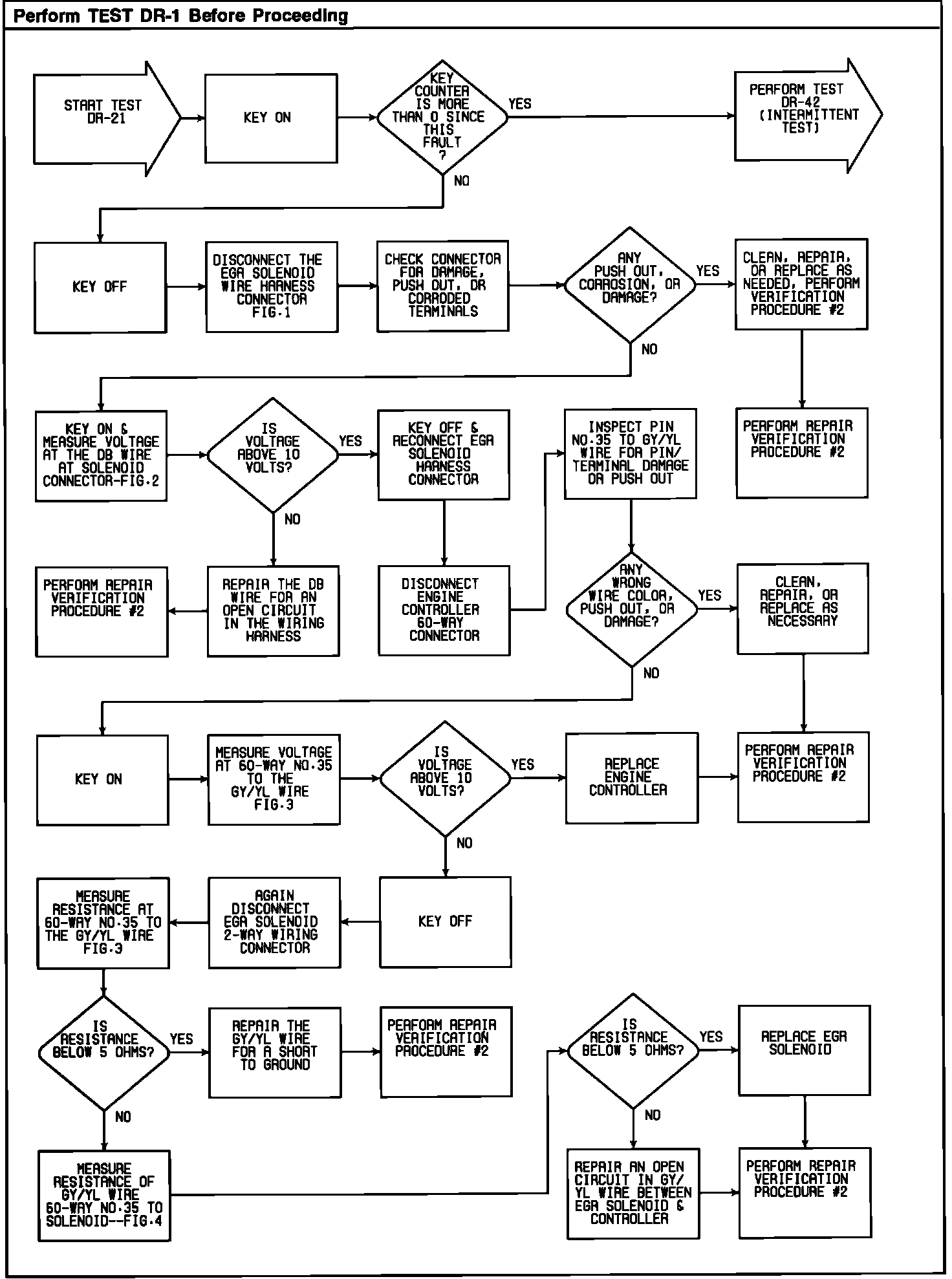

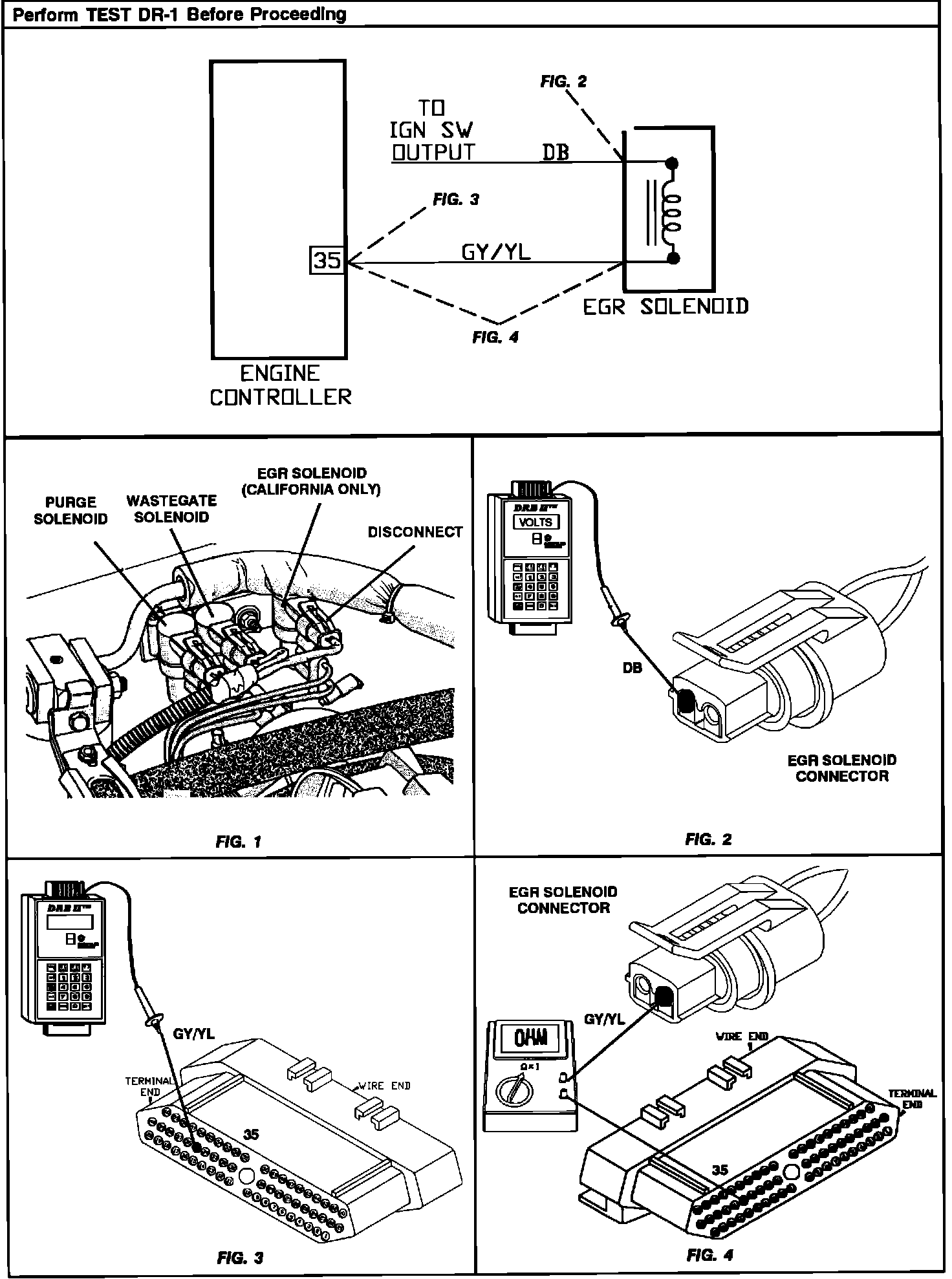

Test Dr-21 - Repairing Fault "EGR Solenoid Circuit" (California):
Test Dr-21 - Repairing Fault "EGR Solenoid Circuit" (California):
