Lebaron Convertible L4-153 2.5L SOHC Turbo VIN J FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-11 Repairing "Charge Temp Volt Low" Fault
DR-11 Repairing "Charge Temp Volt Low" Fault

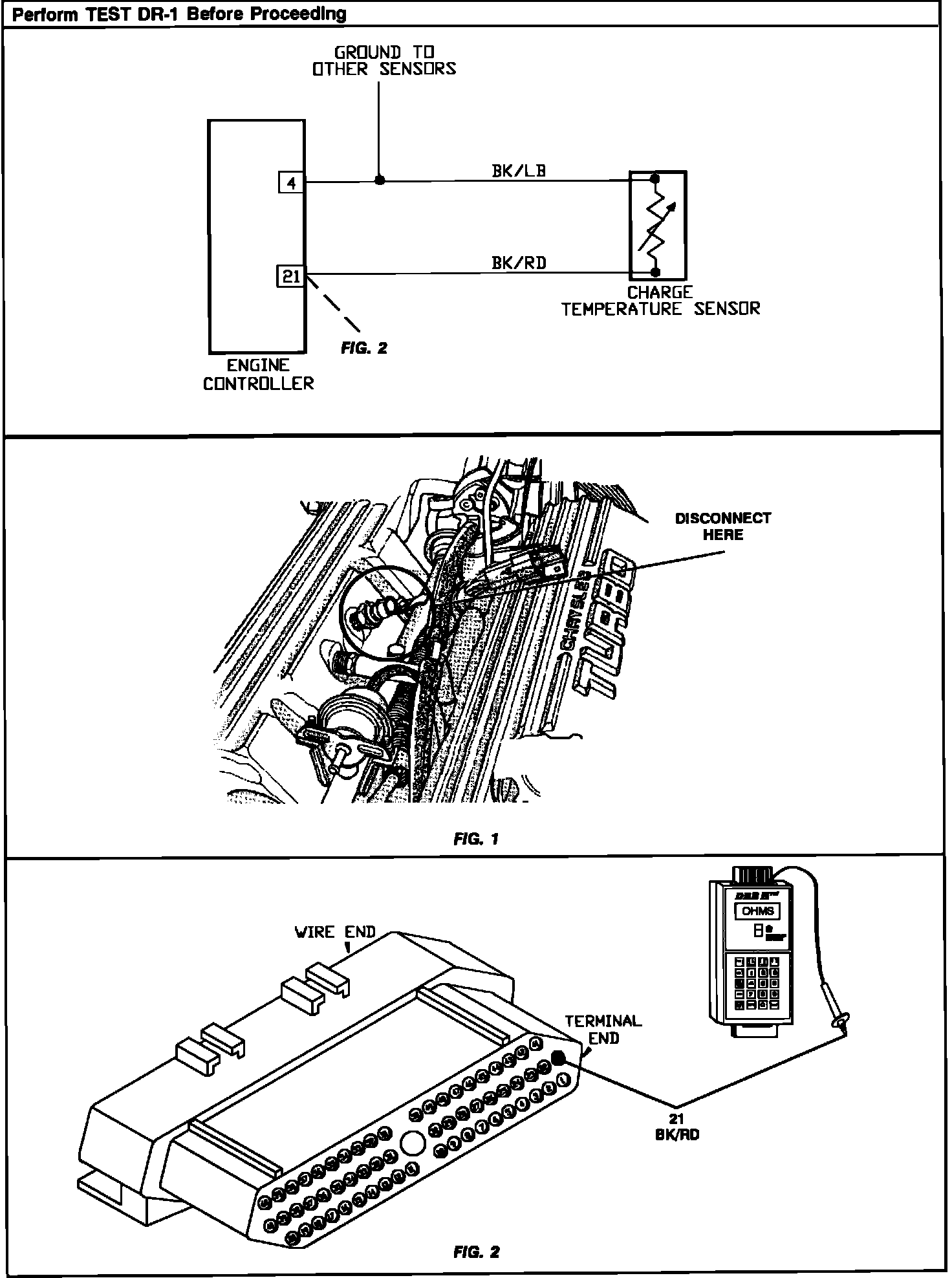

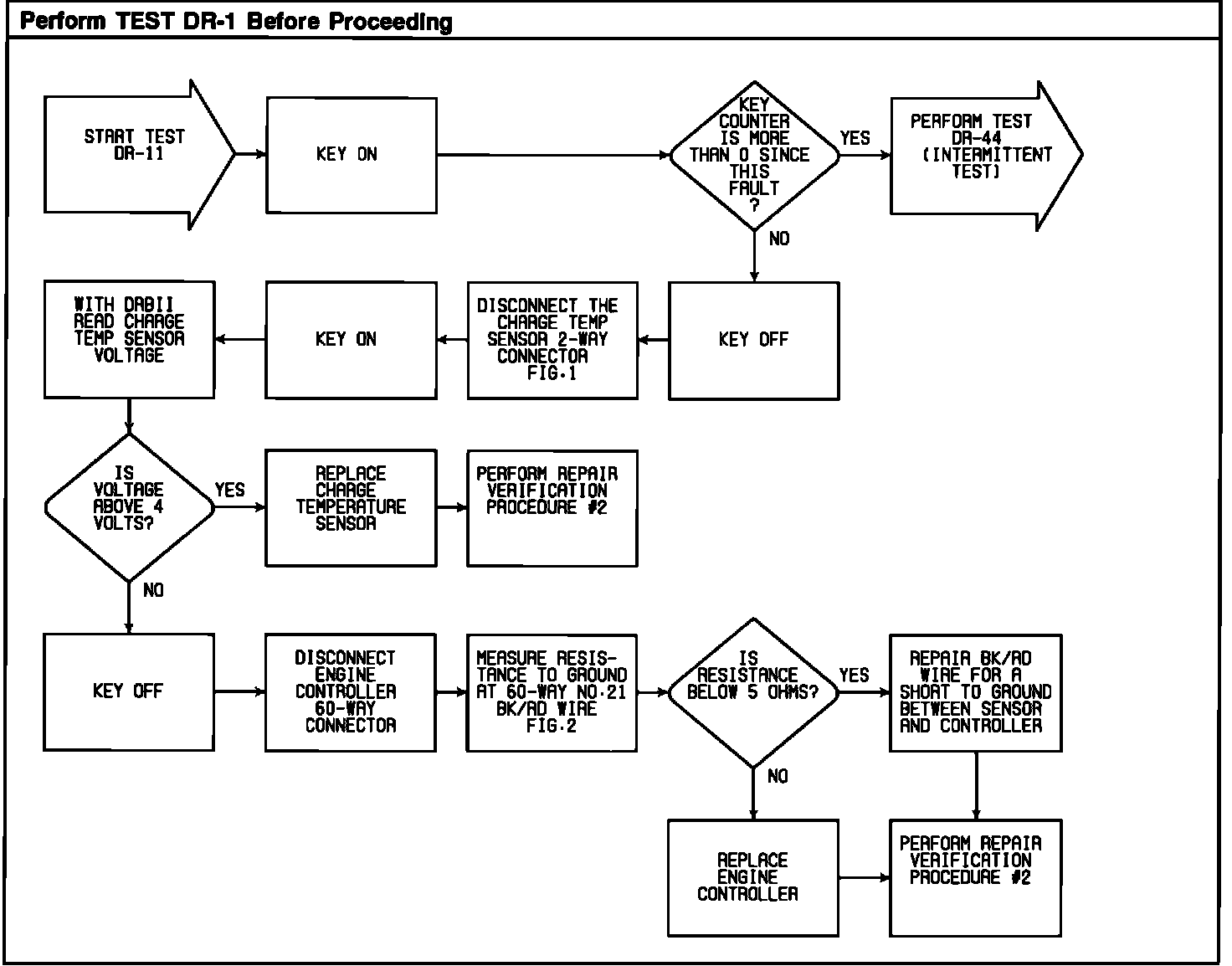

Test DR-11 - Repairing Fault "Charge Temperature Sensor Voltage Low":
Test DR-11 - Repairing Fault "Charge Temperature Sensor Voltage Low":
