Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Intermittent Wiper System >> Test 98 Checking Intermittent Wiper Circuit In BCM/Power Feed

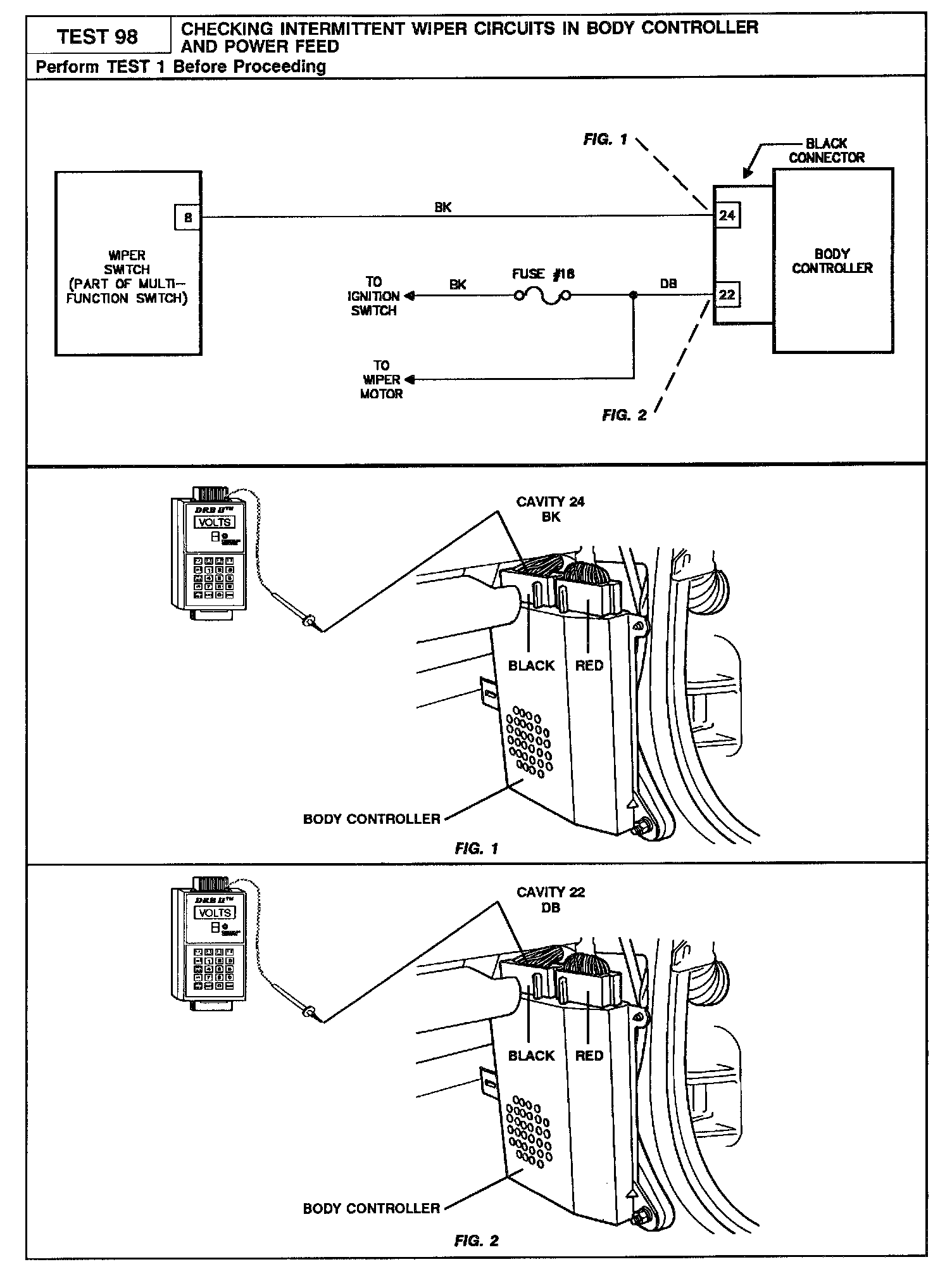

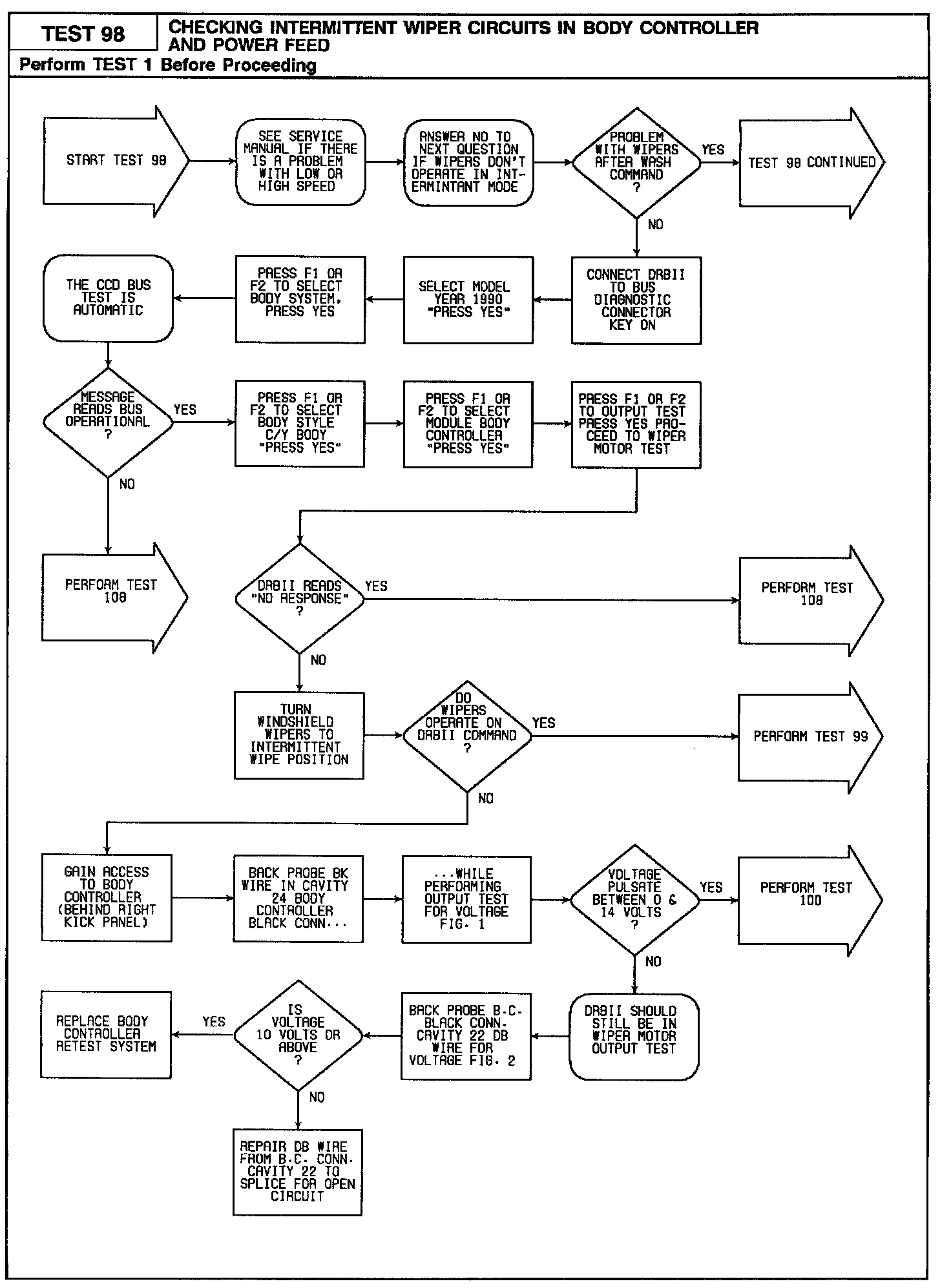

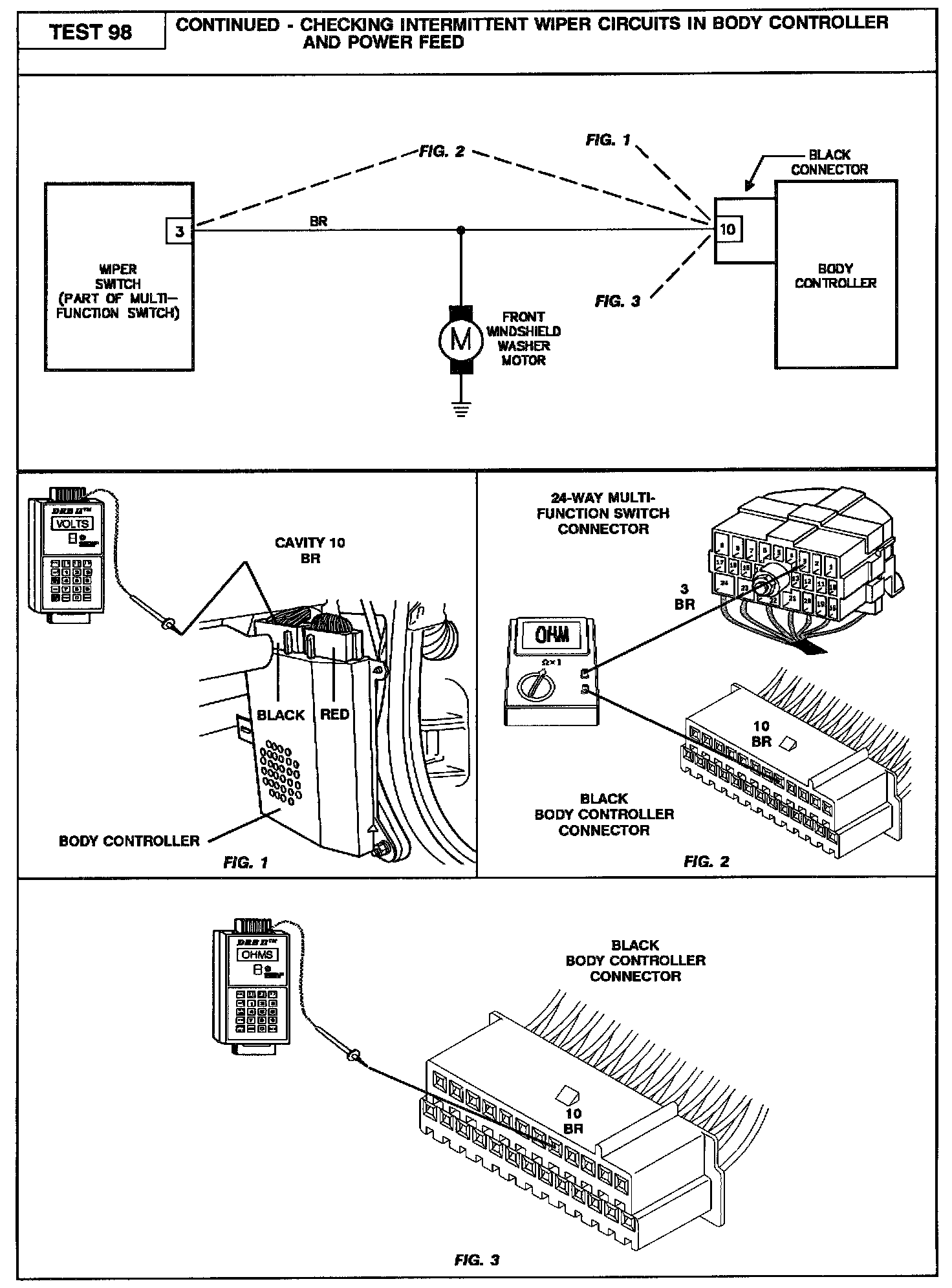

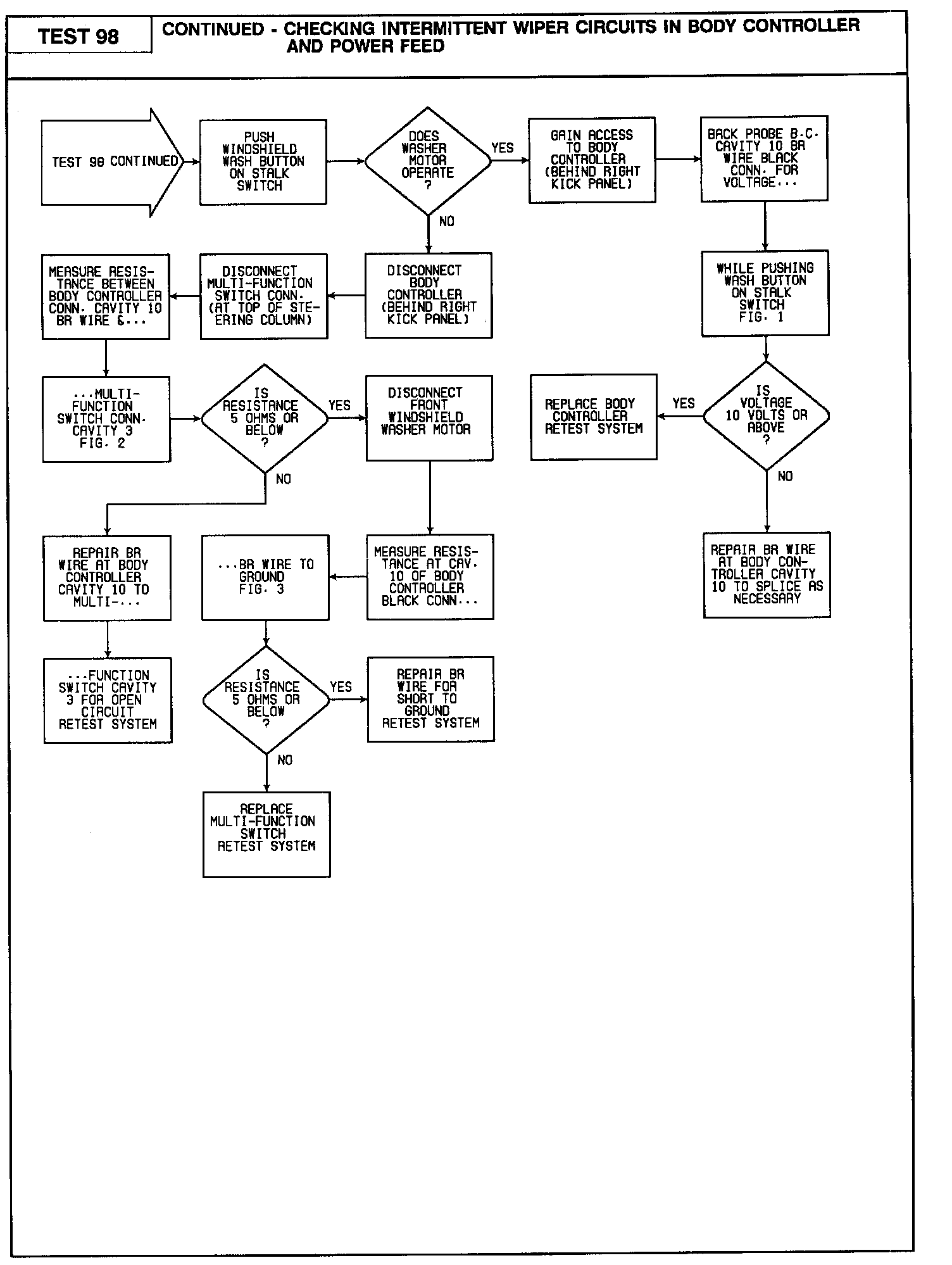

Test 98 Checking Intermittent Wiper Circuit In BCM/Power Feed
