Rear Door Window Glass: Service and Repair

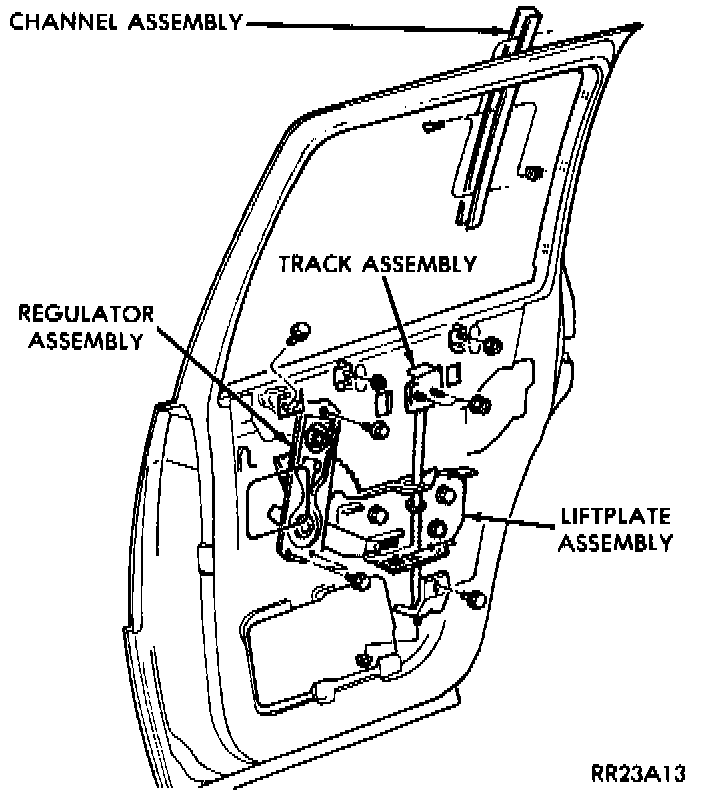

Rear Door:





1. Remove trim panel.
2. Remove watershield.
3. Remove door frame moulding.
4. Move glass to the down position and remove glass to lift plate fasteners (3 screws).
5. Loosen glass stabilizer bracket.
6. Remove glass from door.
7. For installation, reverse above procedure.
