Drive Axles, Bearings and Joints: Specifications

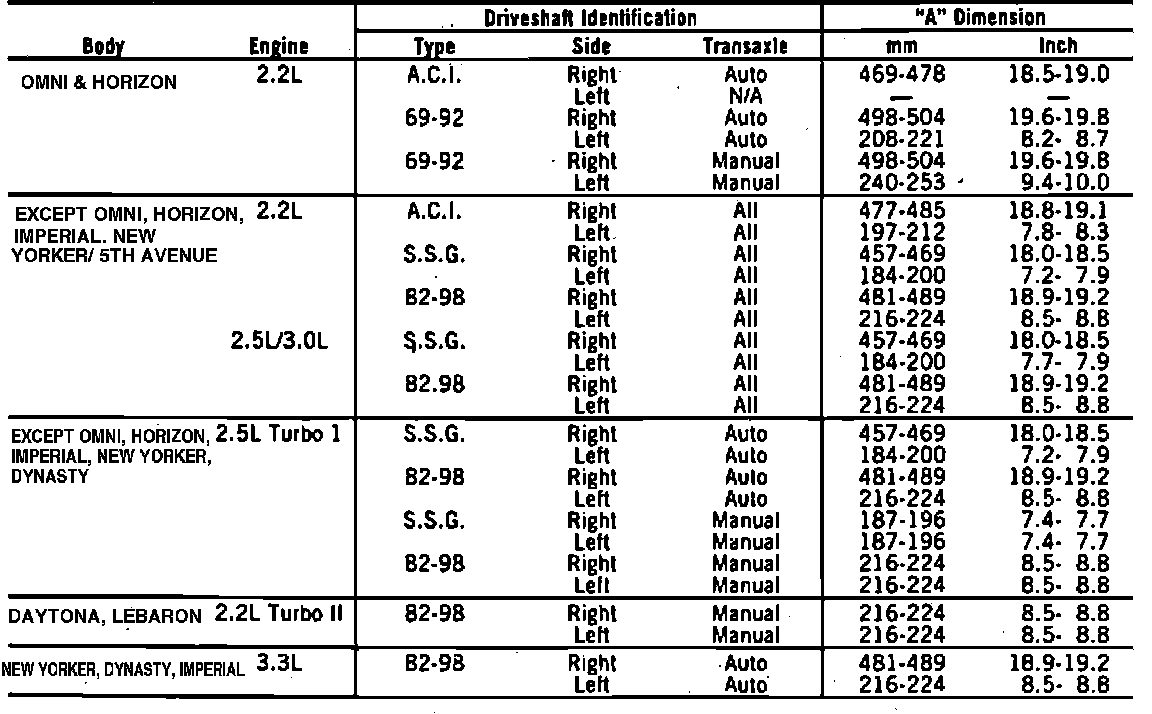

Fig. 6 Driveshaft Length Specifications:



Fig. 7 Driveshaft Length Specifications:
