Proportioning Valves

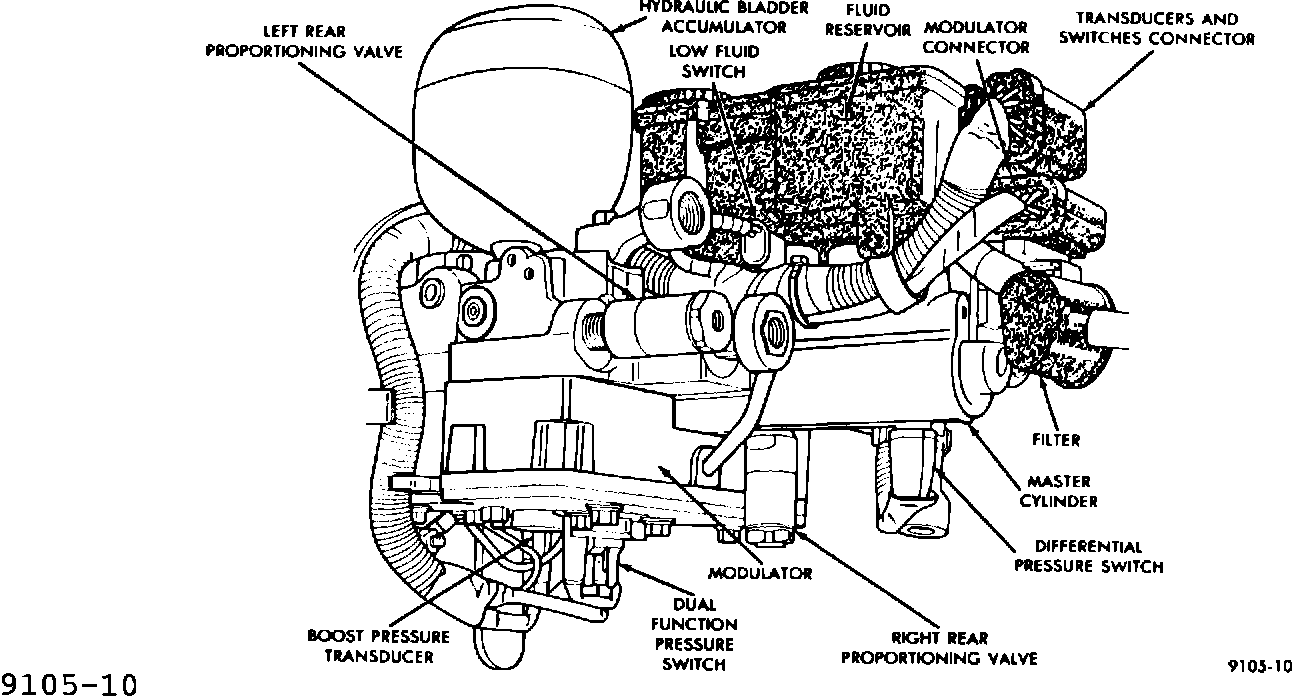

Fig. 7 - Hydraulic Assembly:

CAUTION: Proportioning valves should never be disassembled.

REMOVAL

(1) Remove brake tube and fitting from proportioning valve.

(2) Remove proportioning valve from hydraulic assembly.

INSTALLATION

(1) Install proportioning valve on hydraulic assembly and tighten to 40 N-m (30 ft.lbs.) torque.

(2) Install brake tube on proportioning valve. Tighten tube nut to 15 N-m (11 ft.lbs.) torque.

(3) Bleed the affected brake line, see Bleeding Brake System in this section.
