Pressure and Return Hoses

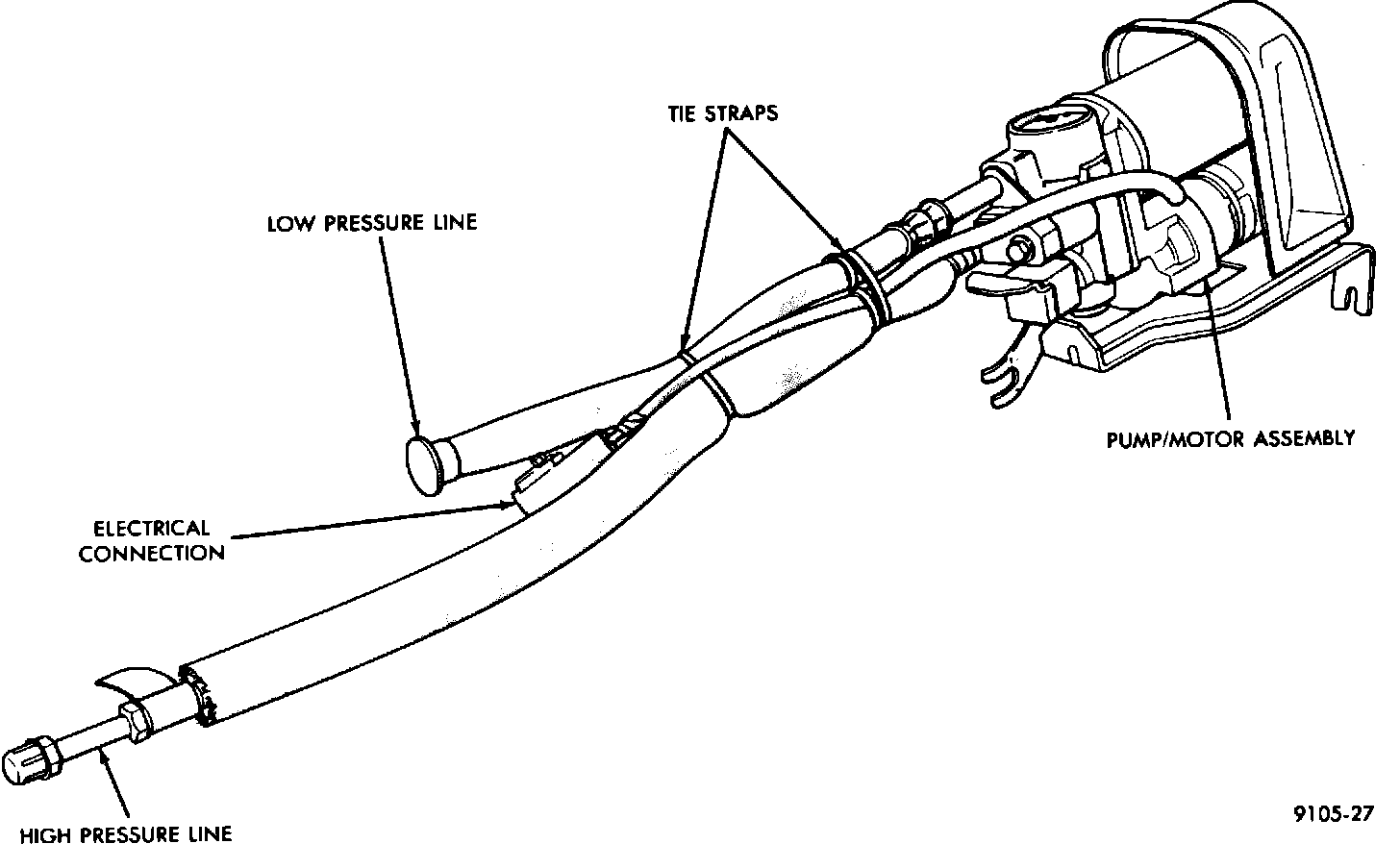

Fig. 4 - Positioning Tie Strap:

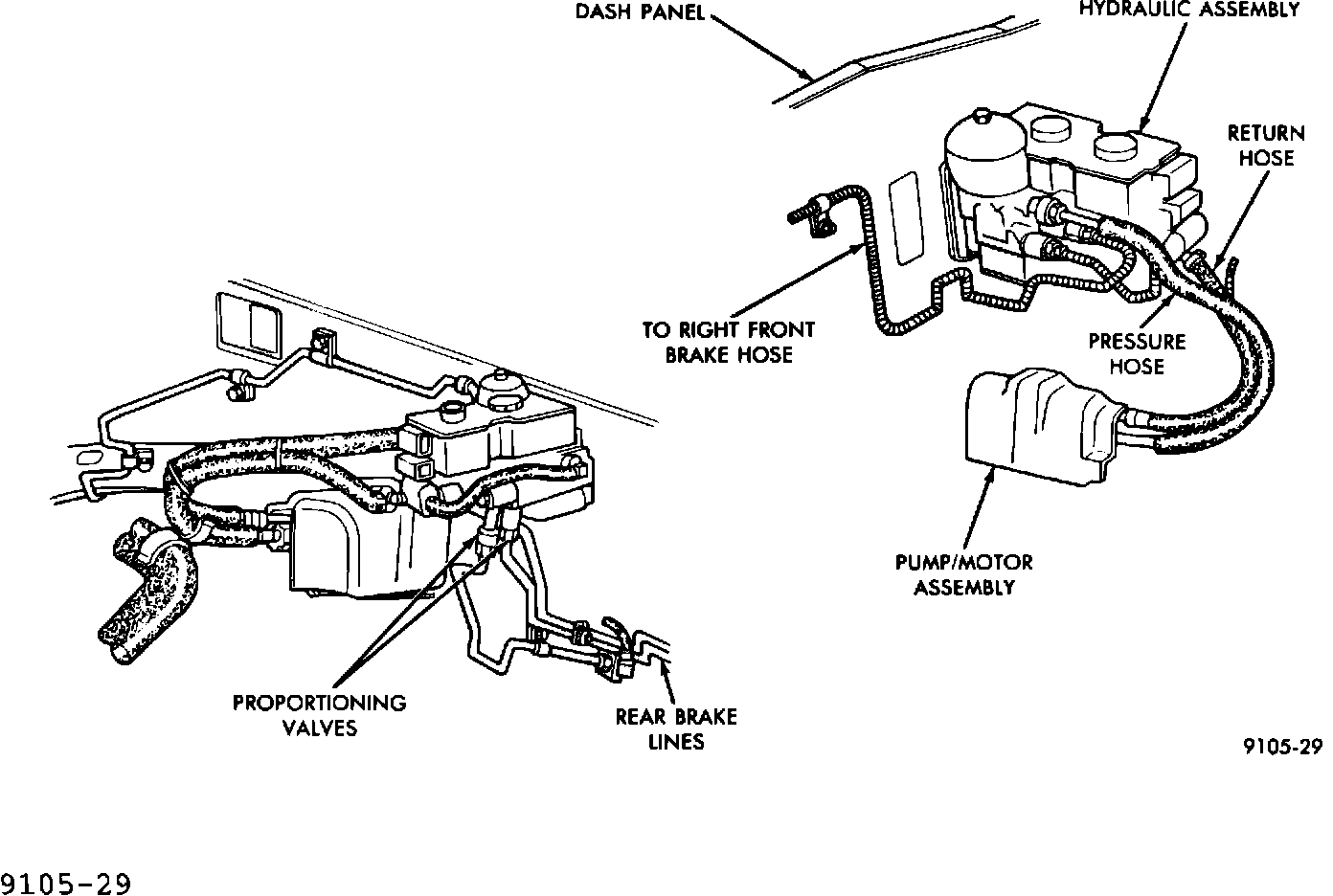

FIG. 5 - Brake Tube and Hose Routing at Hydraulic Assembly:

REMOVAL

(1) Remove pump/motor, see Pump/Motor Service.

(2) Cut the two tie strips that secures the hoses and wiring harness.

(3) Remove banjo bolt from pump/motor and remove hose assemblies.
INSTALLATION

(1) The rubber O-Rings used on the high and low pressure hose connections to the pump/motor assembly should be lubricated with brake fluid prior to connecting hoses to pump/motor assembly.

(2) Position hose assemblies on pump/motor and install banjo bolt. Torque bolt to 10.0 lb.ft. (13.5 N-m).

(3) Carefully route wiring harness along side the hoses.

(4) Install two tie straps around the hoses and wiring harness (Fig. 4).

(5) Install pump/motor assembly, see Pump/Motor Service.
