ABS Braking-Decay Pressure

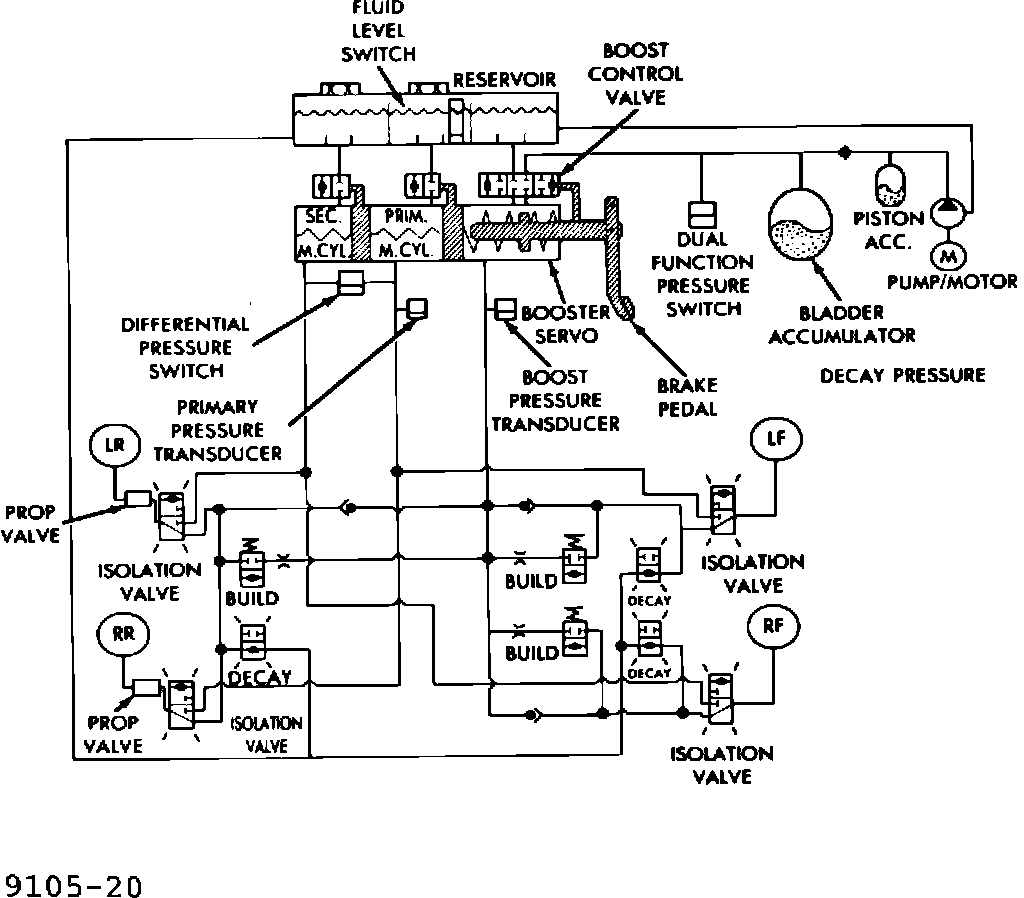

Fig. 15 - Decay Pressure - Hydraulic Control:

ISOLATION VALVES

Closed, isolating the wheel brakes from the master cylinder primary and secondary fluid supplies.

DECAY VALVES

Open, allowing release of fluid pressure through decay valve to the fluid reservoir.

BUILD VALVE

Closed, blocking booster servo circuit fluid to wheel brakes.
