Pump Supply Filter Replacement - AC and AY Body

1. Remove one reservoir cap.

2. With the ignition key in the OFF position, discharge the ABS accumulator pressure by pumping the brake pedal a minimum of 40 times.

3. Install the reservoir cap.





4. Remove the hose clamps and pump supply filter at the front the actuator assembly (Figure 2). Cap the supply hose leading from the actuator assembly. Discard hose clamps and filter.

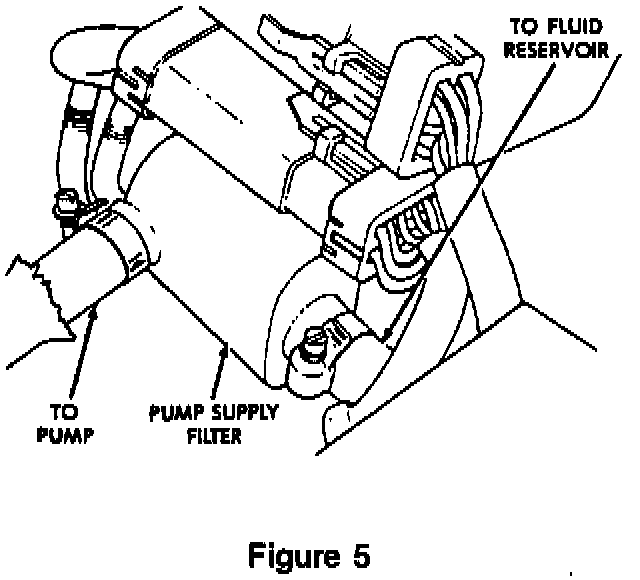

5. Remove and install the new pump supply filter from the clip on the front of the actuator assembly (Figure 5).

6. Remove the cap from the supply hose. Install both hoses onto the pump supply filter and torque clamps to 1.0 - 2.0 N-m (9 - 18 in.lbs.).

7. Turn the ignition key to the ON position and allow the pump to run to purge air from the system. When the pump turns off, turn the ignition key to the OFF position and pump the brake pedal a minimum of 40 times.

8. Check the fluid level in the reservoir and fill, if necessary, using fresh, clean brake fluid such as Mopar or equivalent, conforming to DOT 3 requirements.
