Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Remains Low at Front or Rear, Compressor Operates

Remains Low at Front or Rear, Compressor Operates

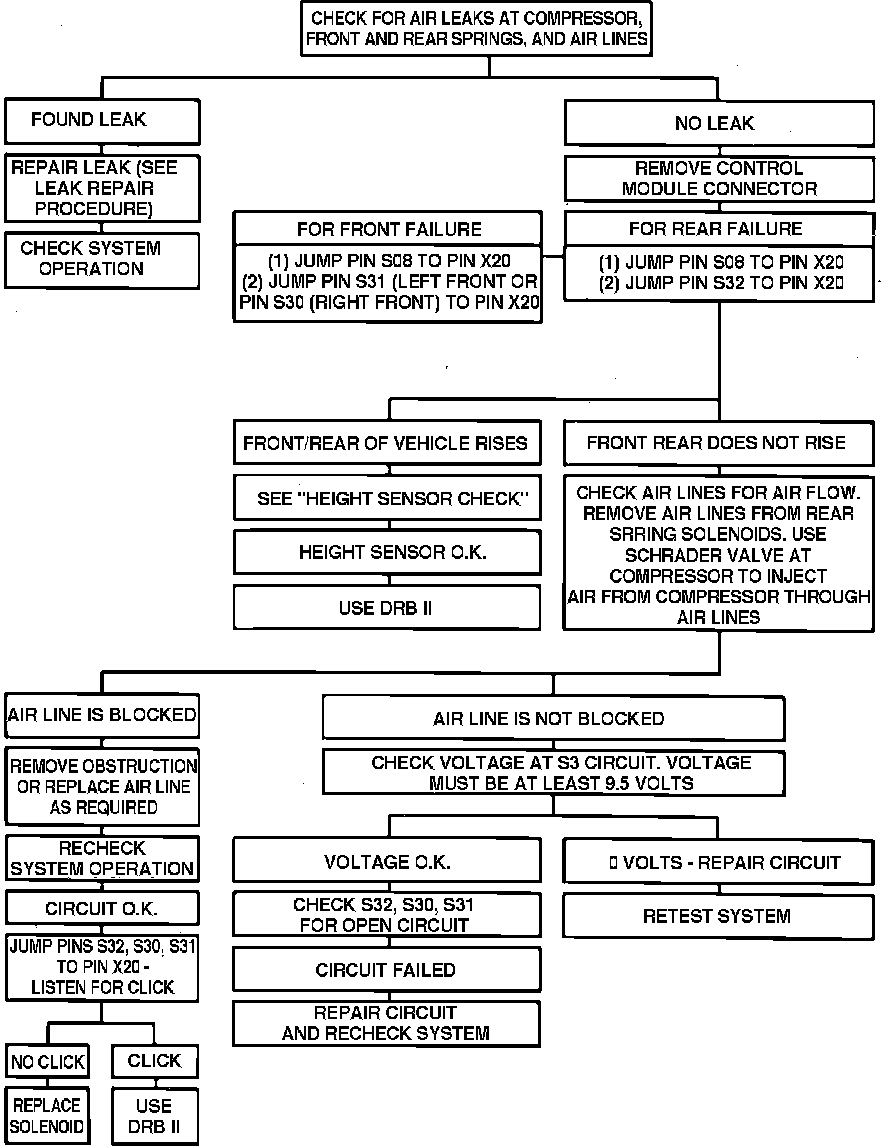

Fig. 7 Troubleshooting. Vehicle Remains Low At Front Or Rear, Fig. 7 Vehicle Remains Low At Front Or Rear, Compressor Operates:
