Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Remains In High Position

Remains In High Position

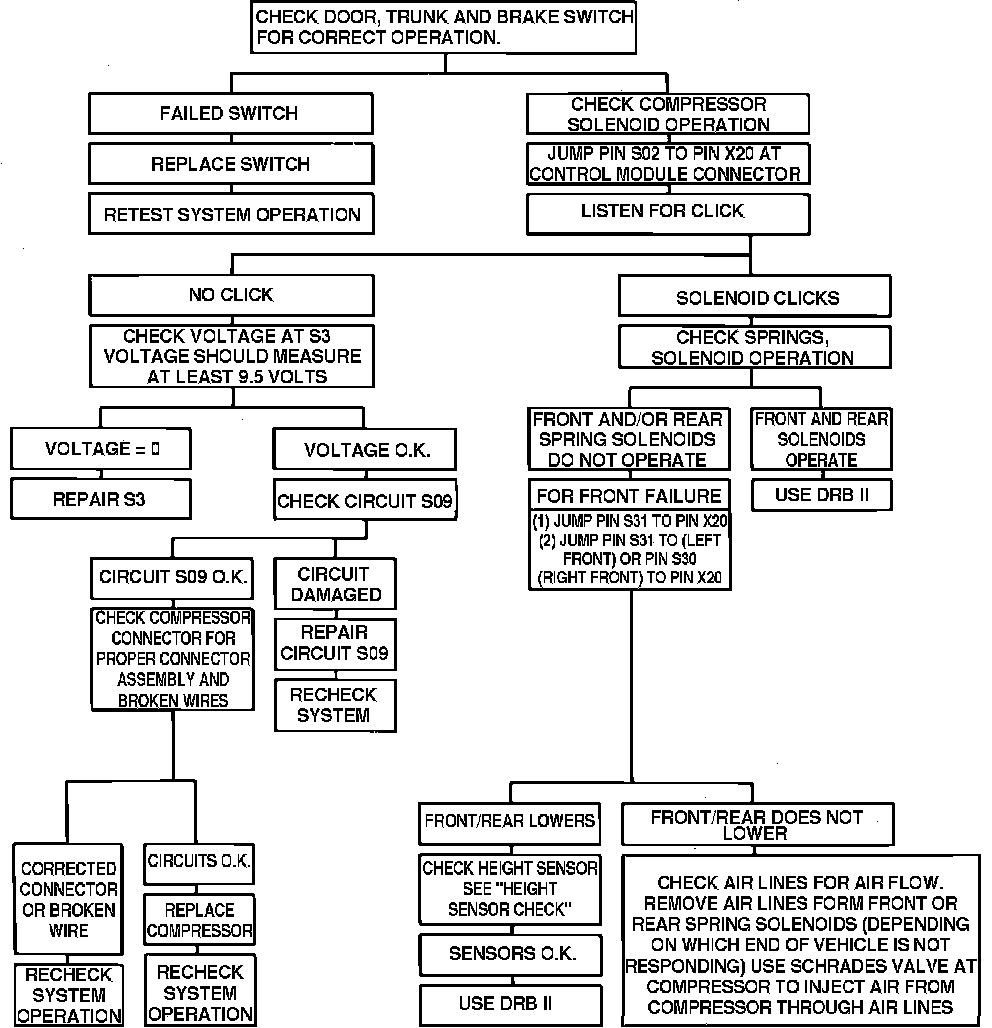

Fig. 6 Troubleshooting. Vehicle Remains In High Position:
