Air Suspension - Diagnostics Manual Revision

90chrysler11 Models

1990 AY Bodies


Subject

Air Suspension Diagnostic Procedure Manual Revision - Height Sensor Circuit


Index

FRONT SUSPENSION


Date

June 4, 1990


No.

02-03-90

(CO2-04-0)
P-1646



BODY CODE LEGEND

AY - IMPERIAL


DIAGNOSTIC PROCEDURES MANUAL REVISION

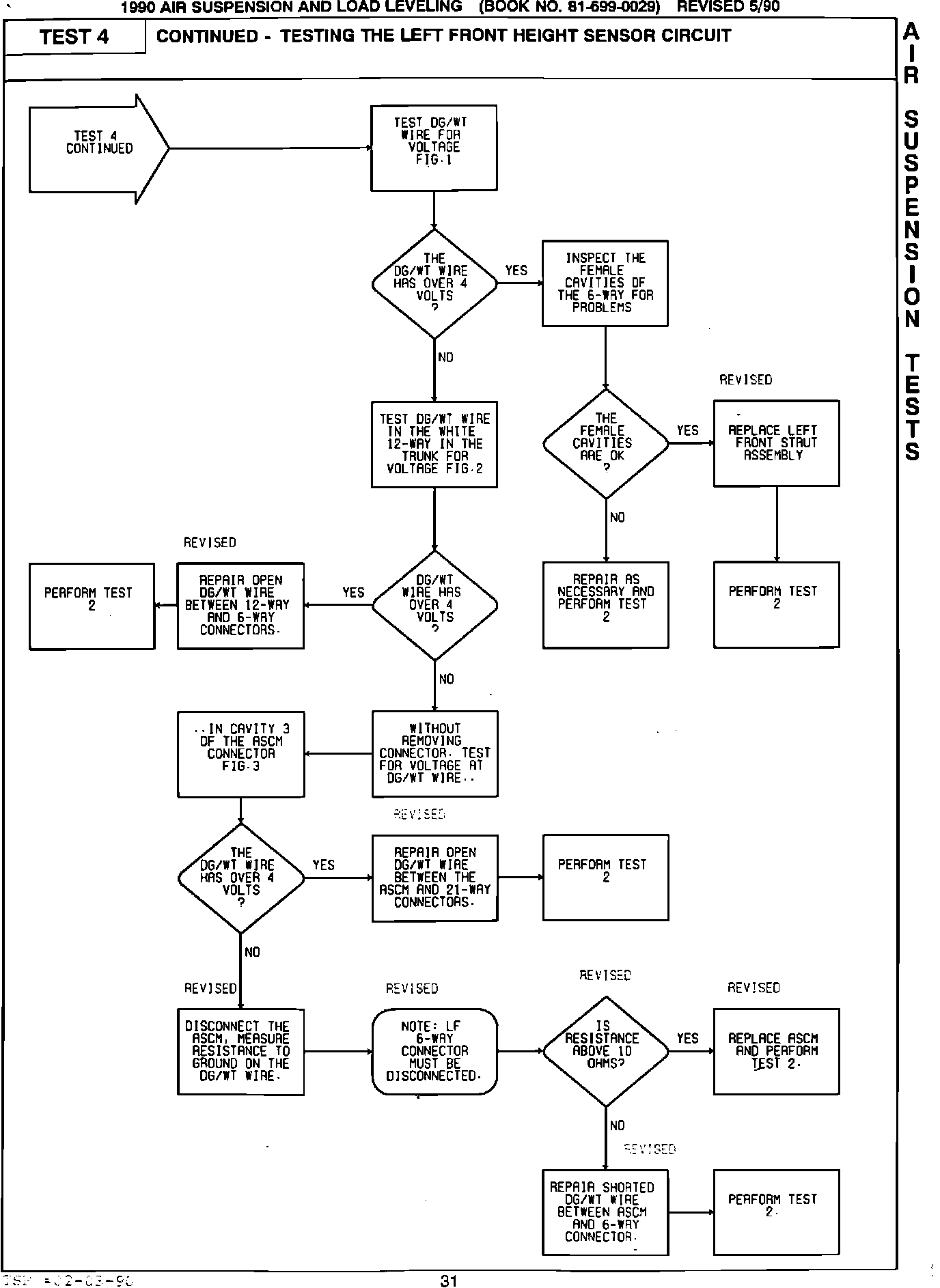

This bulletin is being issued to revise the 1990 Body Diagnostic Procedures Manual (PN 81-699-0029). Please insert the revised page 31 in the subject manual.


POLICY: Information only.
