Air Line: Service and Repair

NOTE: Disconnect battery ground cable before raising vehicle.

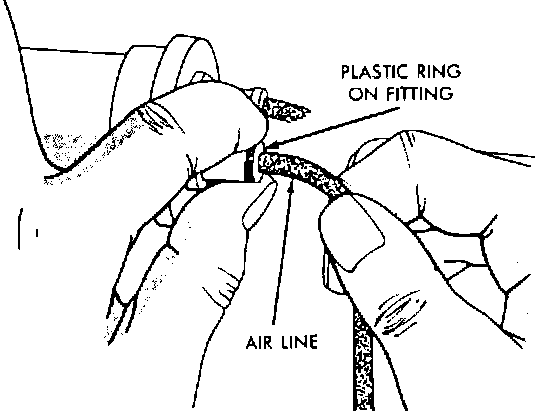

Fig. 47 Releasing Air Line:

1. To release an air line from fitting, pull back on plastic ring, then remove line from fitting.

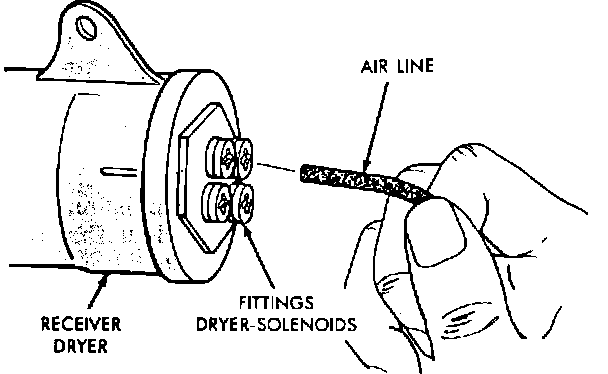

Fig. 48 Attaching Air Line:

2. Air line fittings have a push-in feature. A brass type Colette locks the air line in place. One rubber O-ring seals the air line to prevent leakage. To attach air line, push into fitting.
