Air Lines Operation

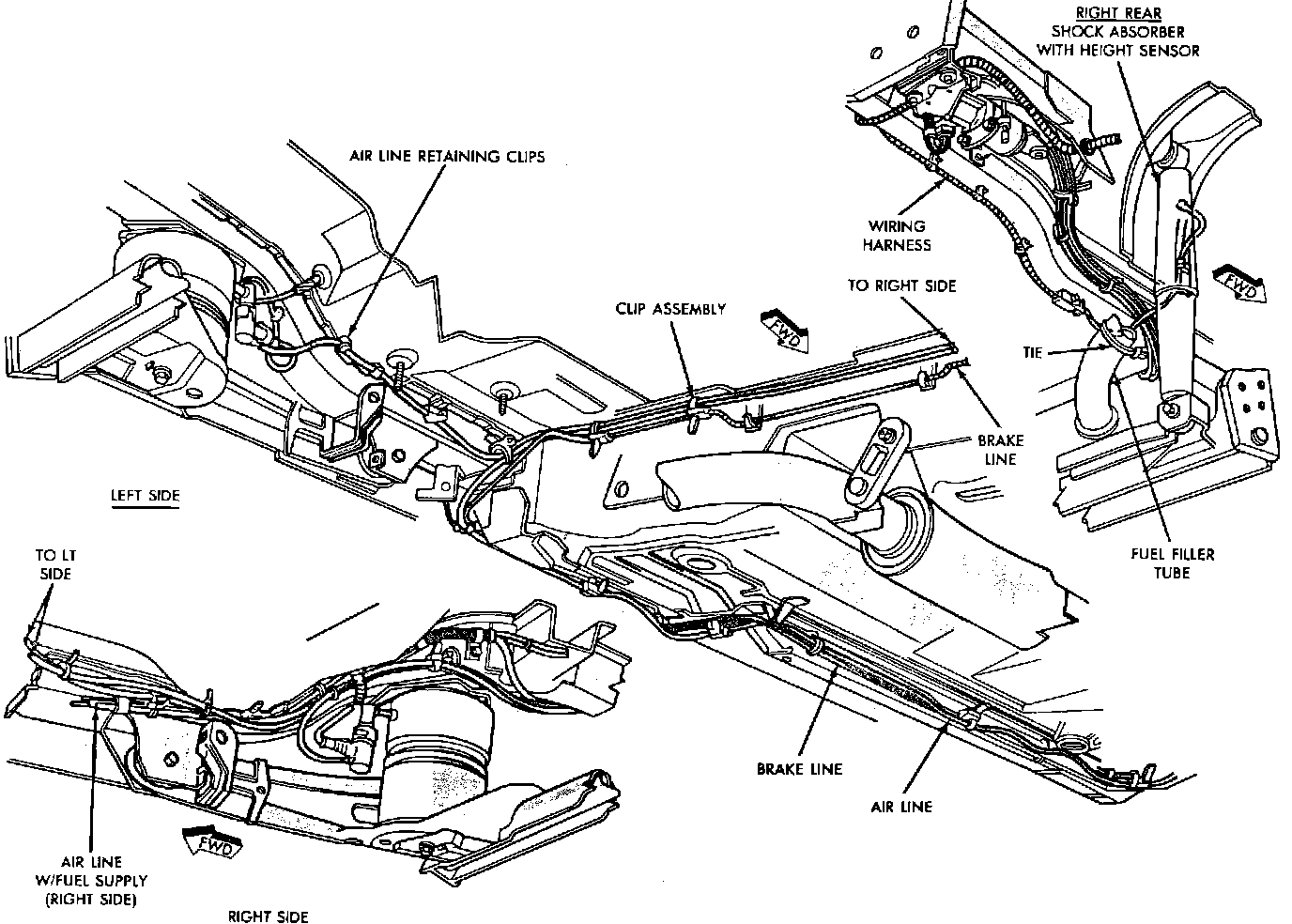

Fig. 4 Front Air Lines:

Fig. 5 Rear Air Lines & Height Sensor:

Four nylon air lines are routed from the compressor air dryer to each strut/spring assembly. Right side strut and air spring air lines are routed with the fuel line. Left side strut and air spring air lines are routed across the vehicle in front of the fuel tank and forward with the fuel line.
