Air Line Fitting Operation

A brass type Colette locks the air line in place.

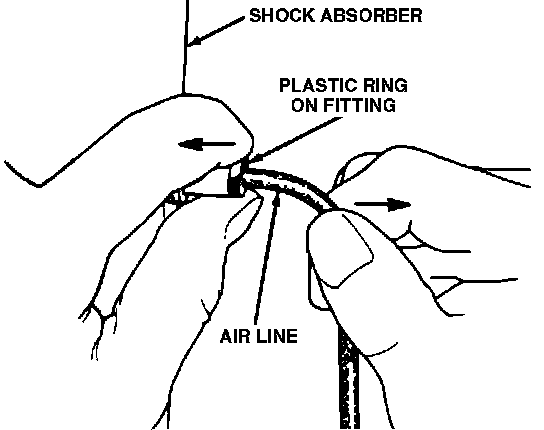

Fig. 2 Removing Air Lines:

To release an air line from its fitting, pull back on plastic ring and pull air line from fitting.

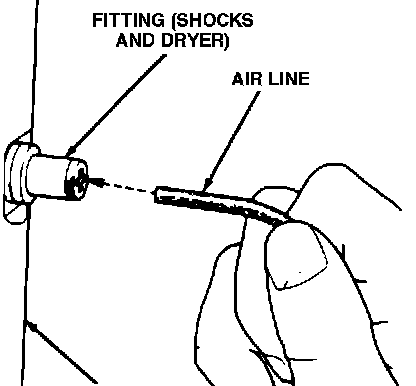

Fig. 3 Installing Air Lines:

To attach air line, ensure rubber O-ring is in place, and push line into fitting.
