Suspension Control Module: Locations

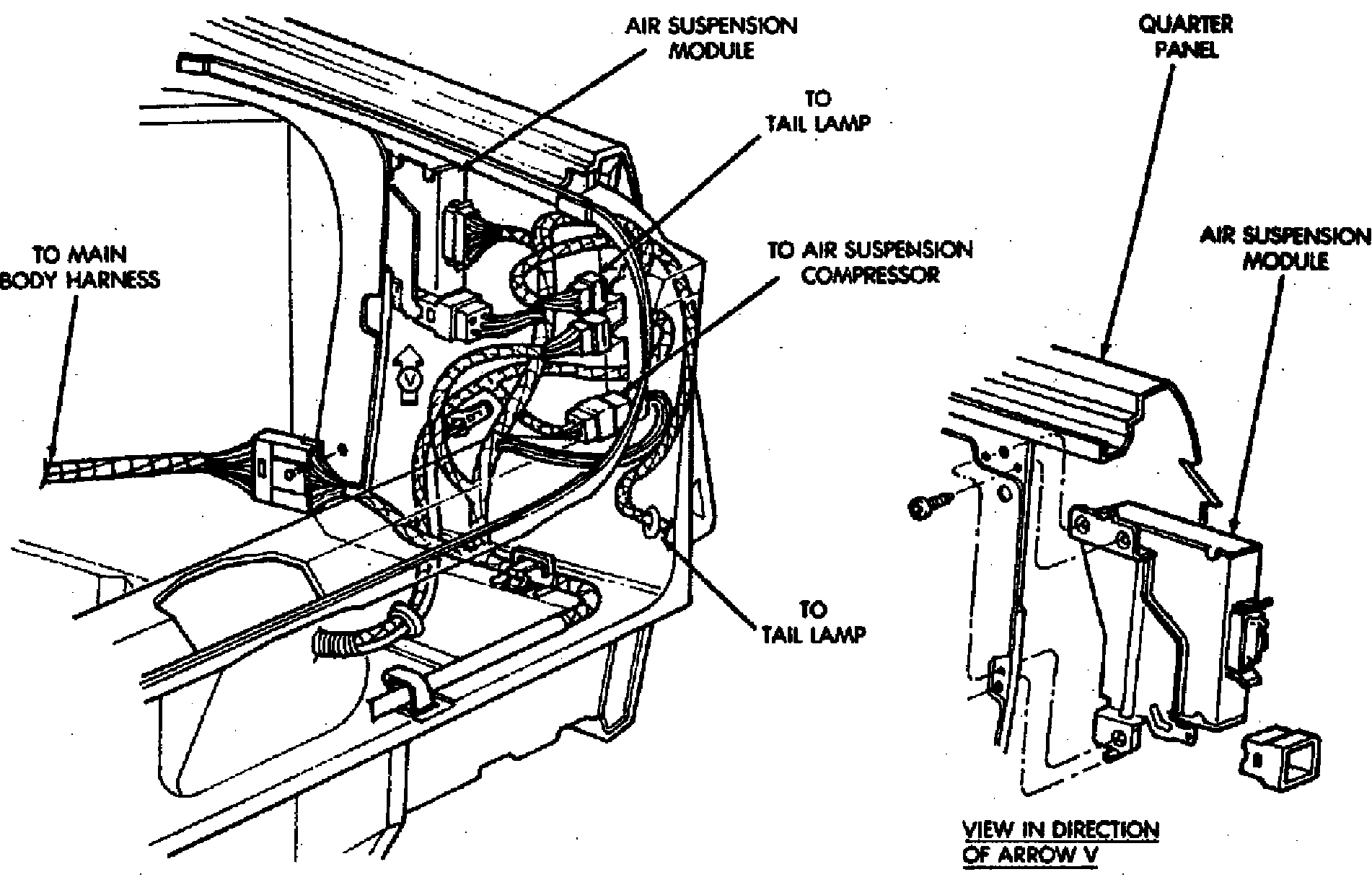

Rear Body Component Location:




On RH Quarter Panel, Behind Tail Lamp Assembly
