Symptom Related Diagnostic Procedures

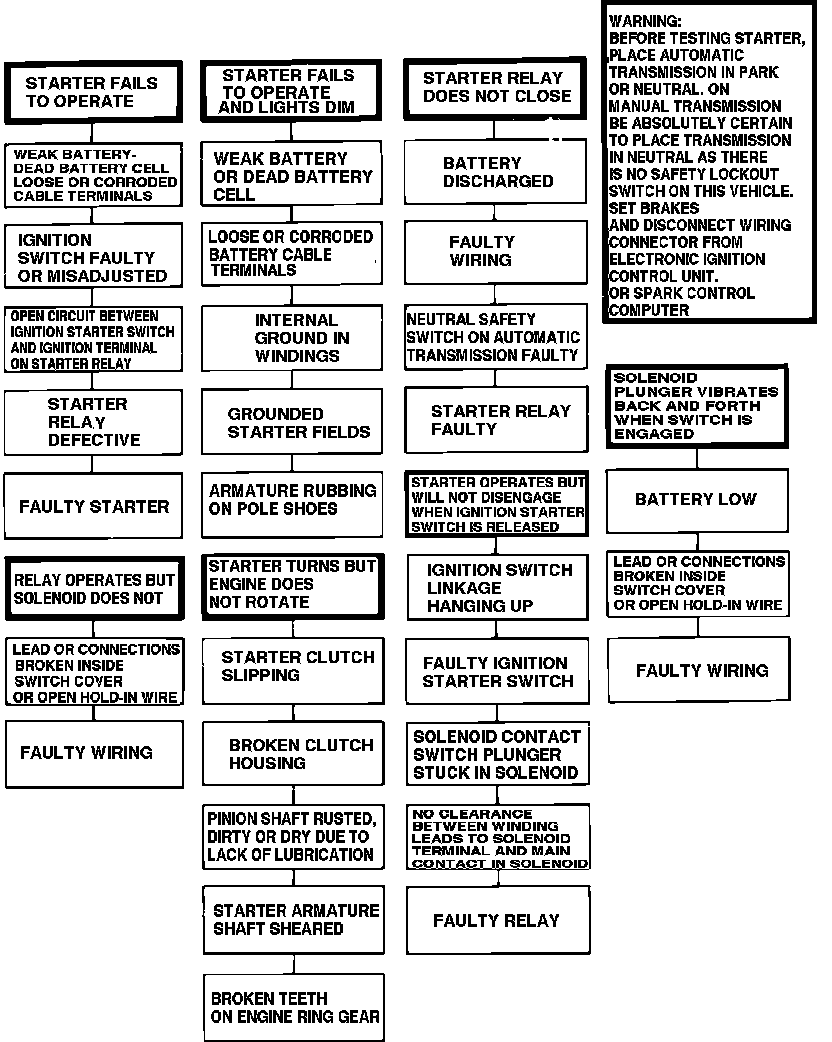

Fig. 2 Starter Motor Troubleshooting:



Fig. 3 Starter Motor Troubleshooting:
