Starter Motor: Description and Operation

Fig. 1 Exploded View Of Nippondenso Direct Drive Starter:

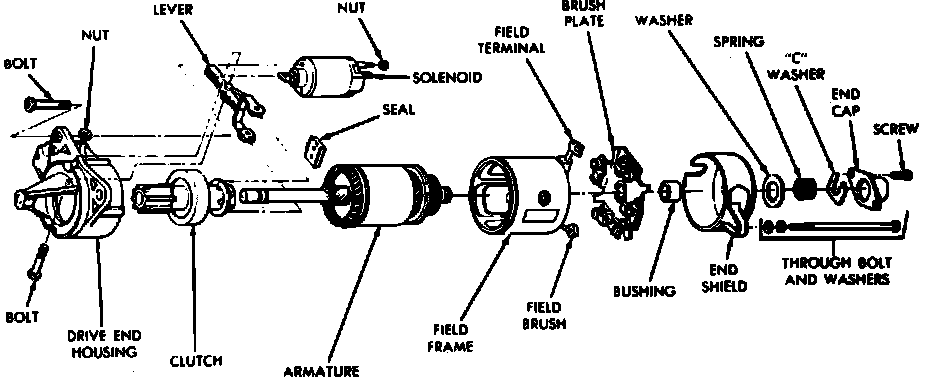

Fig. 2 Exploded View Of Nippondenso Reduction Gear Starter:

Nippondenso starters are either direct drive or gear reduction type starters. A direct drive starter has an overrunning clutch type starter drive with a solenoid switch mounted on the starter motor. The mechanical structure of the gear reduction type starter differs from that of the direct drive type, but the electrical wiring is the same for both types.
