Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Power Steering Pump
Power Steering Pump

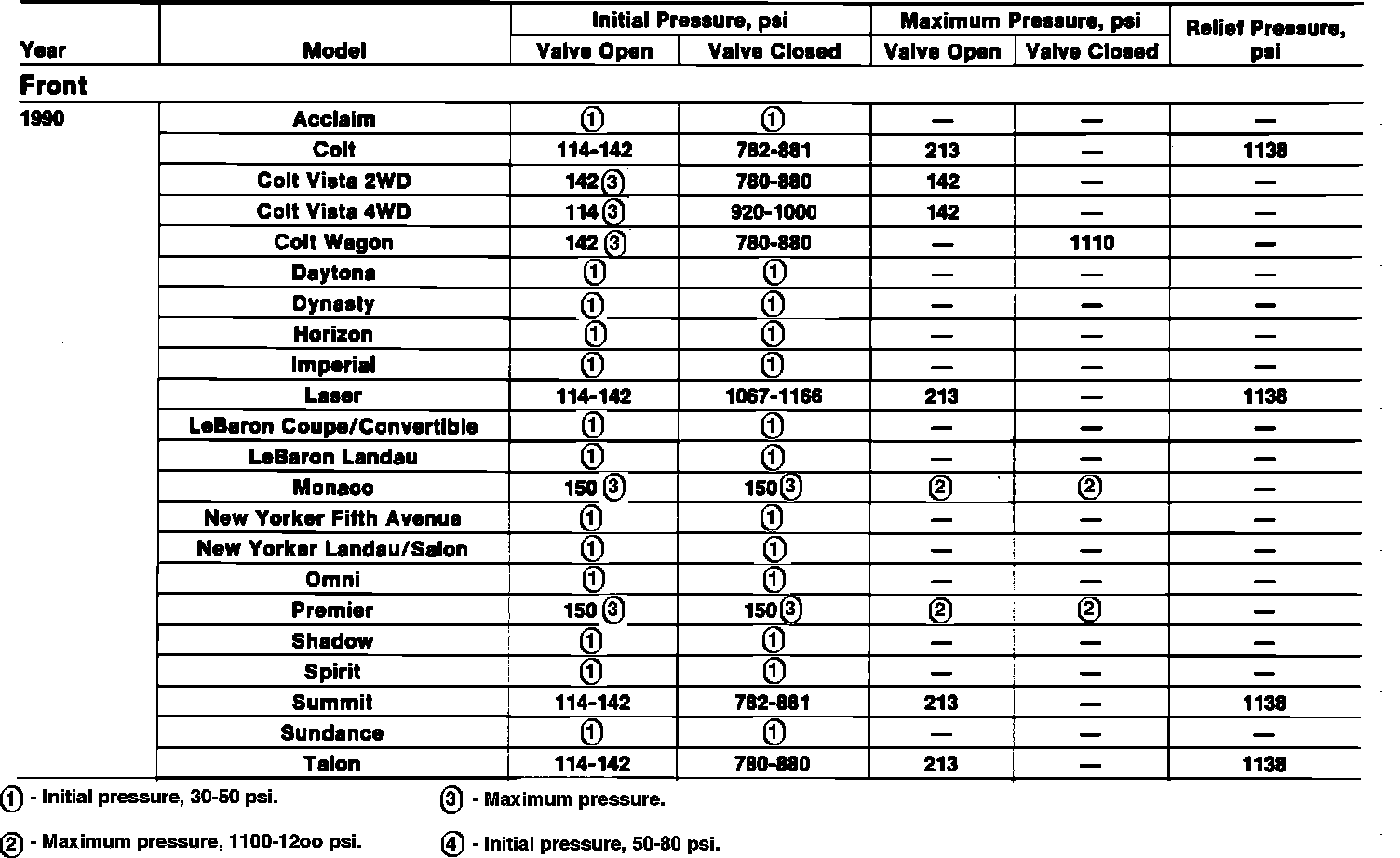

Power Steering Pressure Specifications (part 1 Of 3):
