High Pressure Sensor / Switch: Service and Repair

REMOVAL AND INSTALLATION
1. Discharge the refrigerant system.

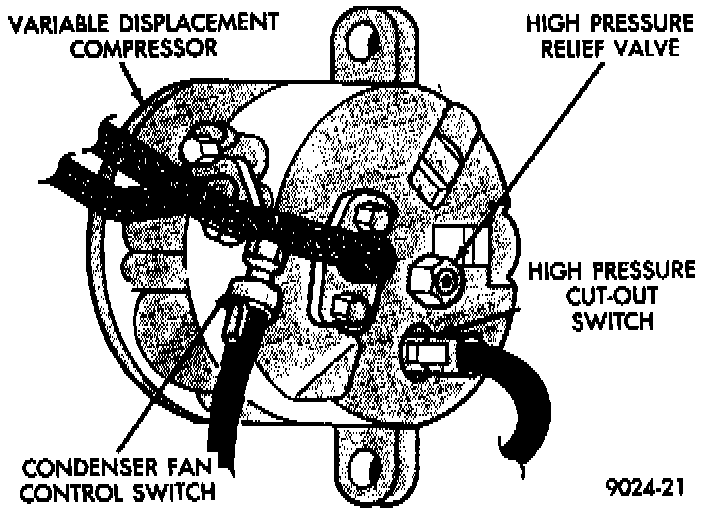

High Pressure Cut-off Switch:

2. Disconnect wire connector from the high pressure cut-out switch.

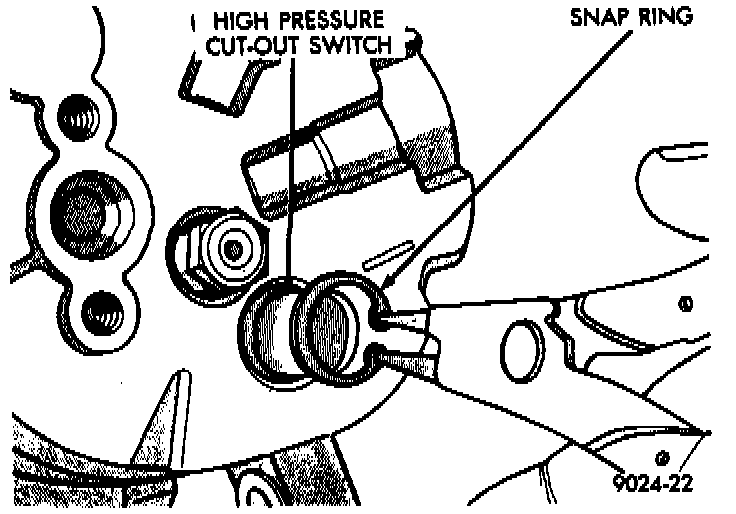

Snap Ring:

3. Remove snap ring securing switch in compressor end cover.

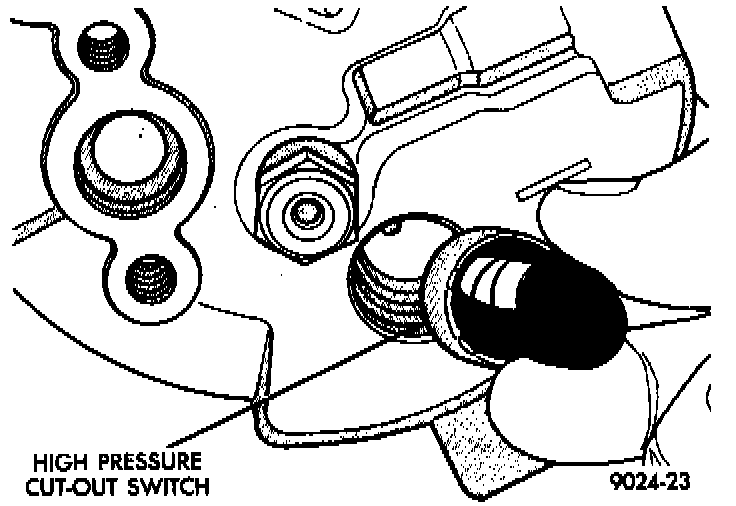

High Pressure Cut-out Switch:

4. Pull switch straight out from end cover and remove and discard used 0-ring seal.

To install, reverse the preceding operation using a new 0-ring seal. Evacuate and charge the refrigerant system.
