Compressor/Pump Relay: Service and Repair

REMOVAL

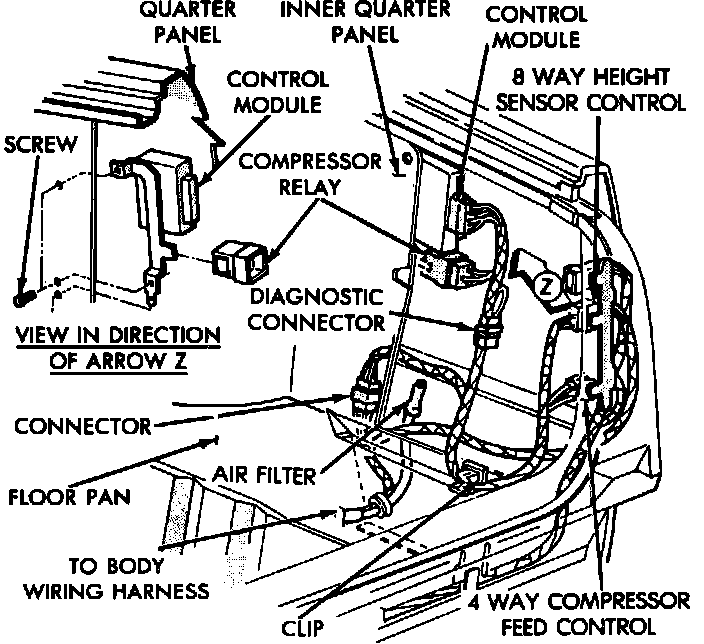

Fig. 30 Control Module & Compressor Relay Wiring:

1. Disconnect battery negative cable, then remove trim panel from RH side of trunk.
2. Disconnect electrical connector and relay from control module.
3. Remove control module mounting screws, then the assembly.

INSTALLATION

1. Install relay on control module bracket, then place control module on bracket and install screws. Torque screws to 19-29 lb-in.
2. Connect relay and module electrical connectors, then replace trim panel.
