Polarity Protection Relay: Locations

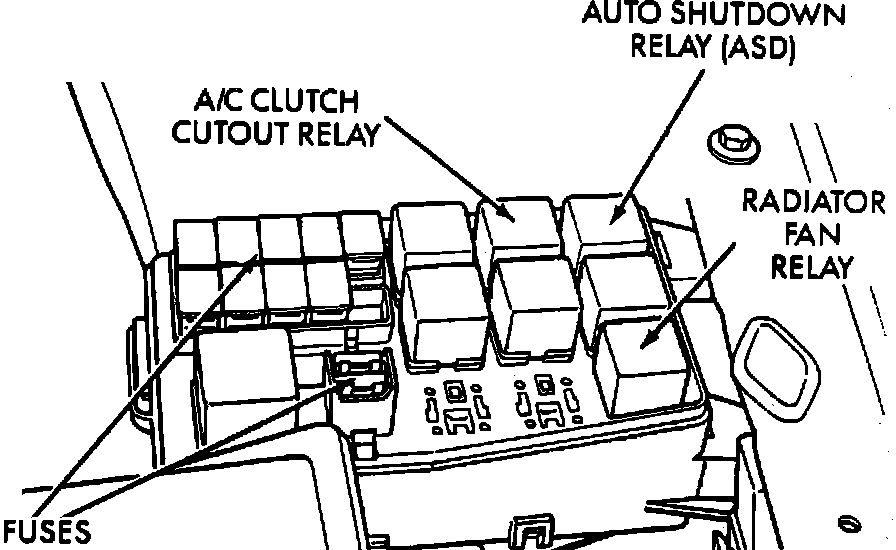

Relay Location:

The Auto Shut Down (ASD) relay is located in the power distribution center, next to the left strut tower.
