Fuel Accumulator: Description and Operation

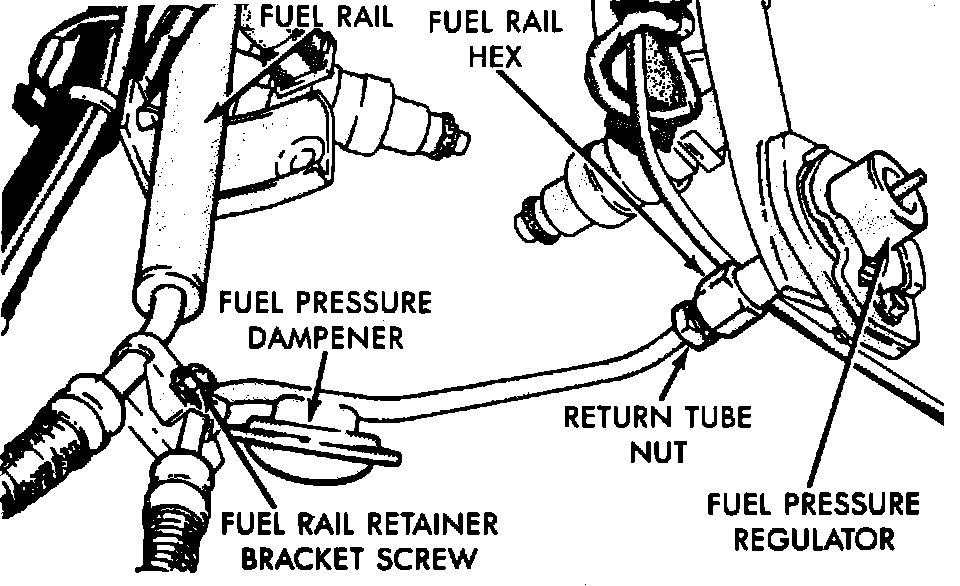

Fuel Pressure Dampener:

The fuel pressure dampener, located downstream from the fuel pressure regulator, dampens fuel pressure pulsations at the injectors caused by the opening and closing of the injectors. The dampener is an internal rubber diaphragm with a pocket of air behind it.
