NS-9 Repairing "Ignition Coil CKT" Fault
NS-9 Repairing "Ignition Coil CKT" Fault

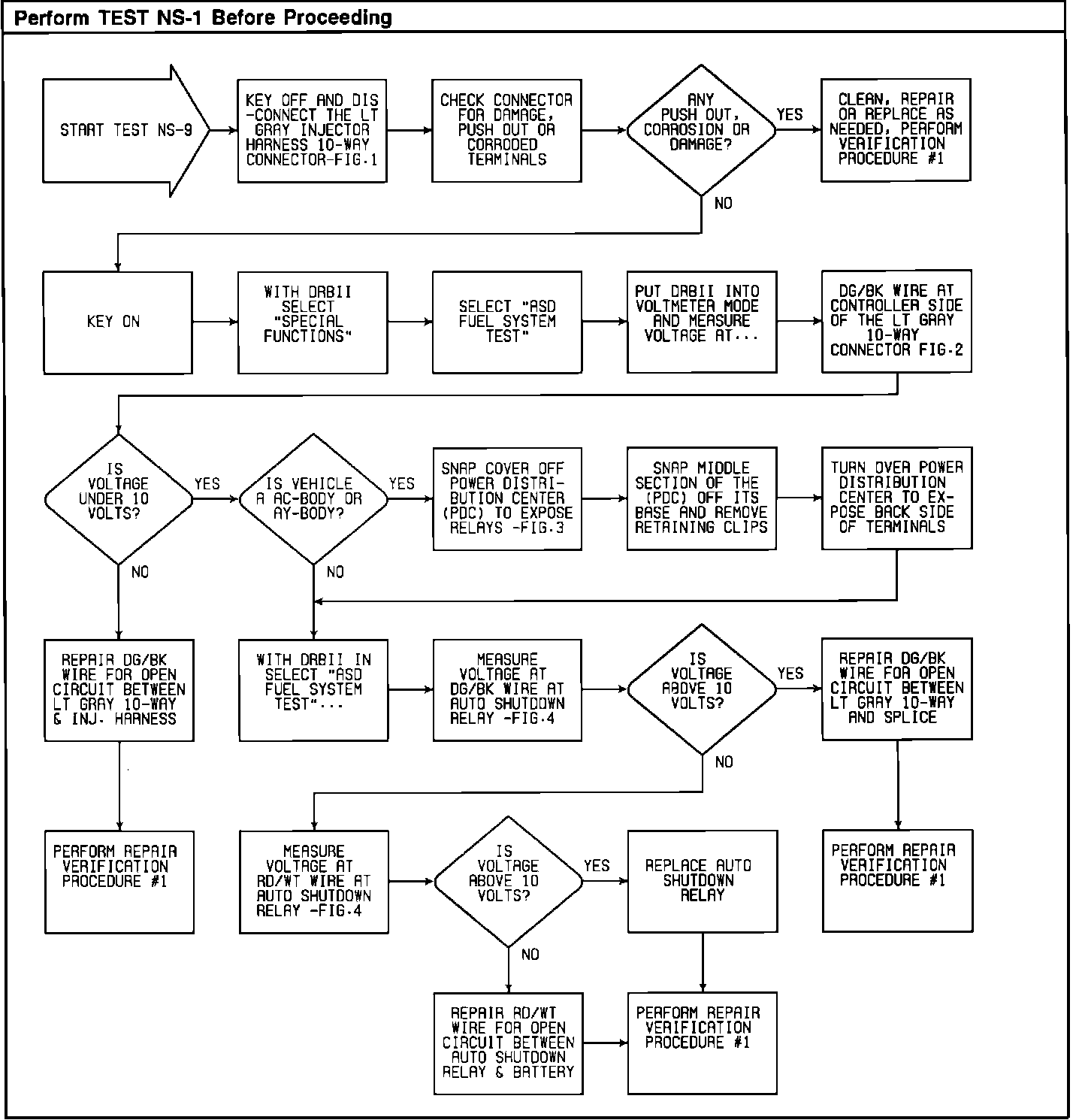

Test NS-9 - Repairing Fault Message "Ignition Coil Circuit", Checking Power Feed To Injectors And DIS:

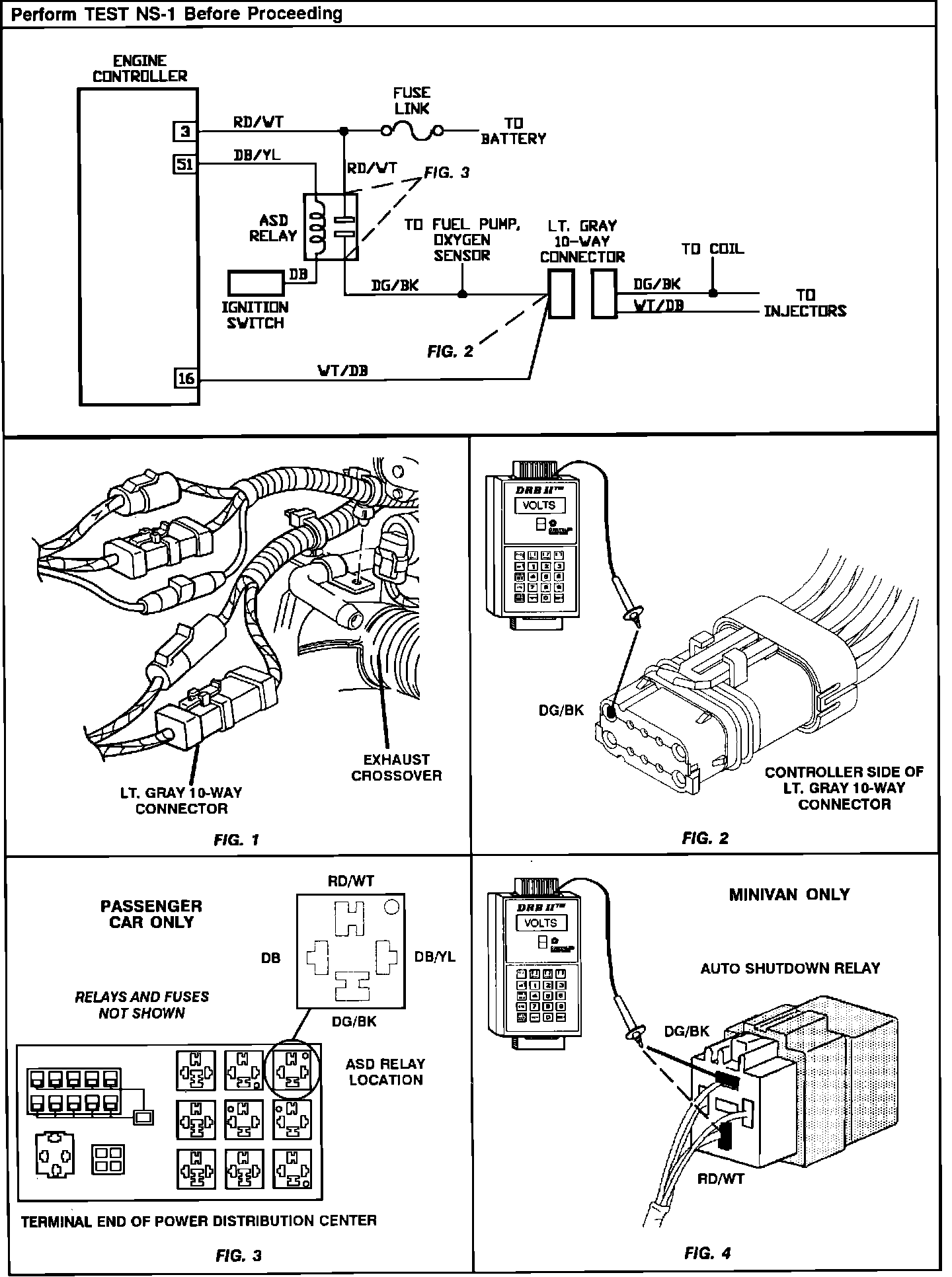

Test NS-9 - Repairing Fault Message "Ignition Coil Circuit", Checking Power Feed To Injectors And DIS:
