Part 1 of 2

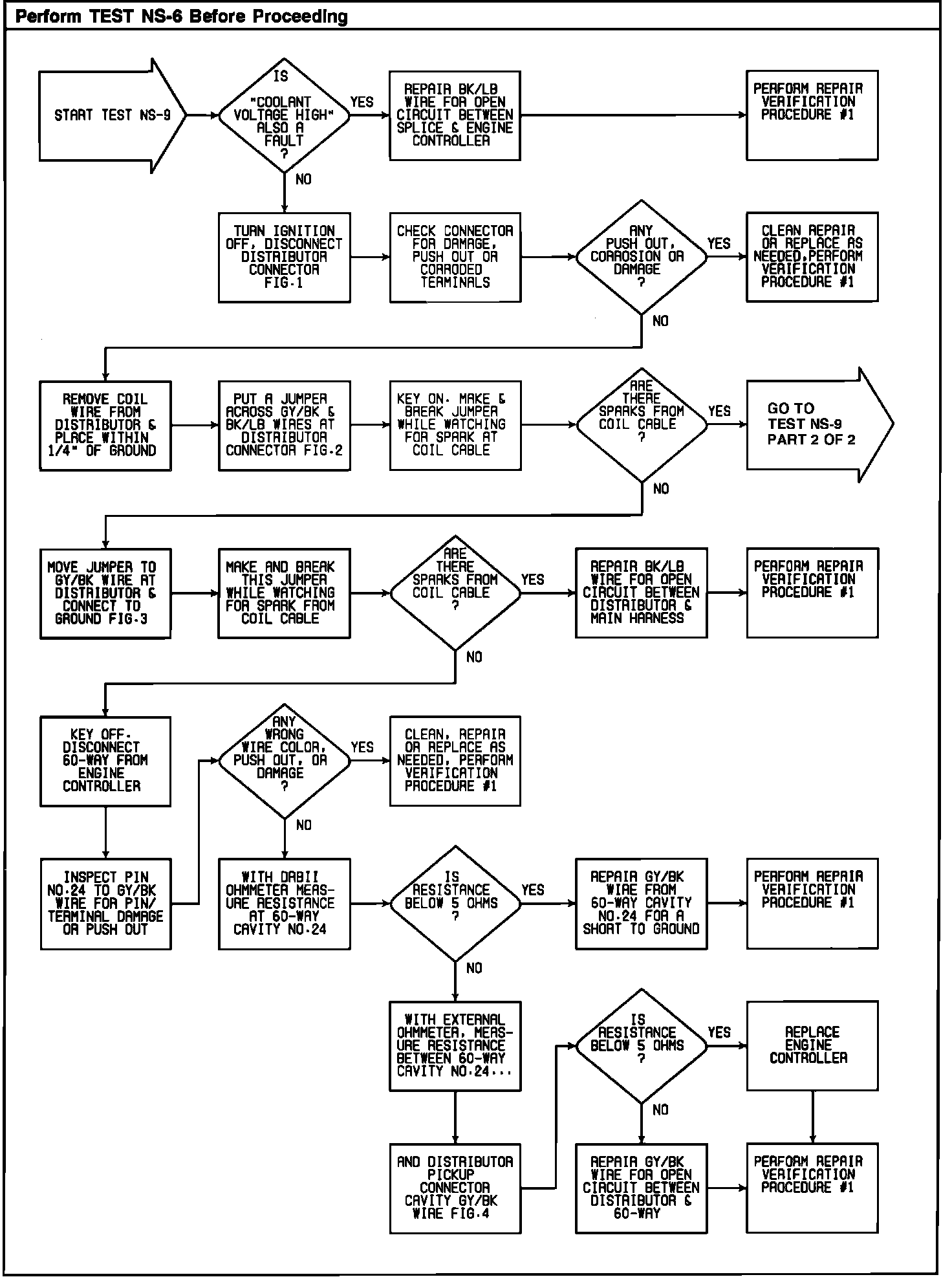

Test NS-9 - Checking Fault "Ignition Reference Signal":

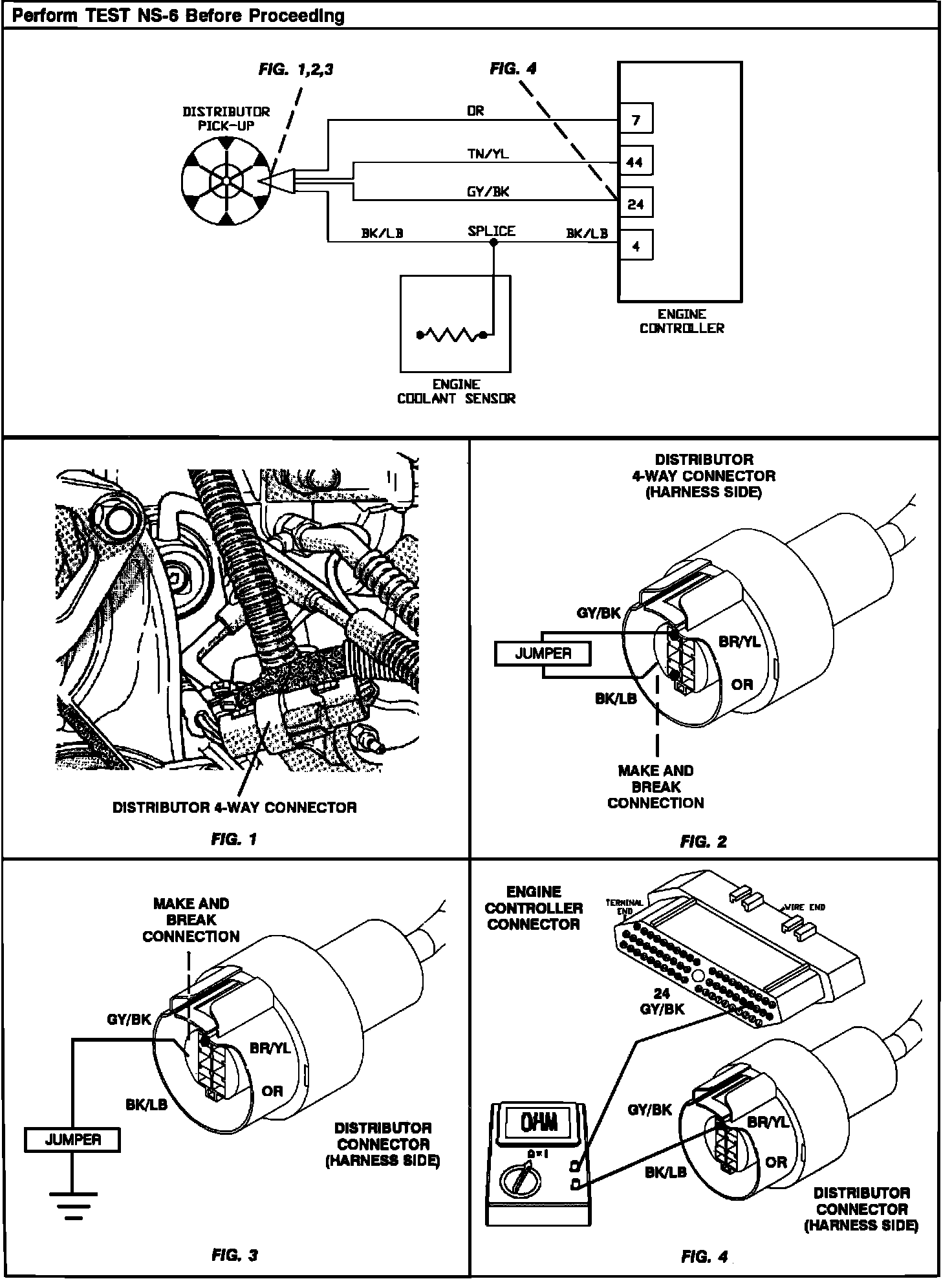

Test NS-9 - Checking Fault "Ignition Reference Signal":
