NS-8 Checking For High Fuel Pressure In Fuel System
NS-8 Checking For High Fuel Pressure In Fuel System

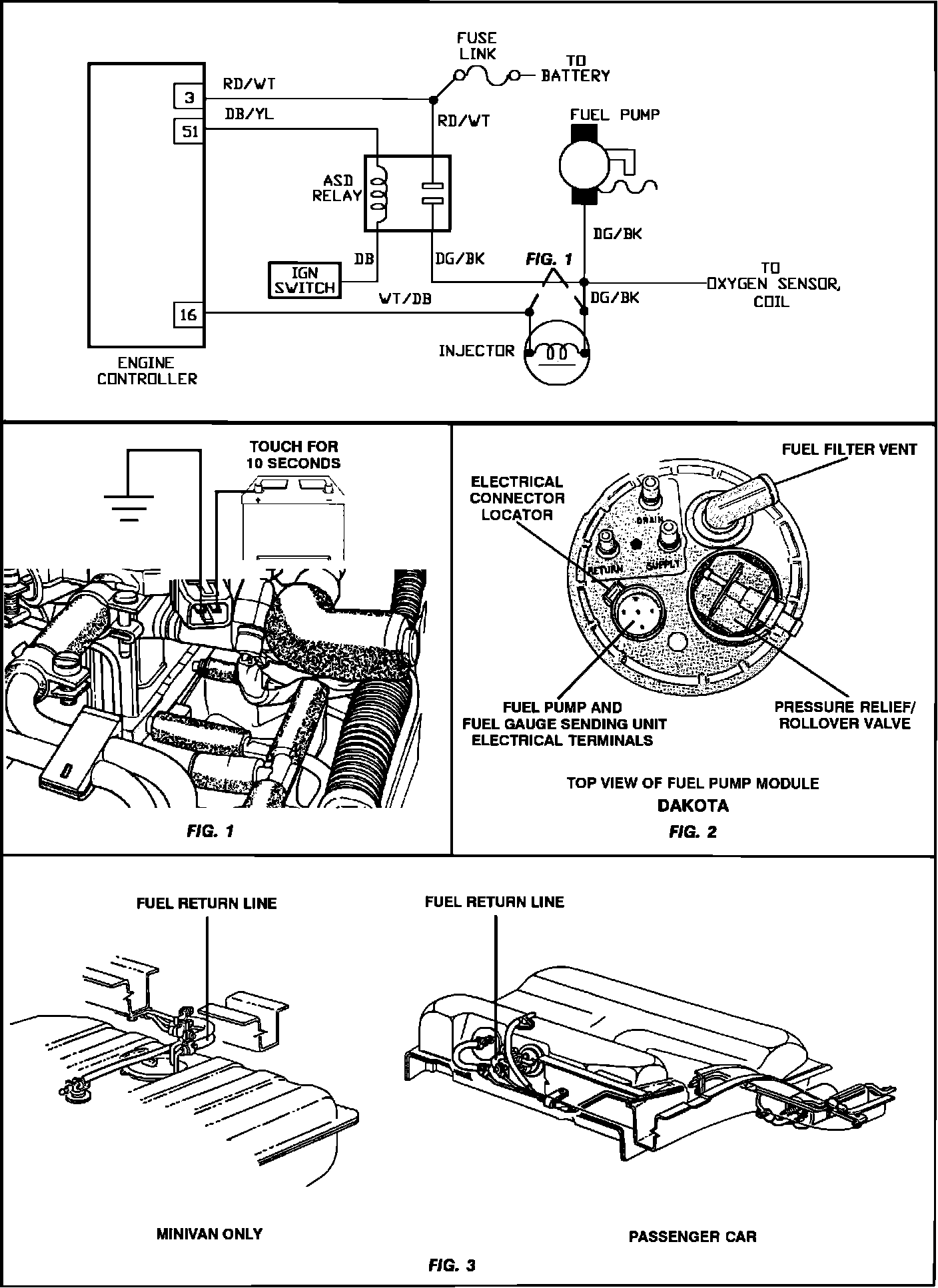

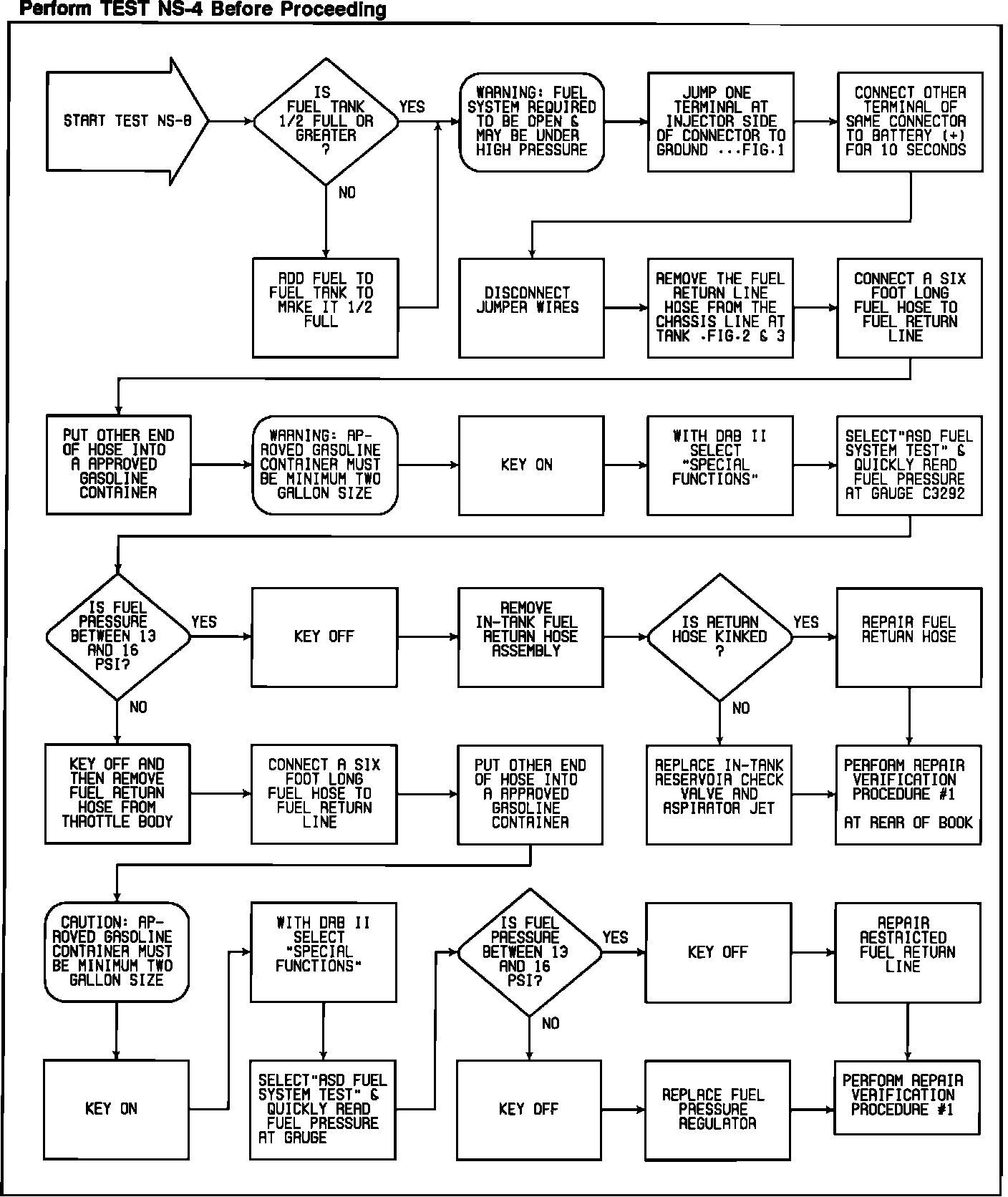

Test NS-8 - Checking For High Fuel Pressure At Pressrue Regulator and Fuel Tank:
Test NS-8 - Checking For High Fuel Pressure At Pressrue Regulator and Fuel Tank:
