Part 2 of 2

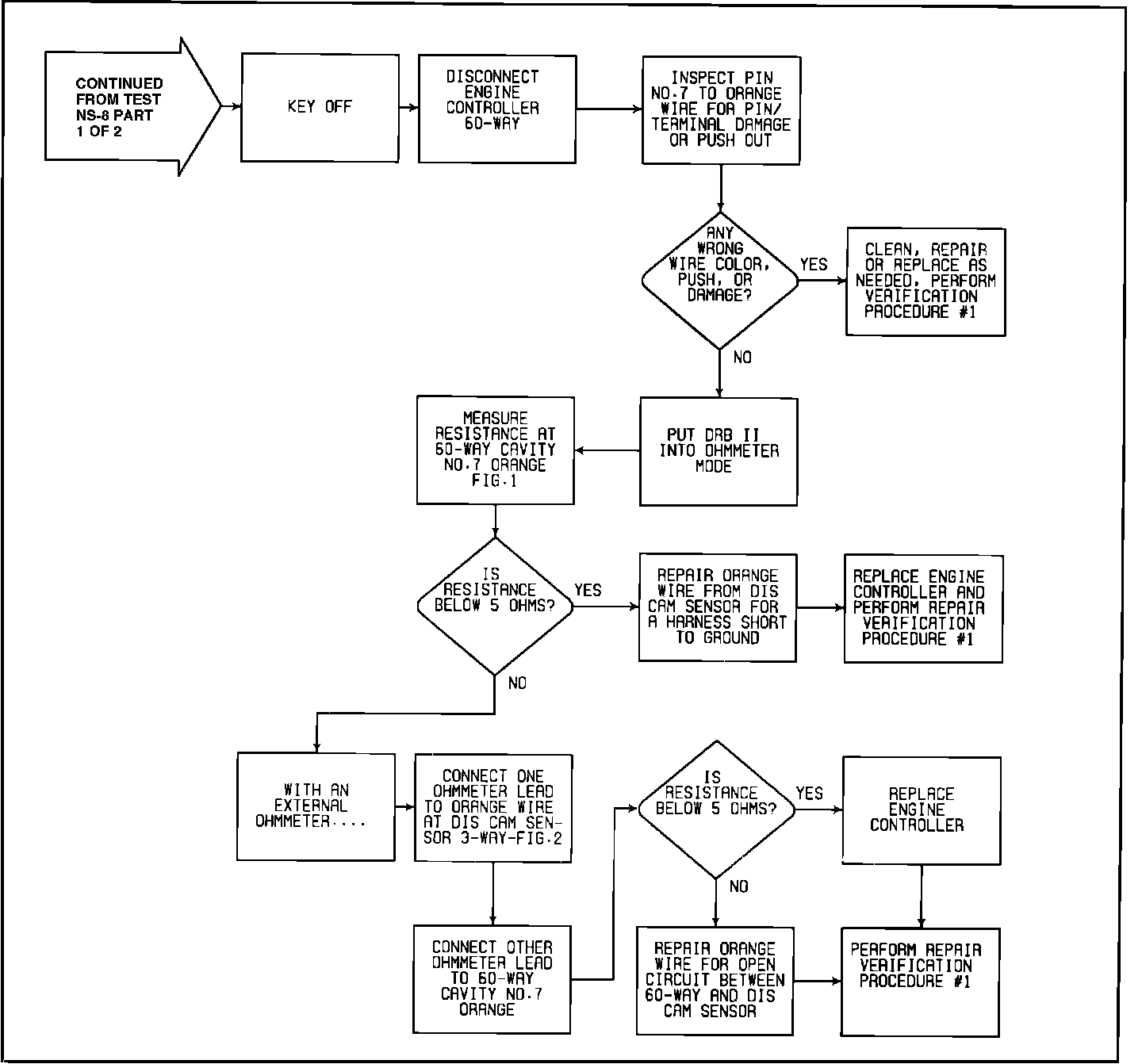

Test NS-8 - Checking DIS Camshaft And Crankshaft Sensor Circuit:

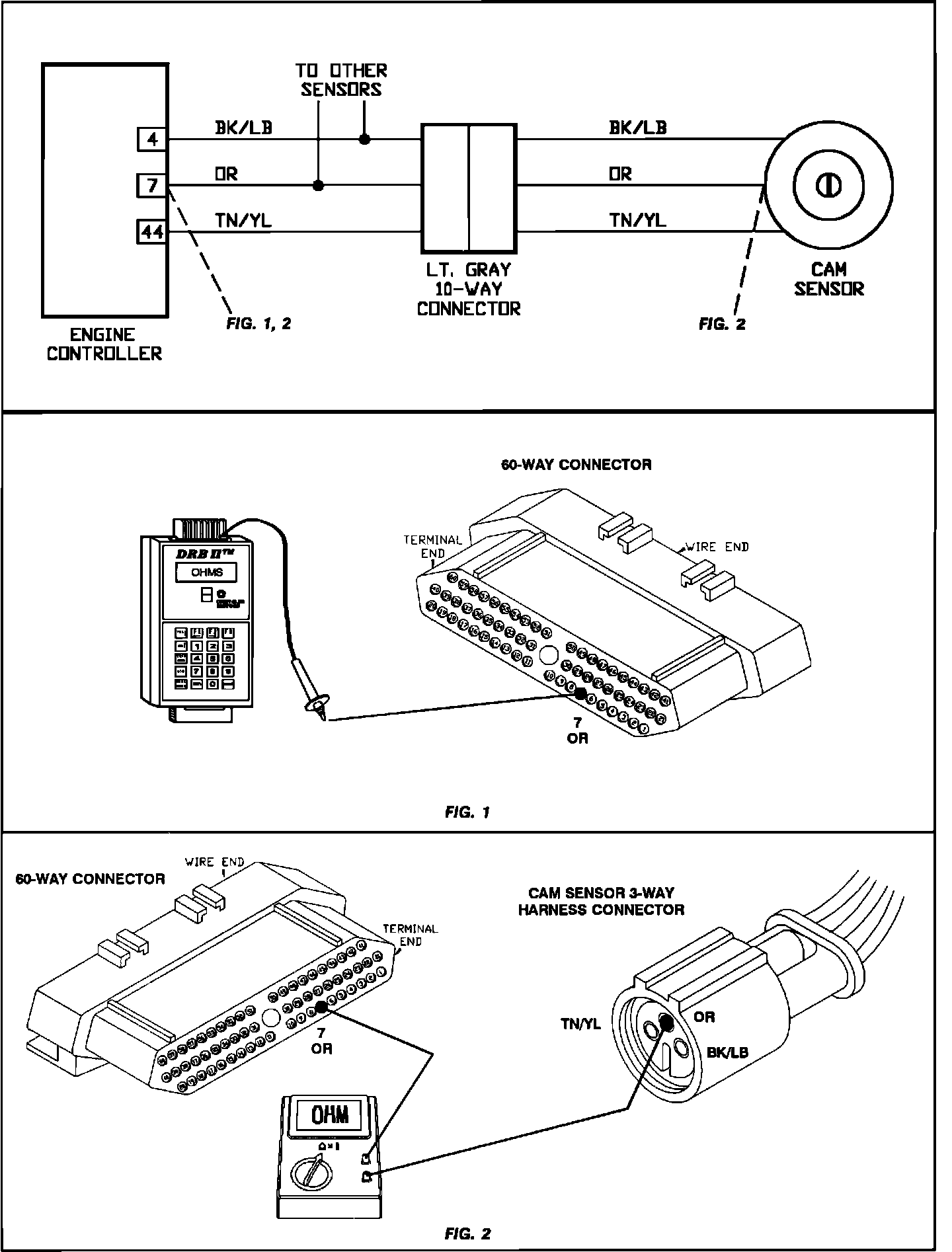

Test NS-8 - Checking DIS Camshaft And Crankshaft Sensor Circuit:
