No Start Test
>>
No Start (NS) Tests
>>
NS-7 Checking For Restriction In Fuel System
>>
Part 1 of 2
Part 1 of 2

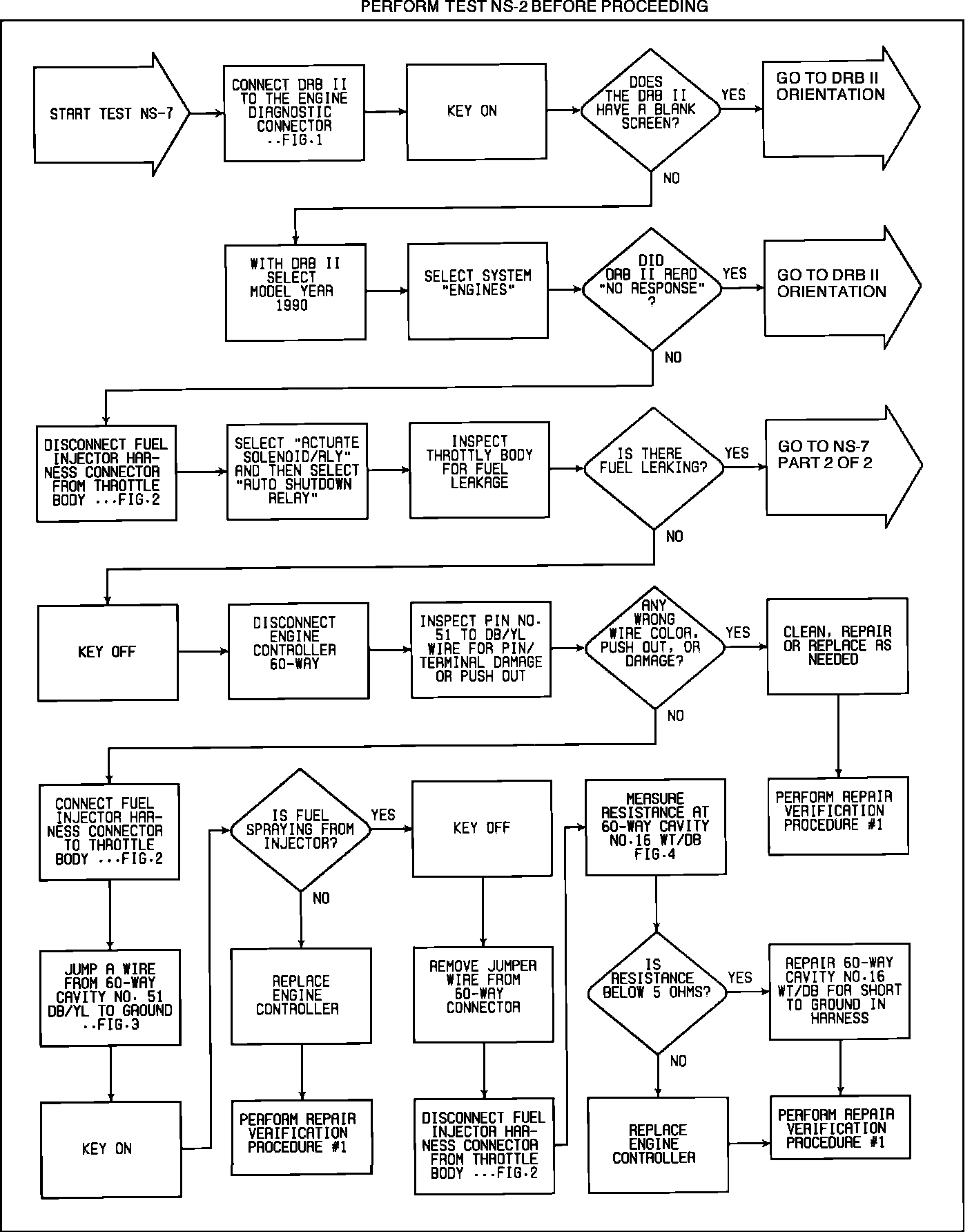

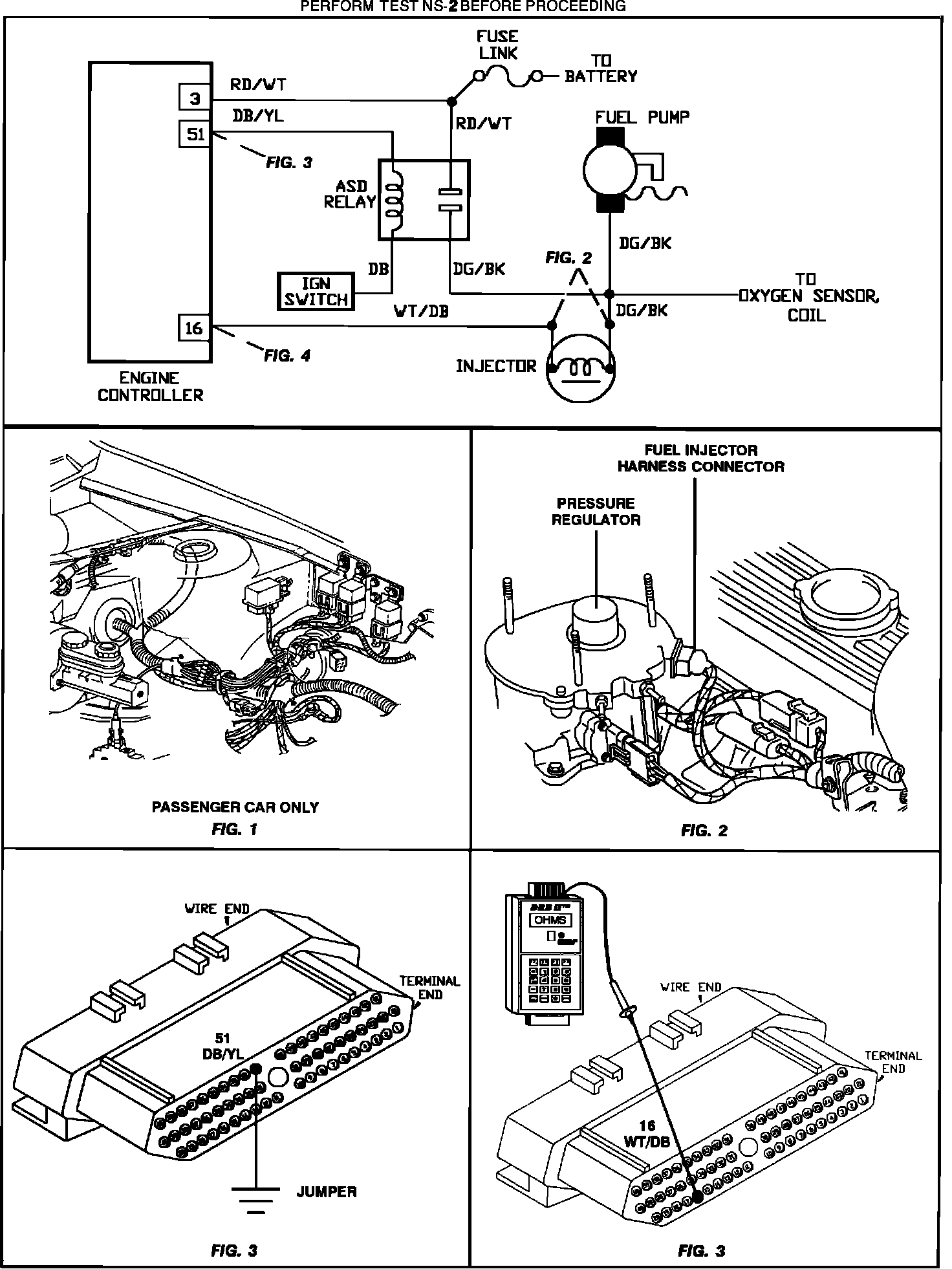

Test NS-7 - Checking For Flooding Fuel Injector, Kinked Fuel Lines, And Pressure Regulator:
Test NS-7 - Checking For Flooding Fuel Injector, Kinked Fuel Lines, And Pressure Regulator:
