Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-7 Checking DIS Camshaft Sensor >> Part 1 of 3

Part 1 of 3

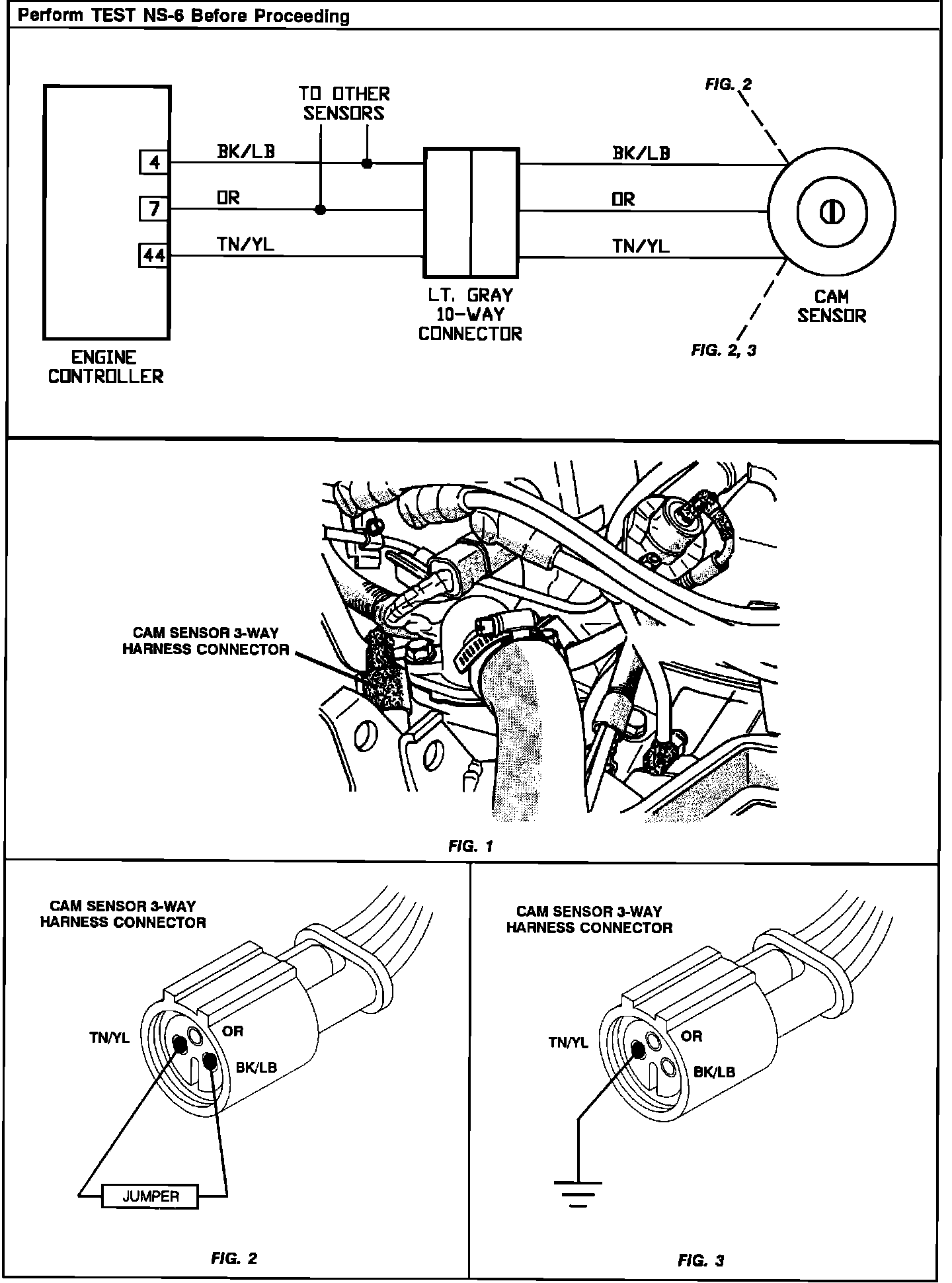

Test NS-7 - Checking DIS Camshaft Sensor:

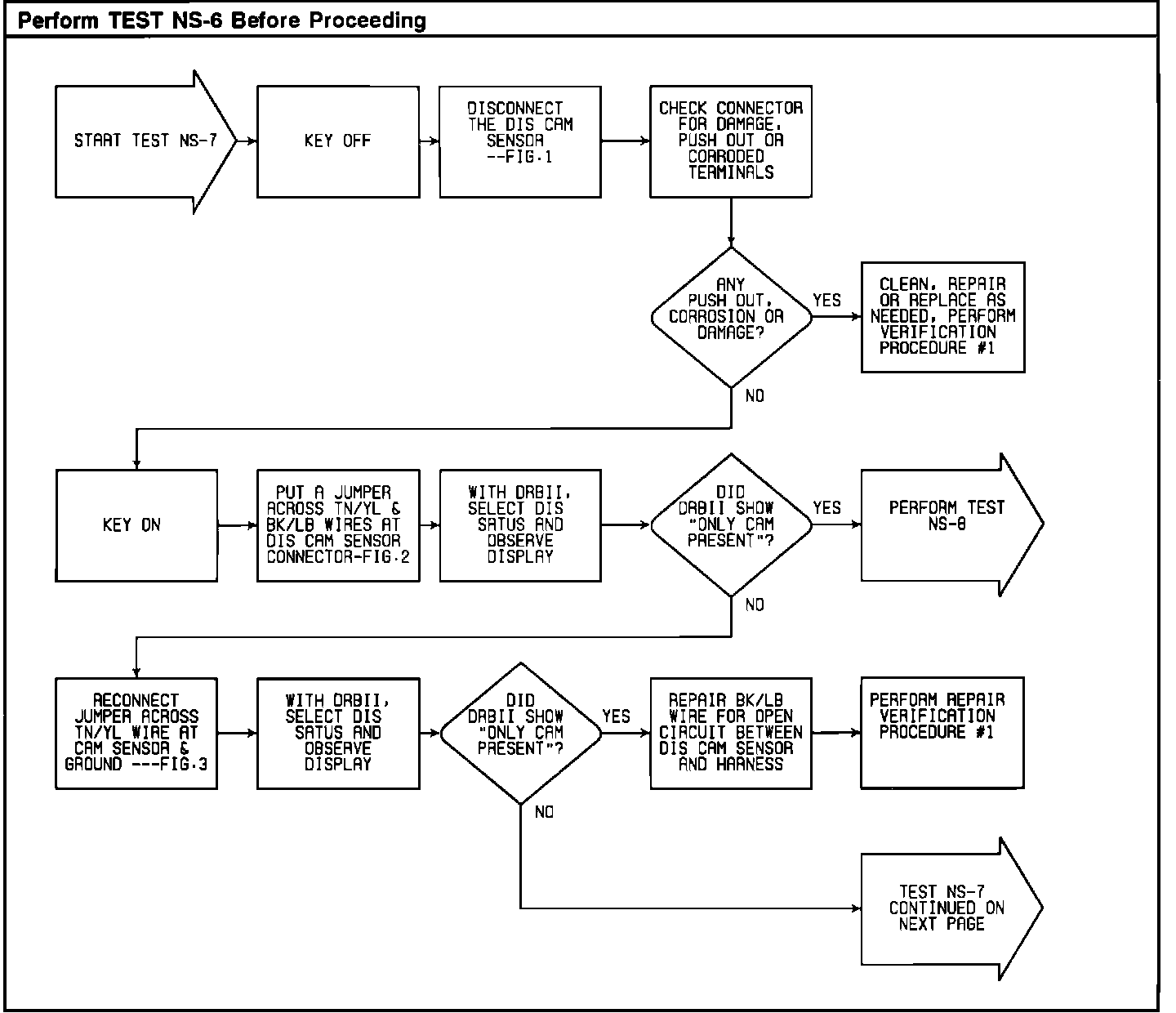

Test NS-7 - Checking DIS Camshaft Sensor:
