Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-5 Checking For Wet Plugs Valve Gear & Ignition Timing

NS-5 Checking For Wet Plugs Valve Gear & Ignition Timing

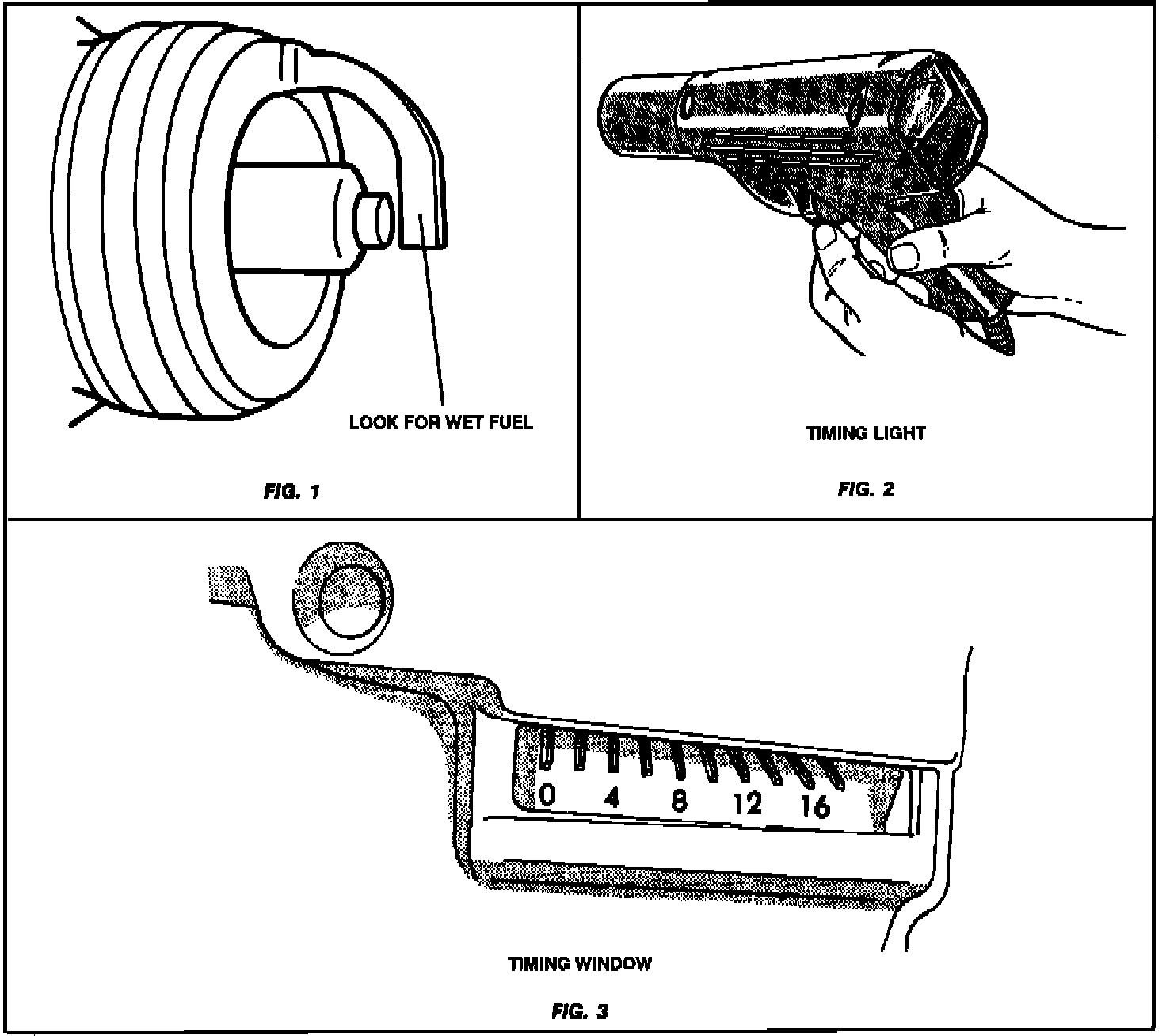

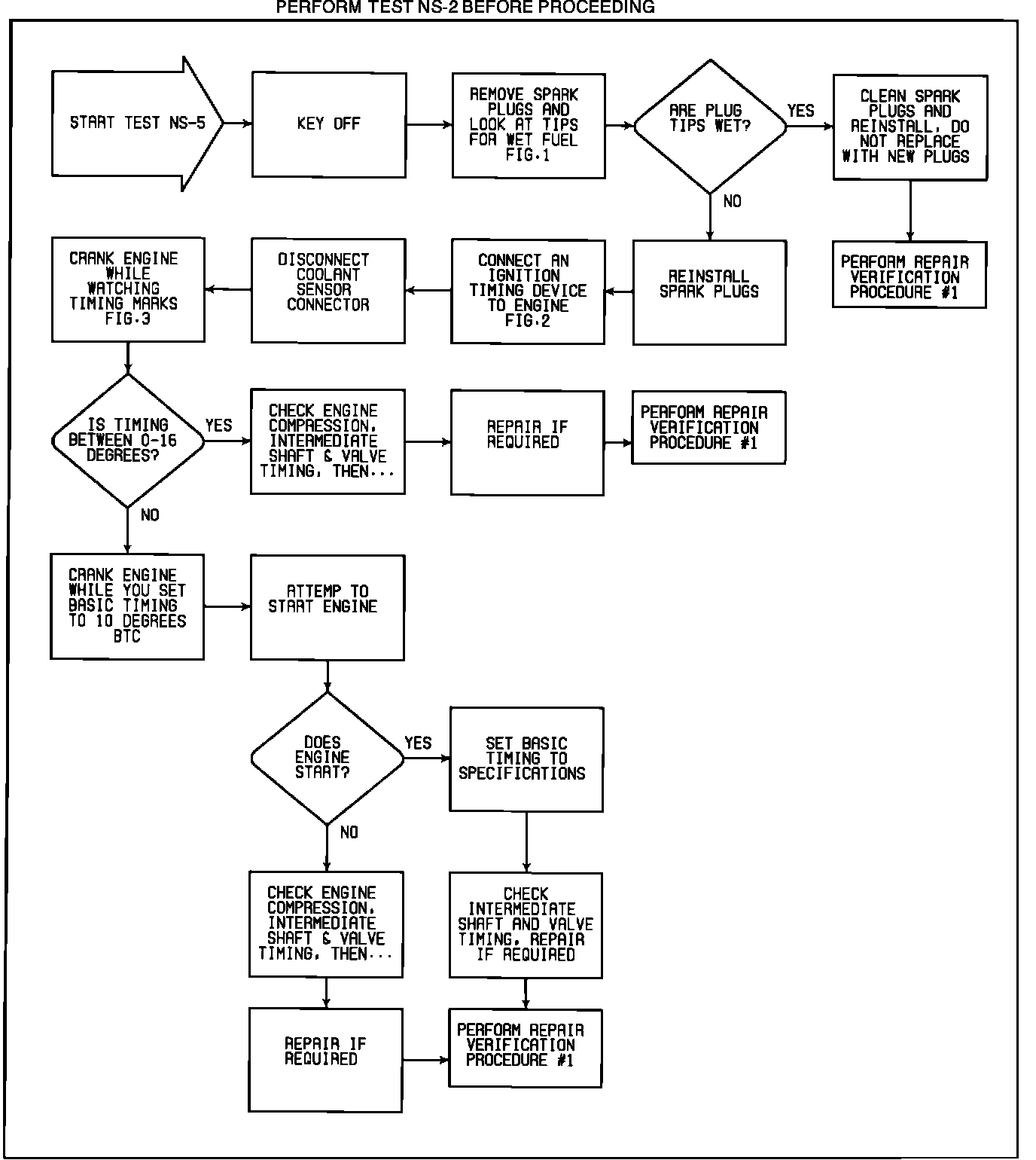

Test NS-5 - Checking For Wet Plugs, Valve Gear, And Ignition Timing:



Test NS-5 - Checking For Wet Plugs, Valve Gear, And Ignition Timing:
