No Start (NS) Tests
>>
NS-15 Checking ASD Relay Fuel Pump Injector & O2 Sensor
>>
Part 2 of 2
Part 2 of 2

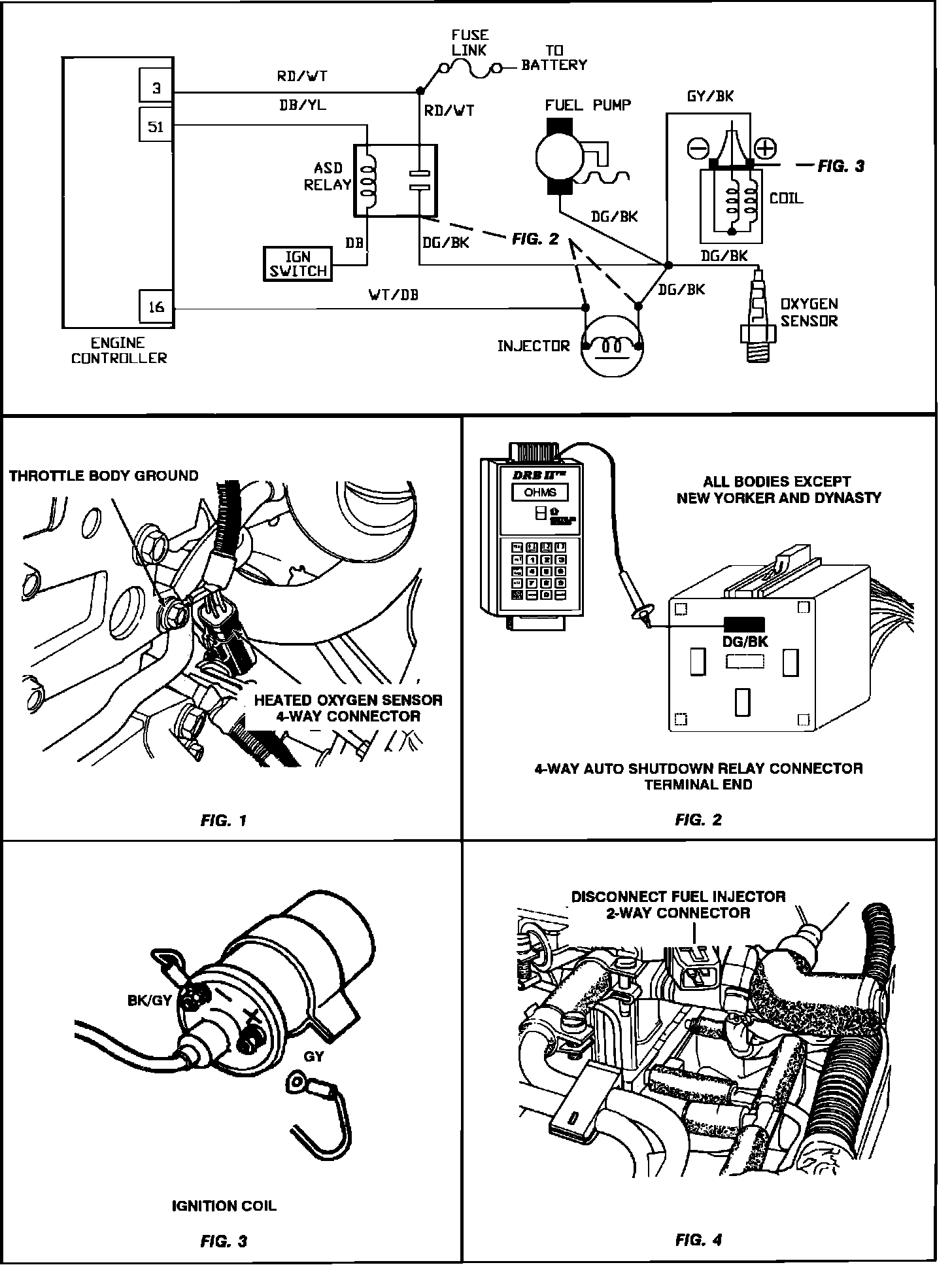

Test NS-15 - Checking ASD Relay and Power Feed To fuel Pump, Oxygen Sensor, And Injectors:
Test NS-15 - Checking ASD Relay and Power Feed To fuel Pump, Oxygen Sensor, And Injectors:
