FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1990
>>
Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-14 Repairing Fault "ASD Relay Circuit"
NS-14 Repairing Fault "ASD Relay Circuit"

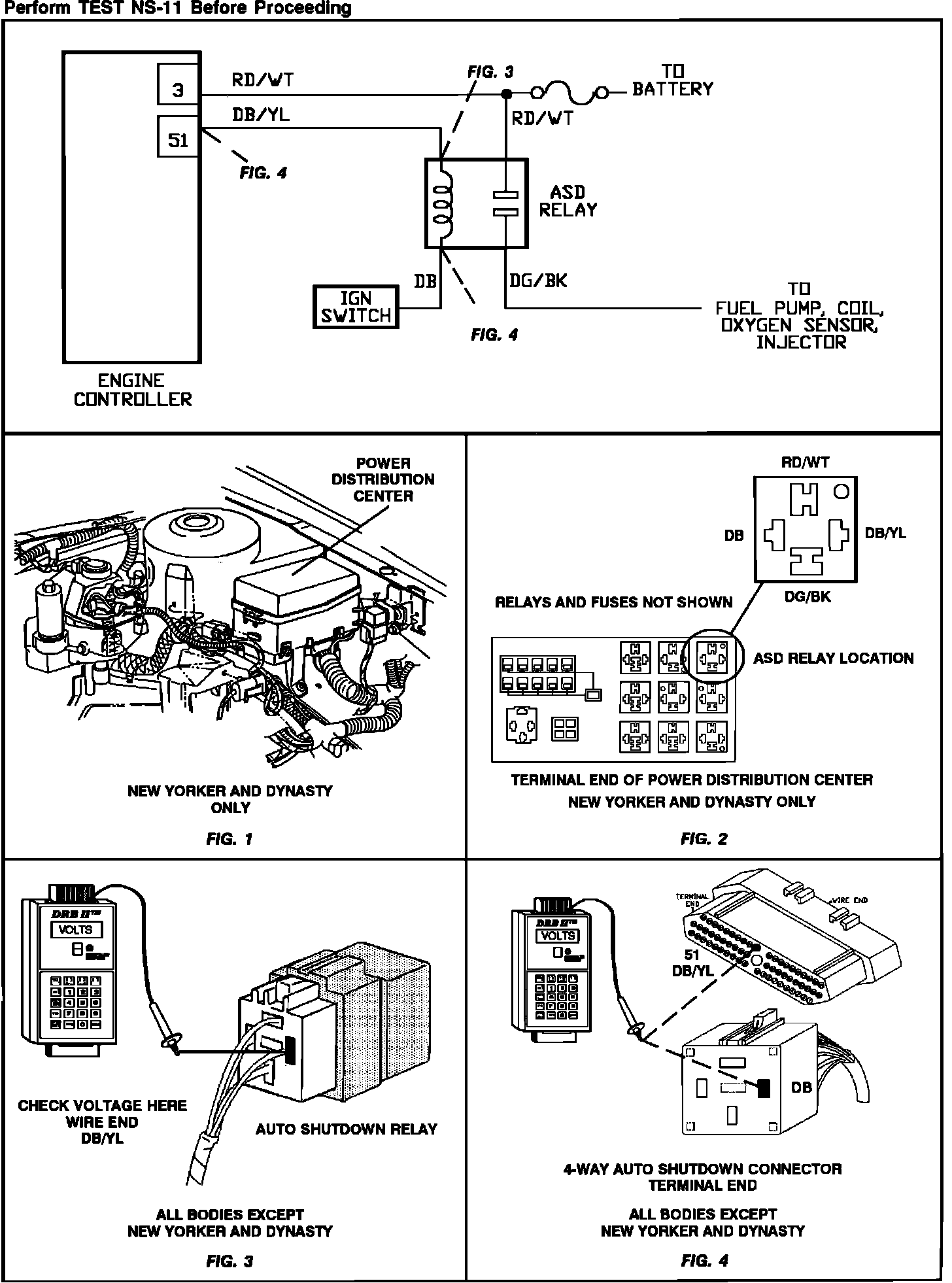

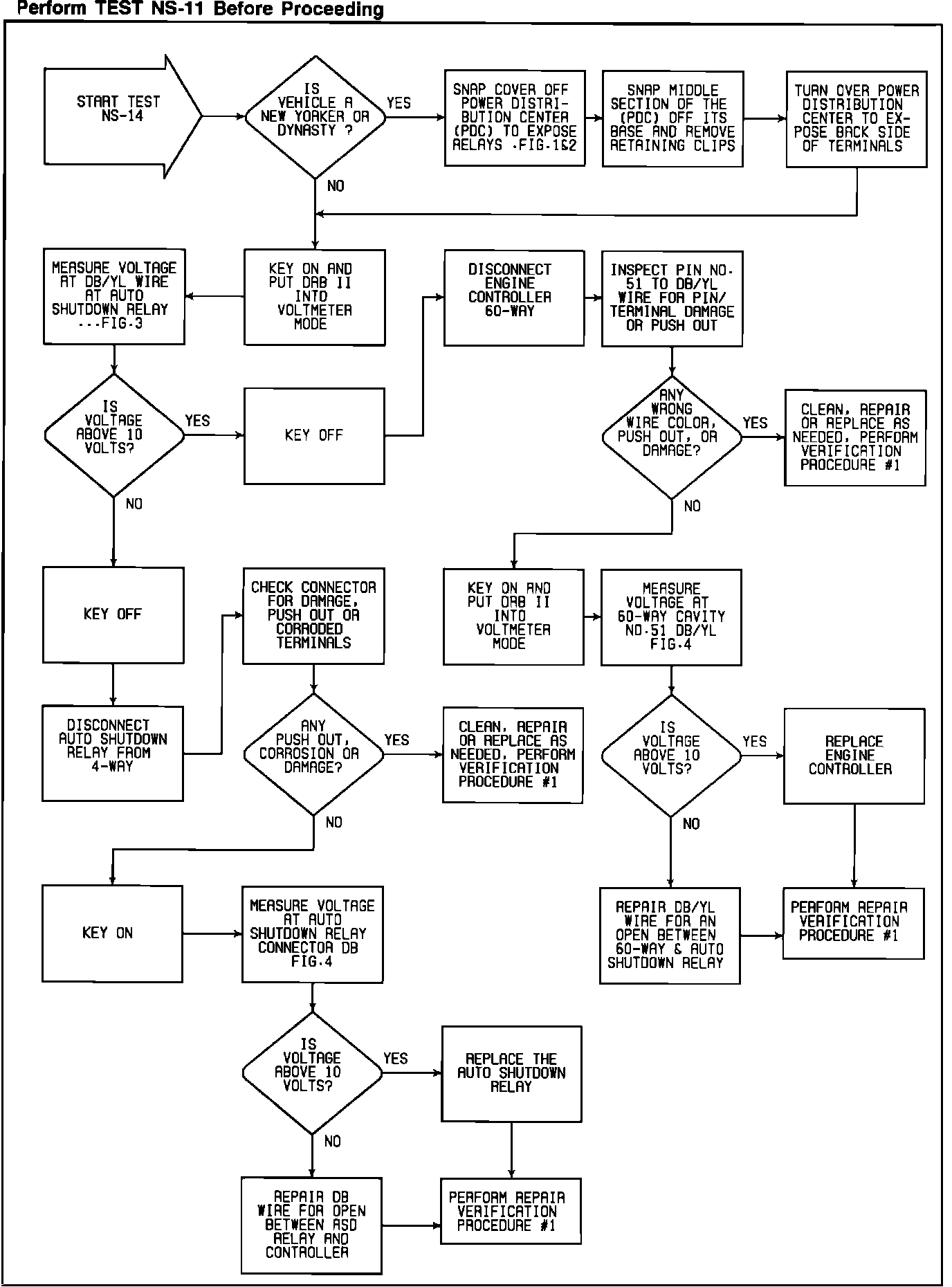

Test NS-14 - Repairing Fault "ASD Relay Circuit":
Test NS-14 - Repairing Fault "ASD Relay Circuit":
