NS-13 Repairing Fault "Ign Reference Signal"
>>
Part 3 of 3
Part 3 of 3

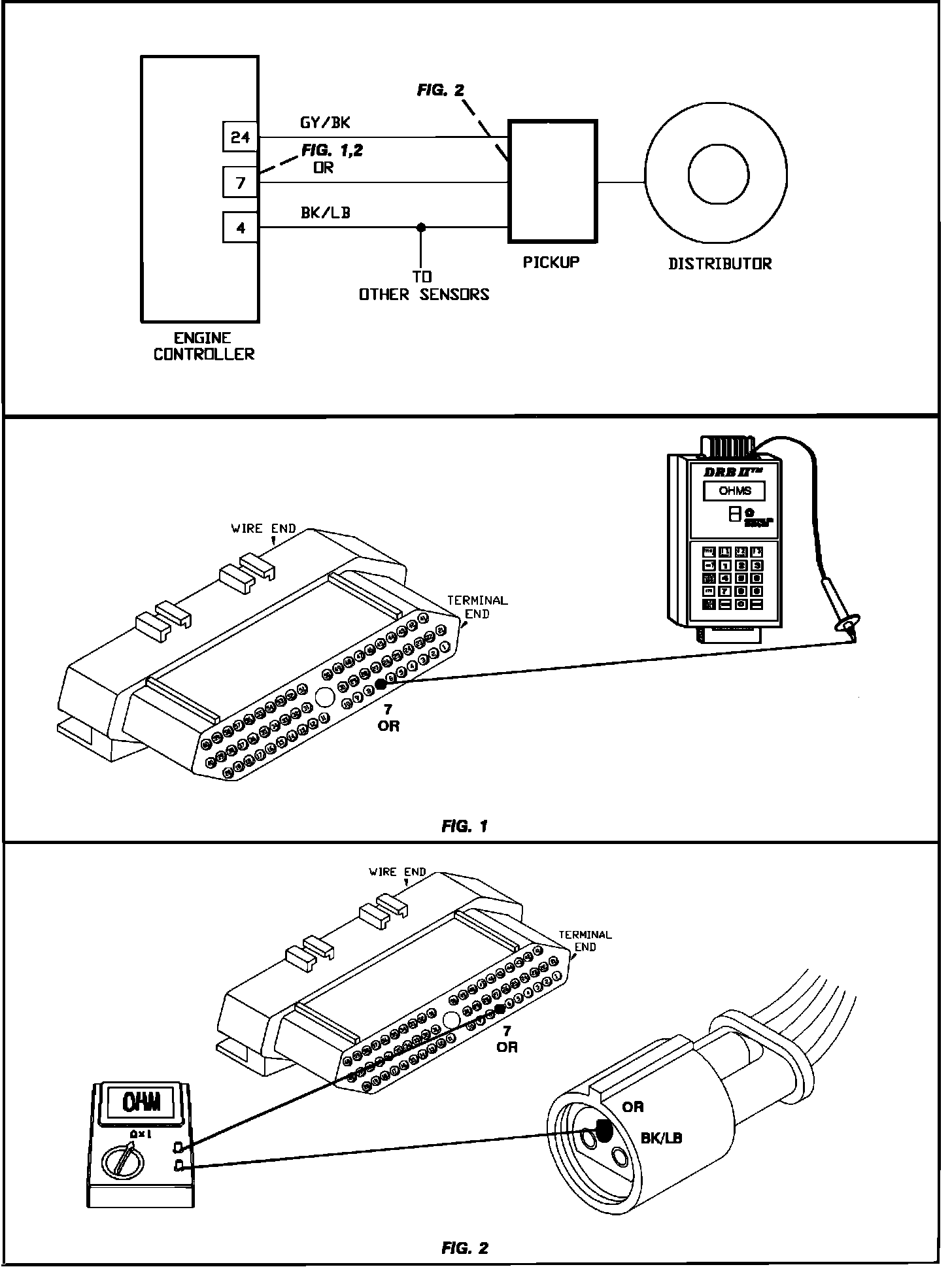

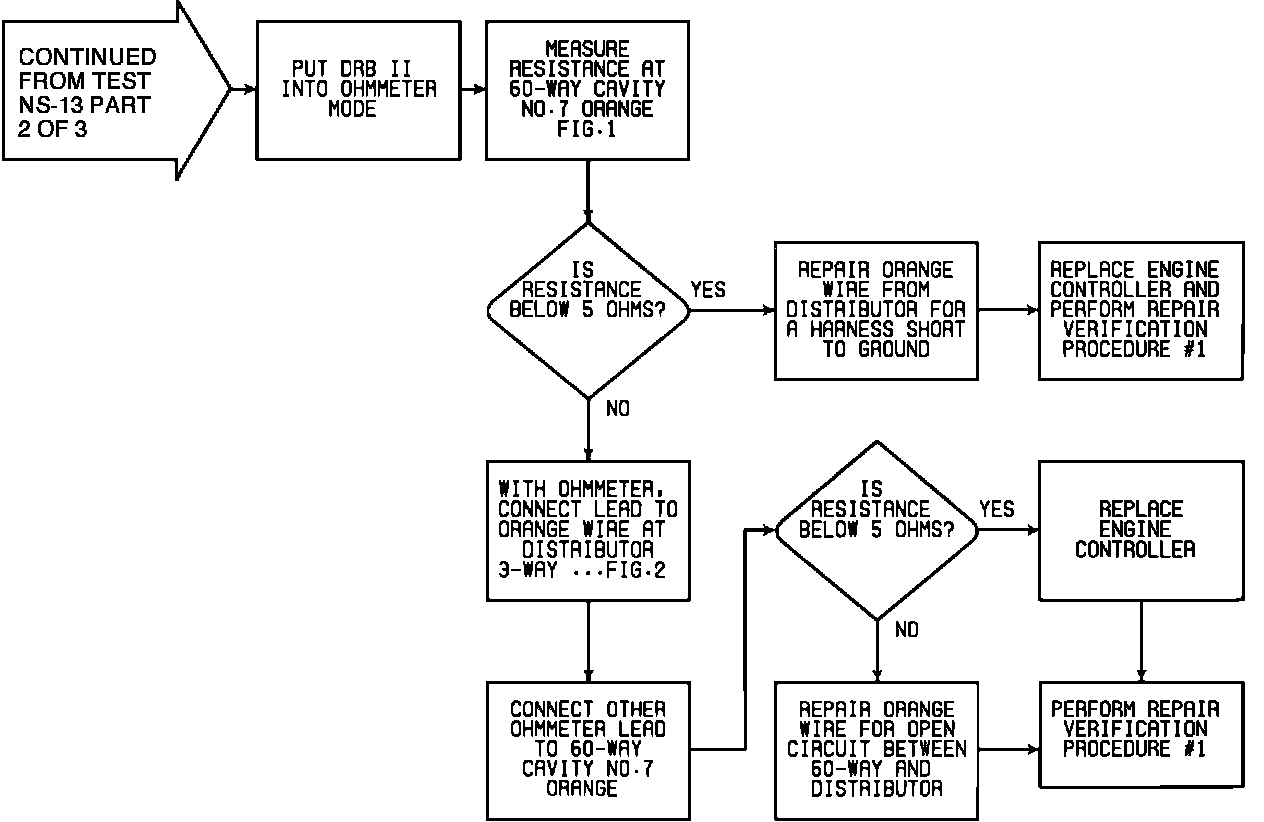

Test NS-13 - Repairing Fault "Ign Reference Signal":
Test NS-13 - Repairing Fault "Ign Reference Signal":
