Part 1 of 2

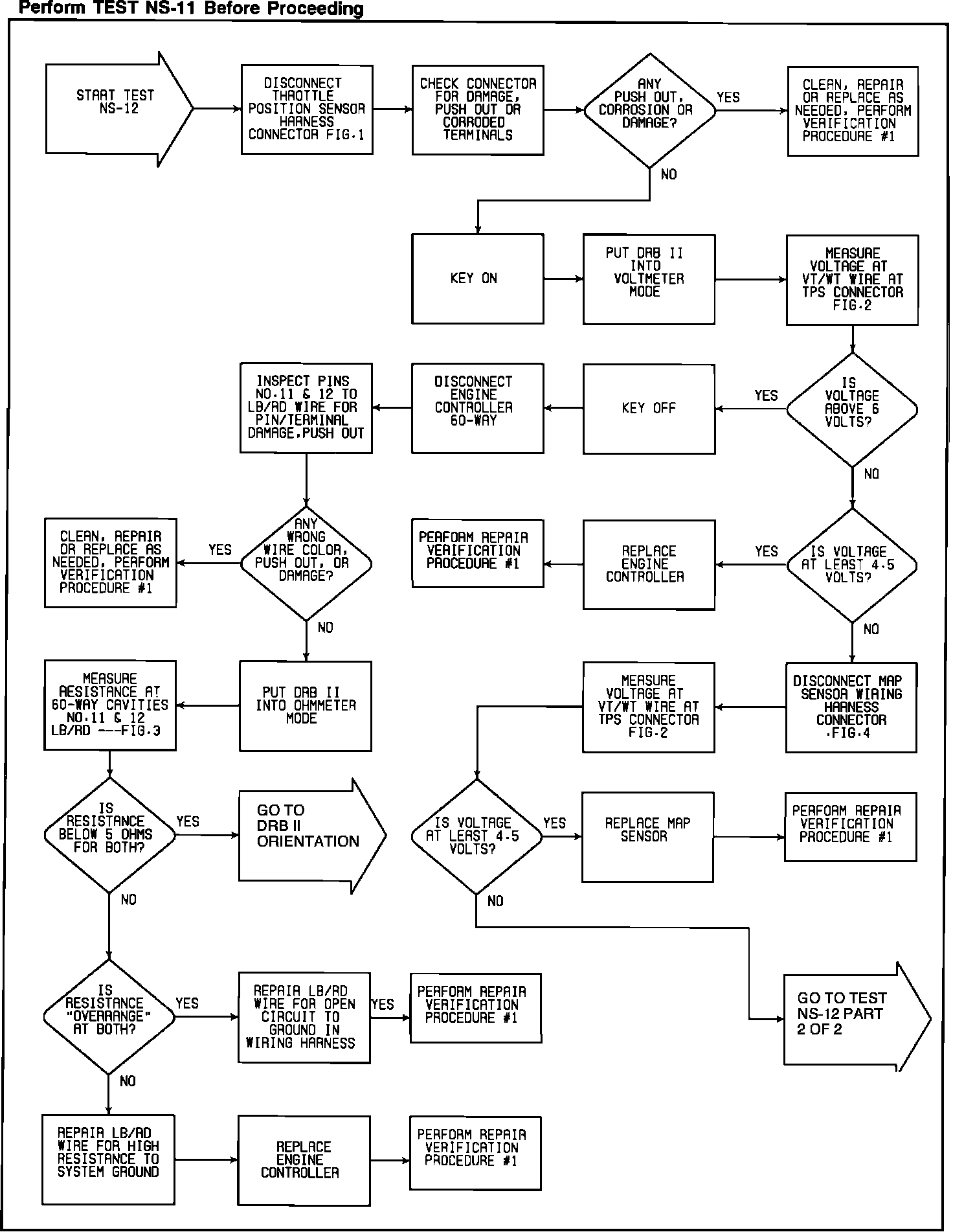

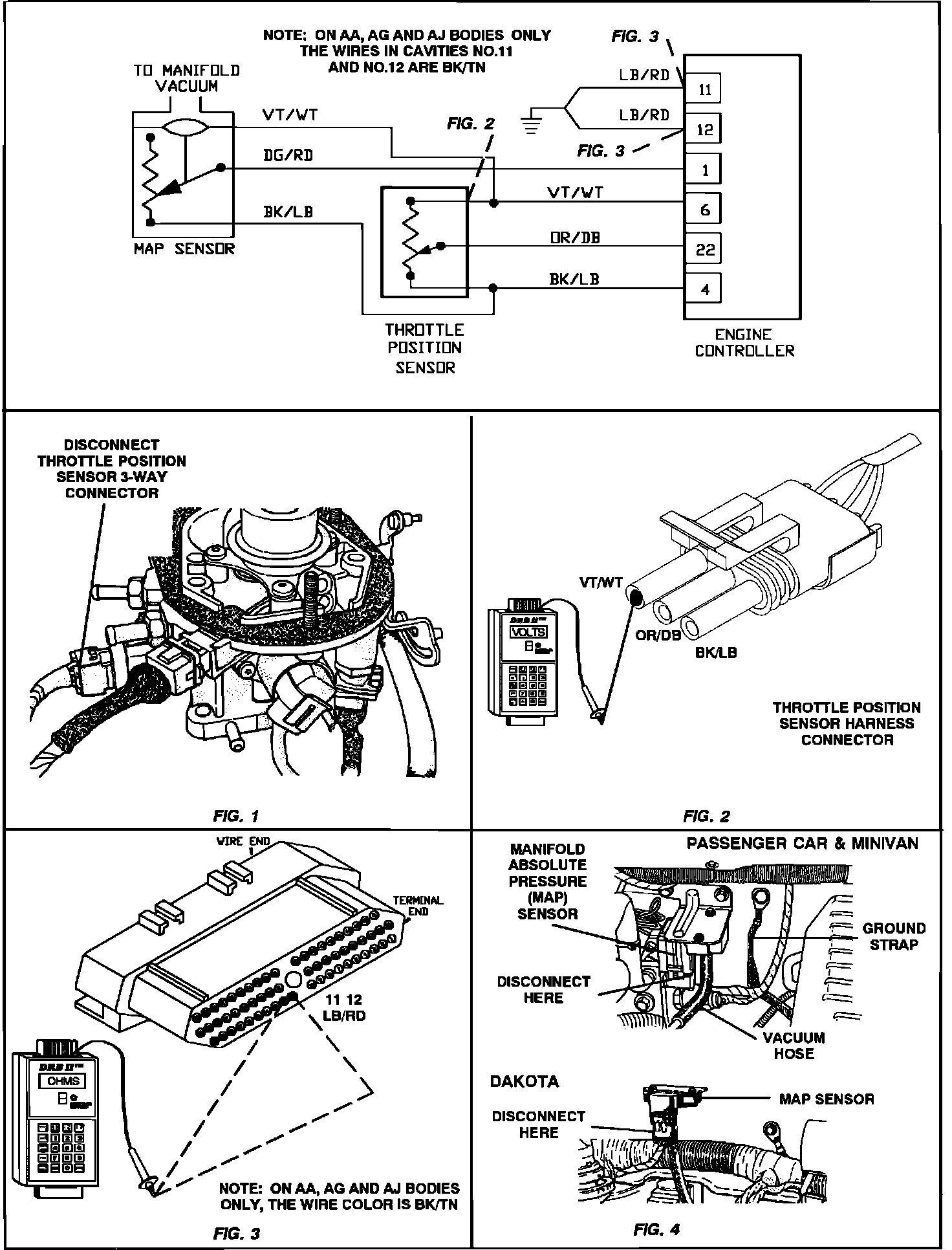

Test NS-12 - Checking For System Power And Ground, And Operation Of MAP Sensor And Engine Controller:



Test NS-12 - Checking For System Power And Ground, And Operation Of MAP Sensor And Engine Controller:
