NS-11 Scan Tool (DRB II) and System Faults
NS-11 Scan Tool (DRB II) and System Faults

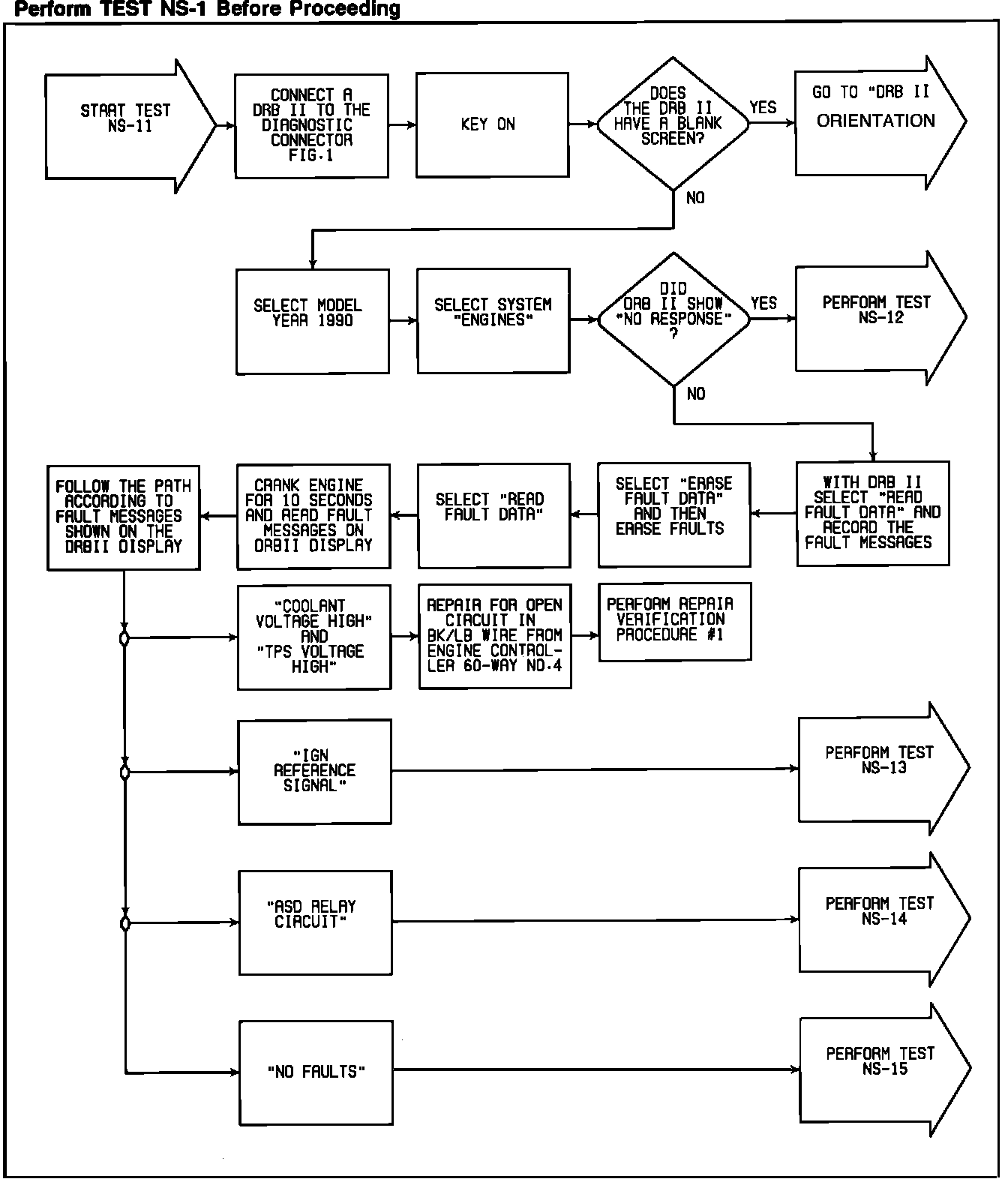

Test NS-11 - Checking DRB II and Ssytem Faults:
Test NS-11 - Checking DRB II and Ssytem Faults:
