No Start Test
>>
No Start (NS) Tests
>>
NS-10 Checking System Power & Ground MAP Sensor & SBEC
>>
Part 1 of 2
Part 1 of 2

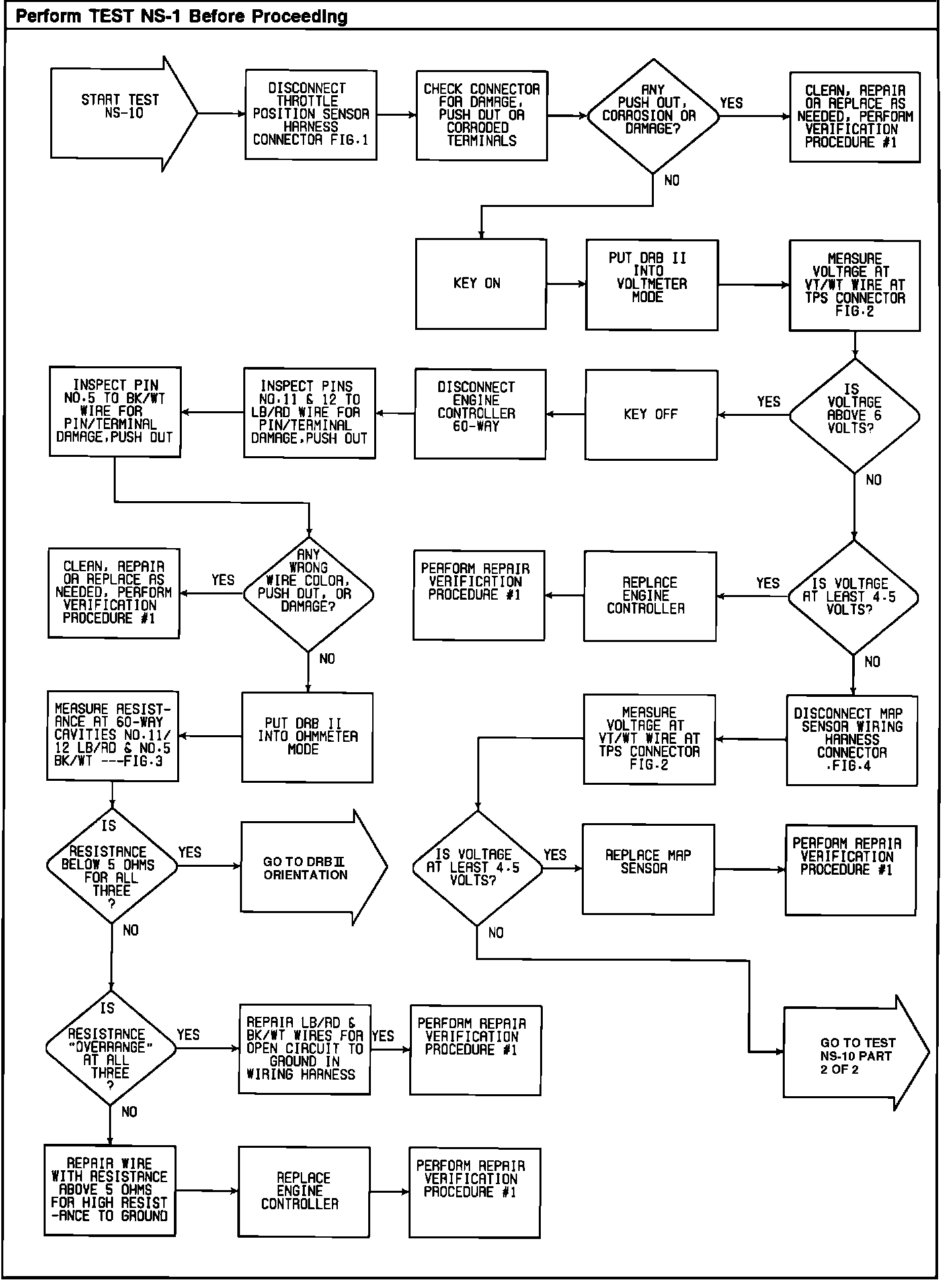

Test NS-10 - Checking System Power & Ground, MAP Sensor, & SBEC:

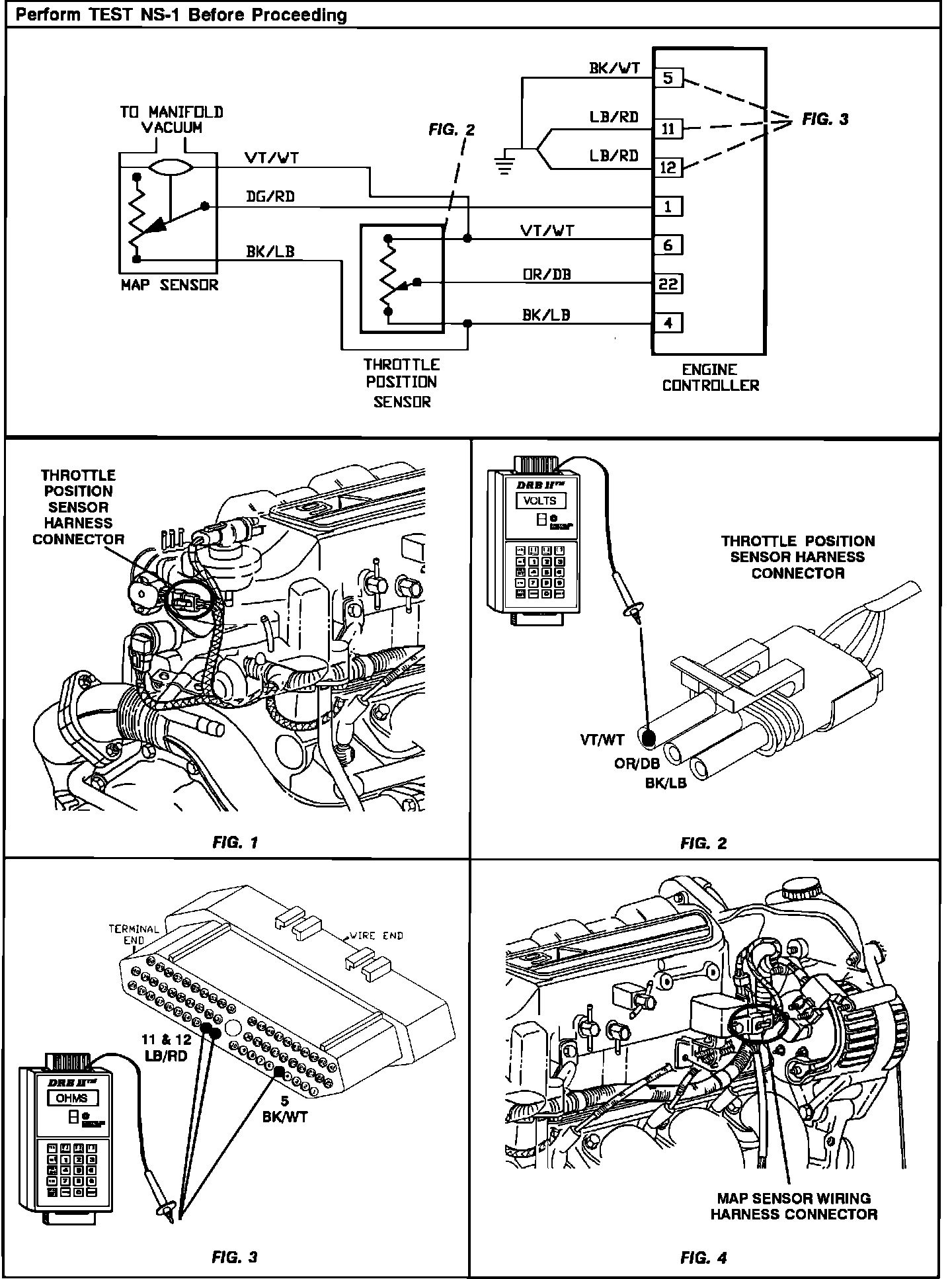

Test NS-10 - Checking System Power & Ground, MAP Sensor, & SBEC:
