NS-10 Checking "Auto Shutdown Relay" Fault
NS-10 Checking "Auto Shutdown Relay" Fault

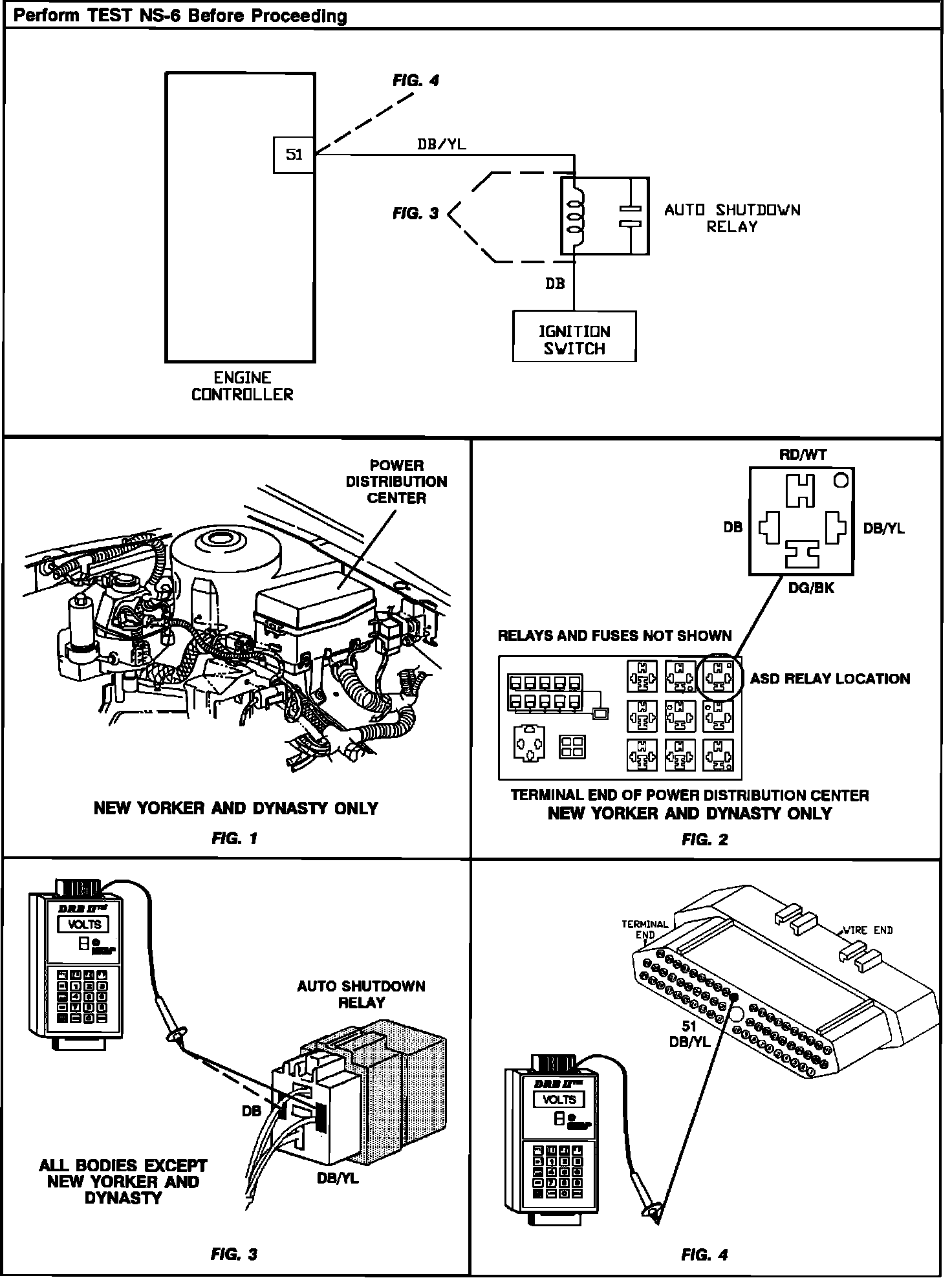

Test NS-10 - Checking Fault "Auto Shutdown Relay":

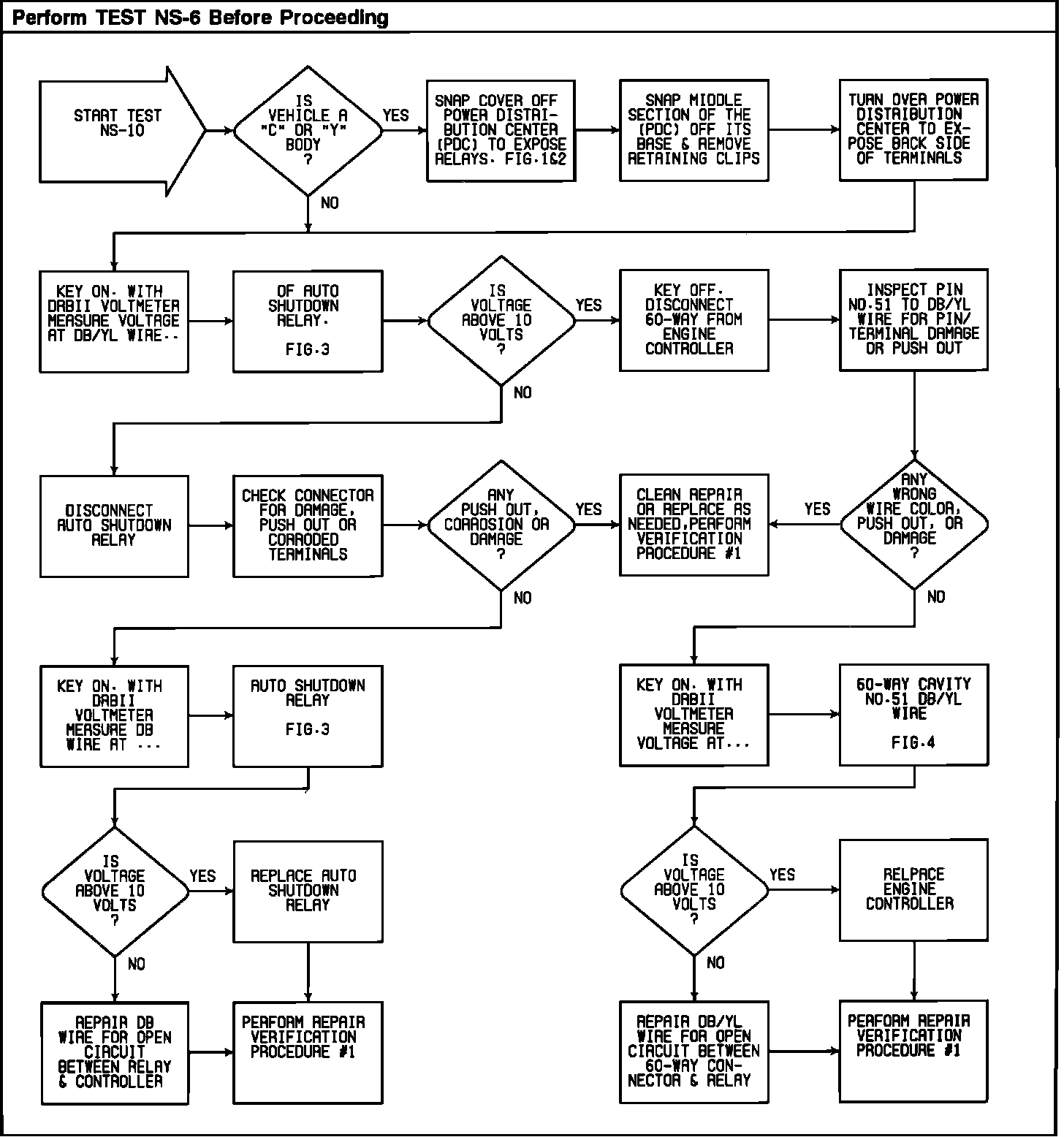

Test NS-10 - Checking Fault "Auto Shutdown Relay":
