NS-1 Checking For "Fuel Not Allowed" Fault

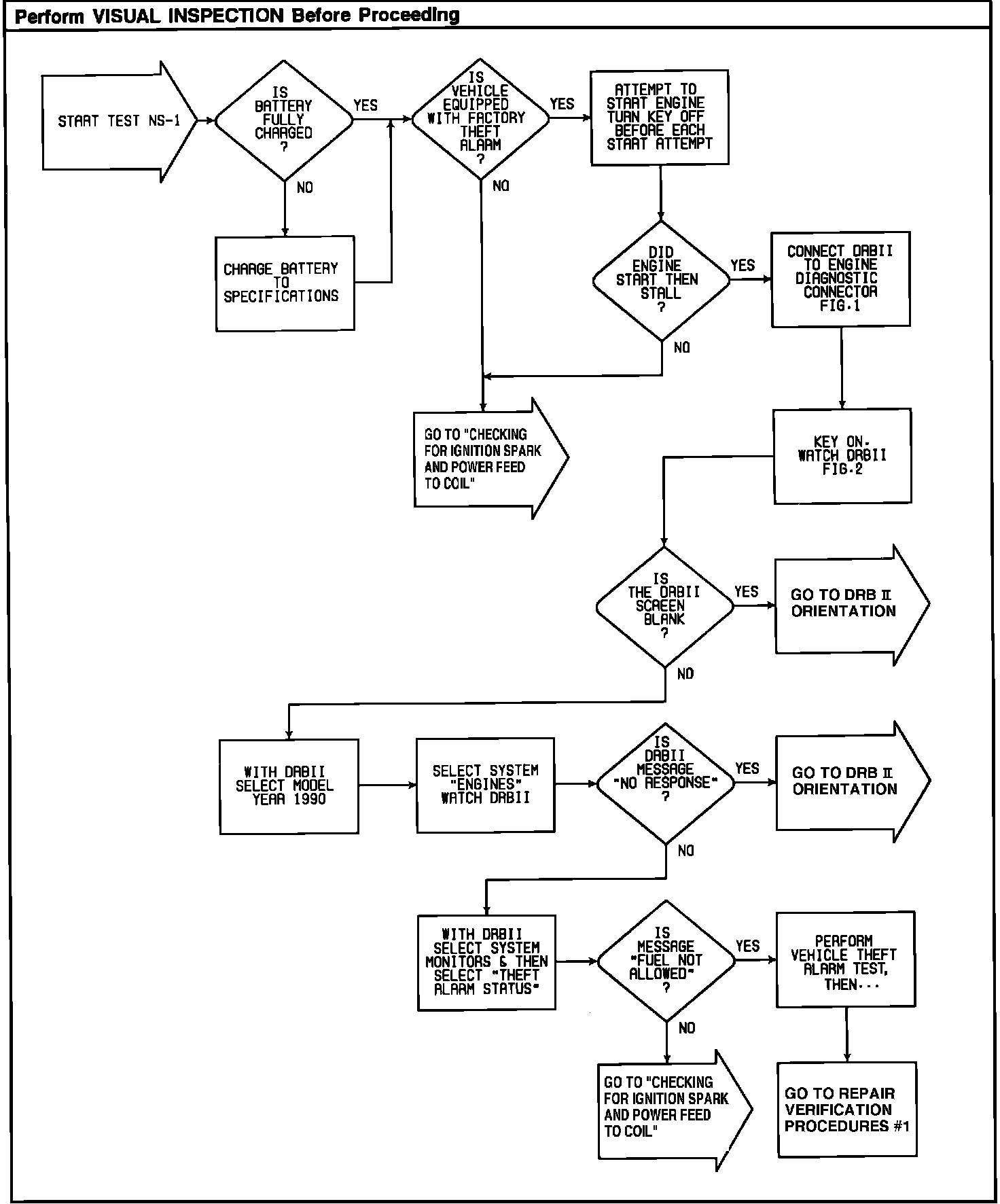

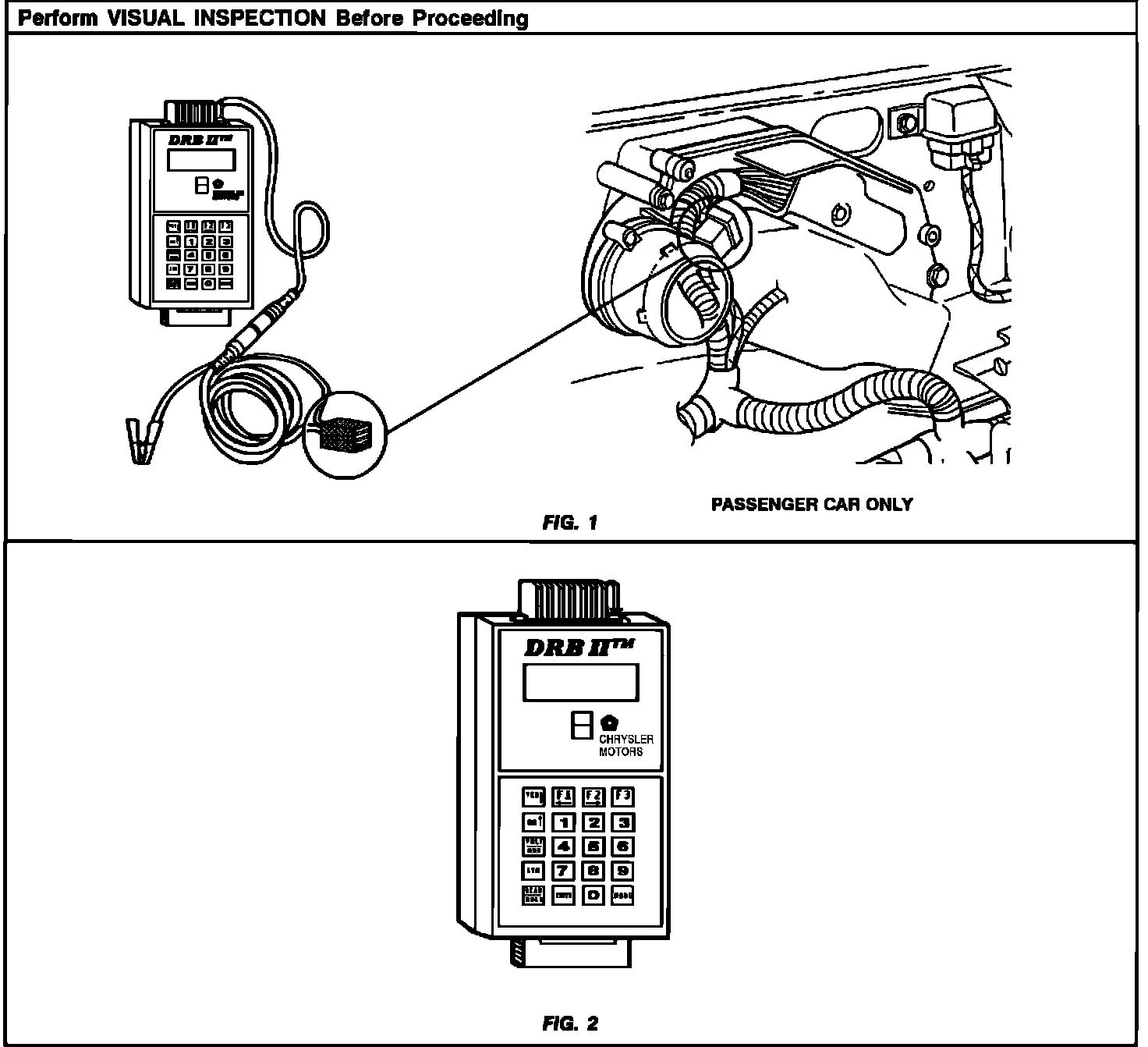

Test NS-1 - Checking For DRB II Message "Fuel Not Allowed":



Test NS-1 - Checking For DRB II Message "Fuel Not Allowed":

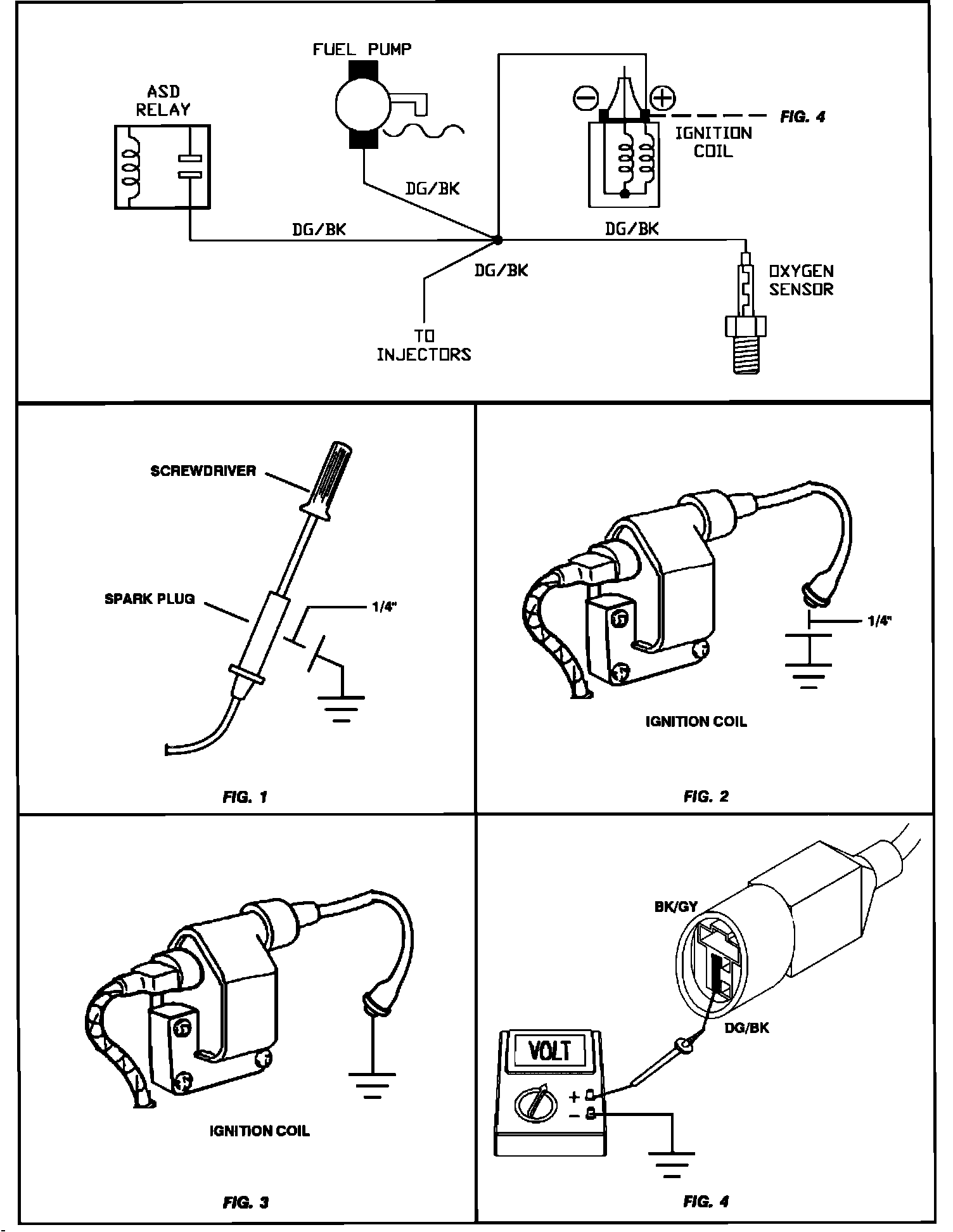

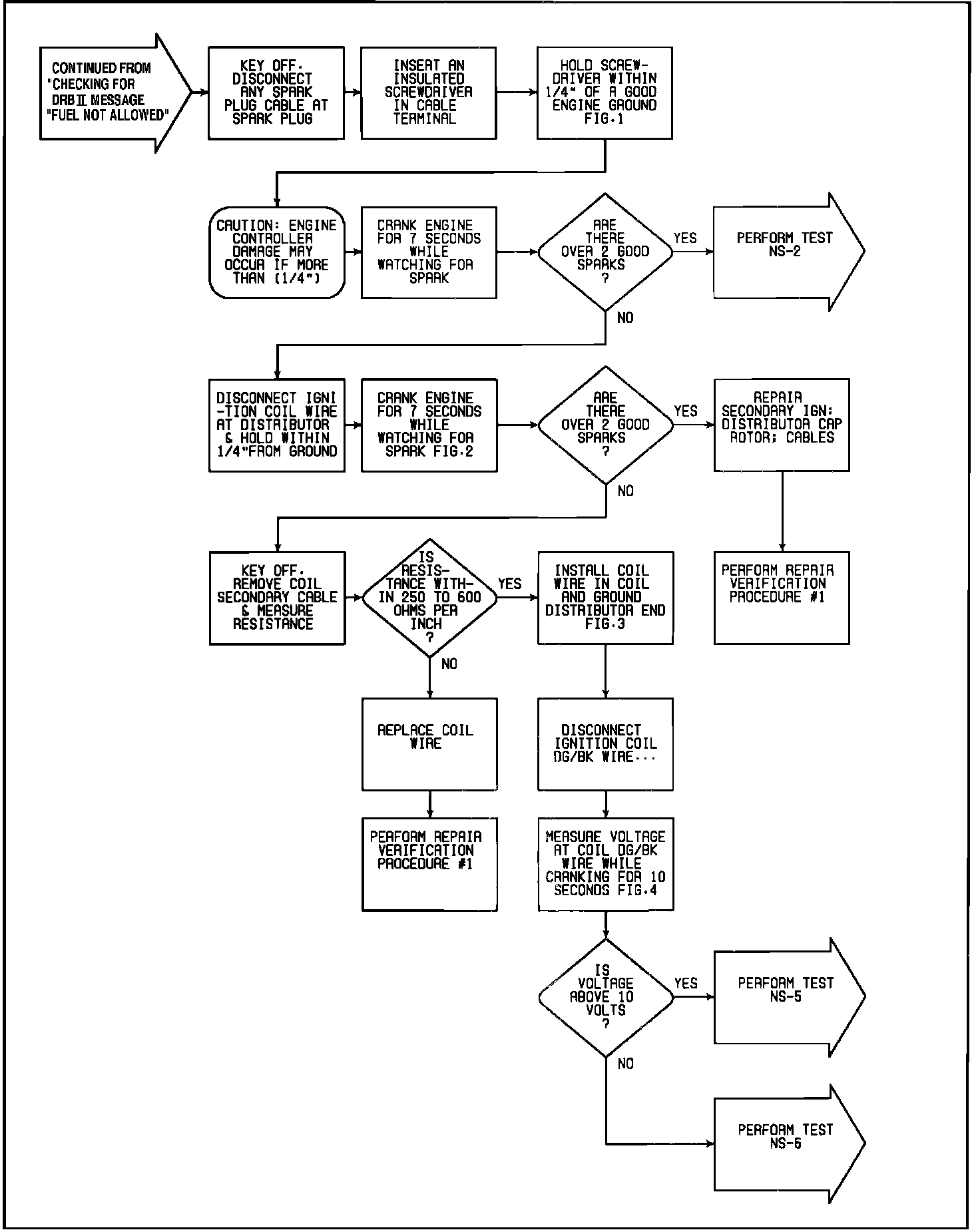

Checking For Ignition Spark And Power Feed To Coil:



Checking For Ignition Spark And Power Feed To Coil:
