Home >> Chrysler >> 1990 >> Imperial V6-201 3.3L VIN R FI >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Headlamp Door System >> Test 85 - Headlamp Doors Do Not Open or Flash to Pass

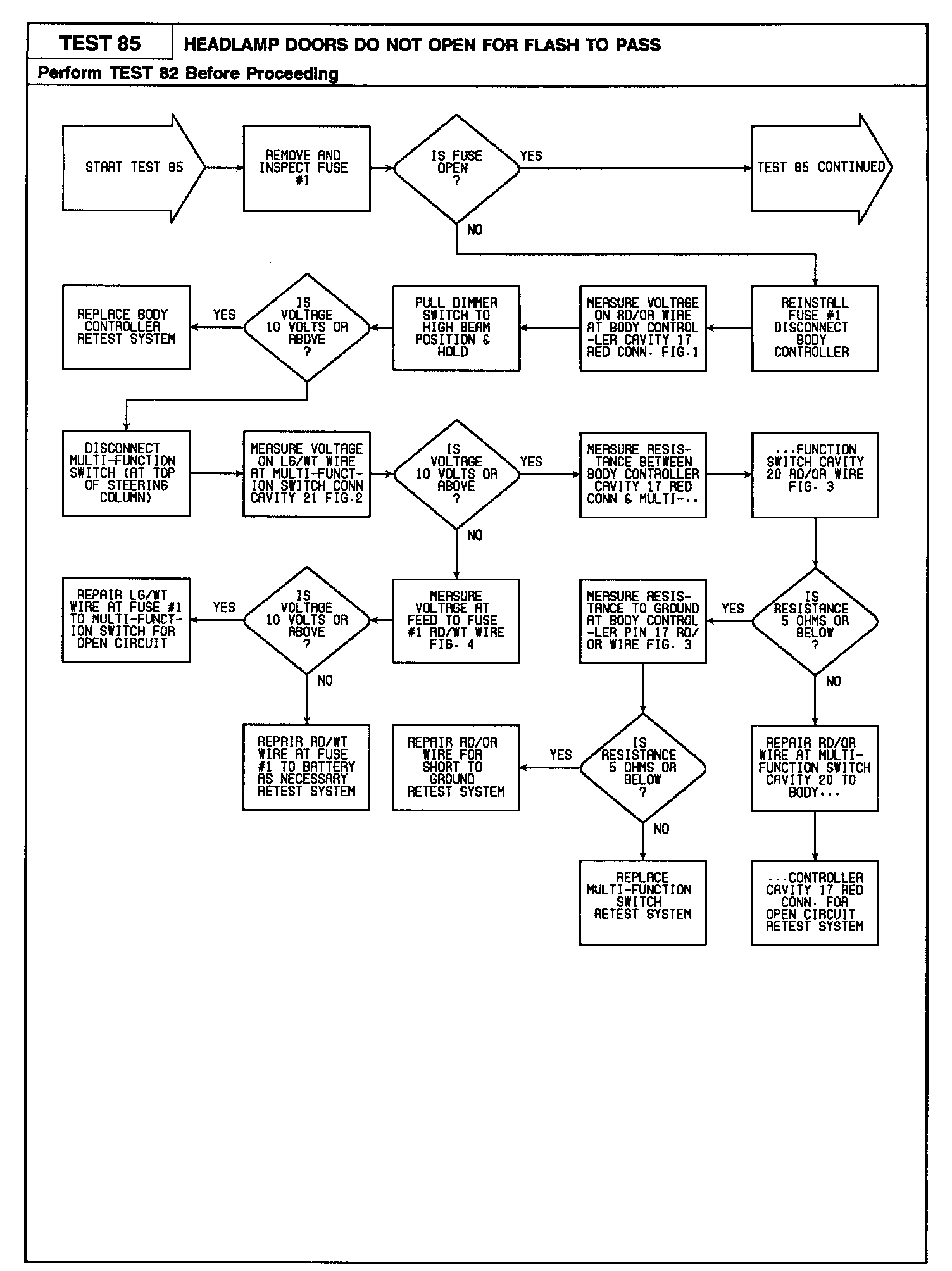

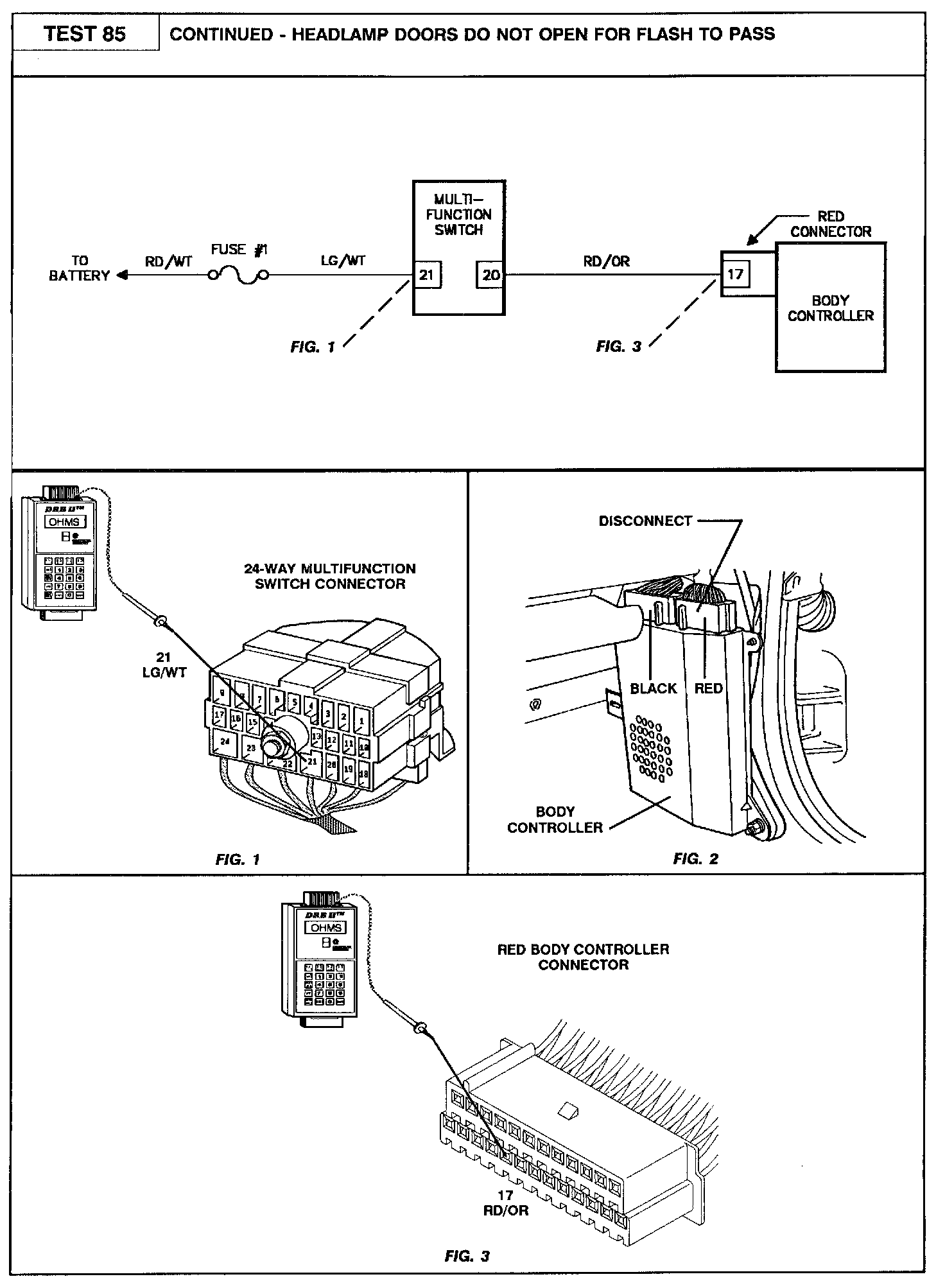

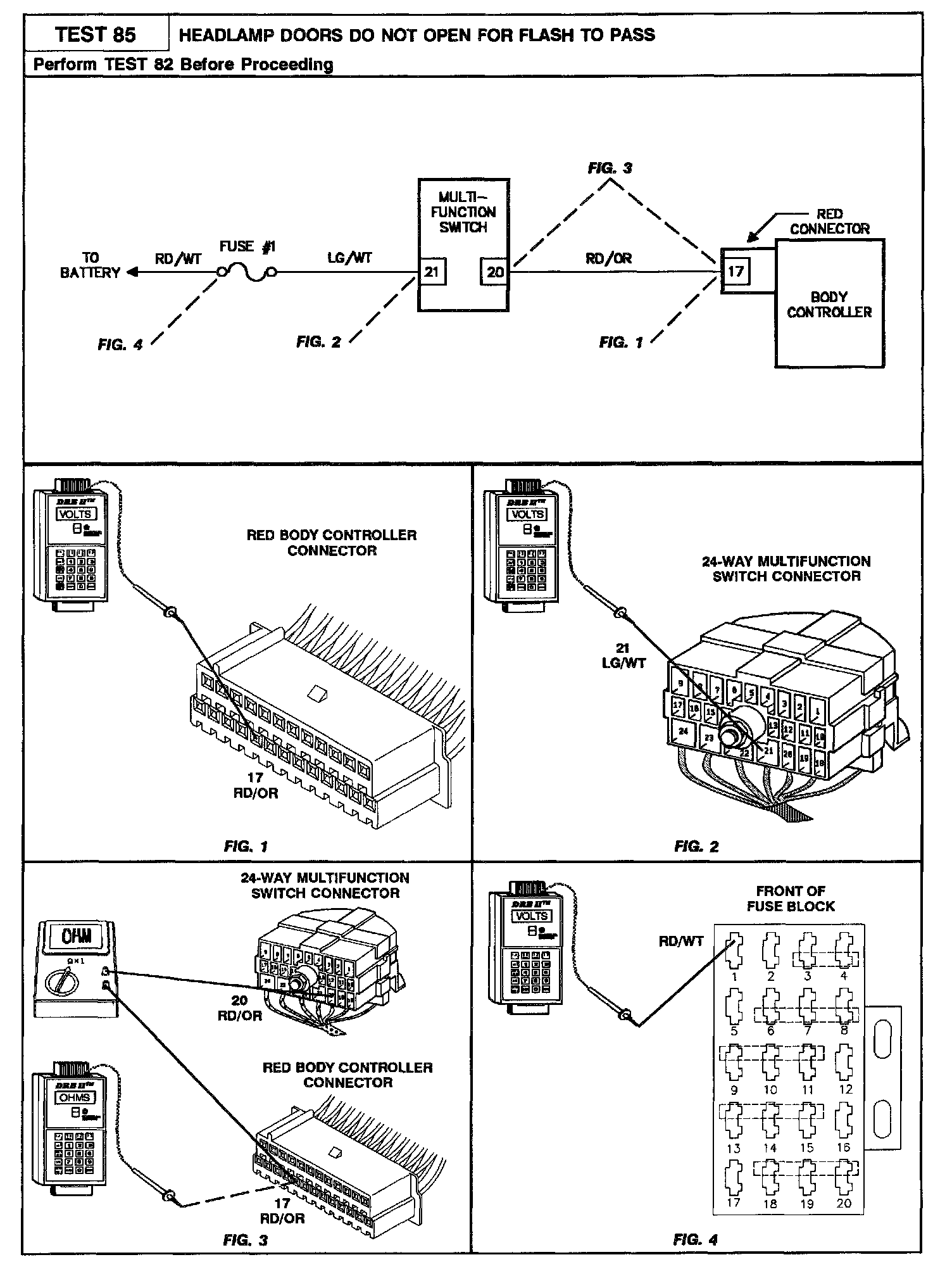

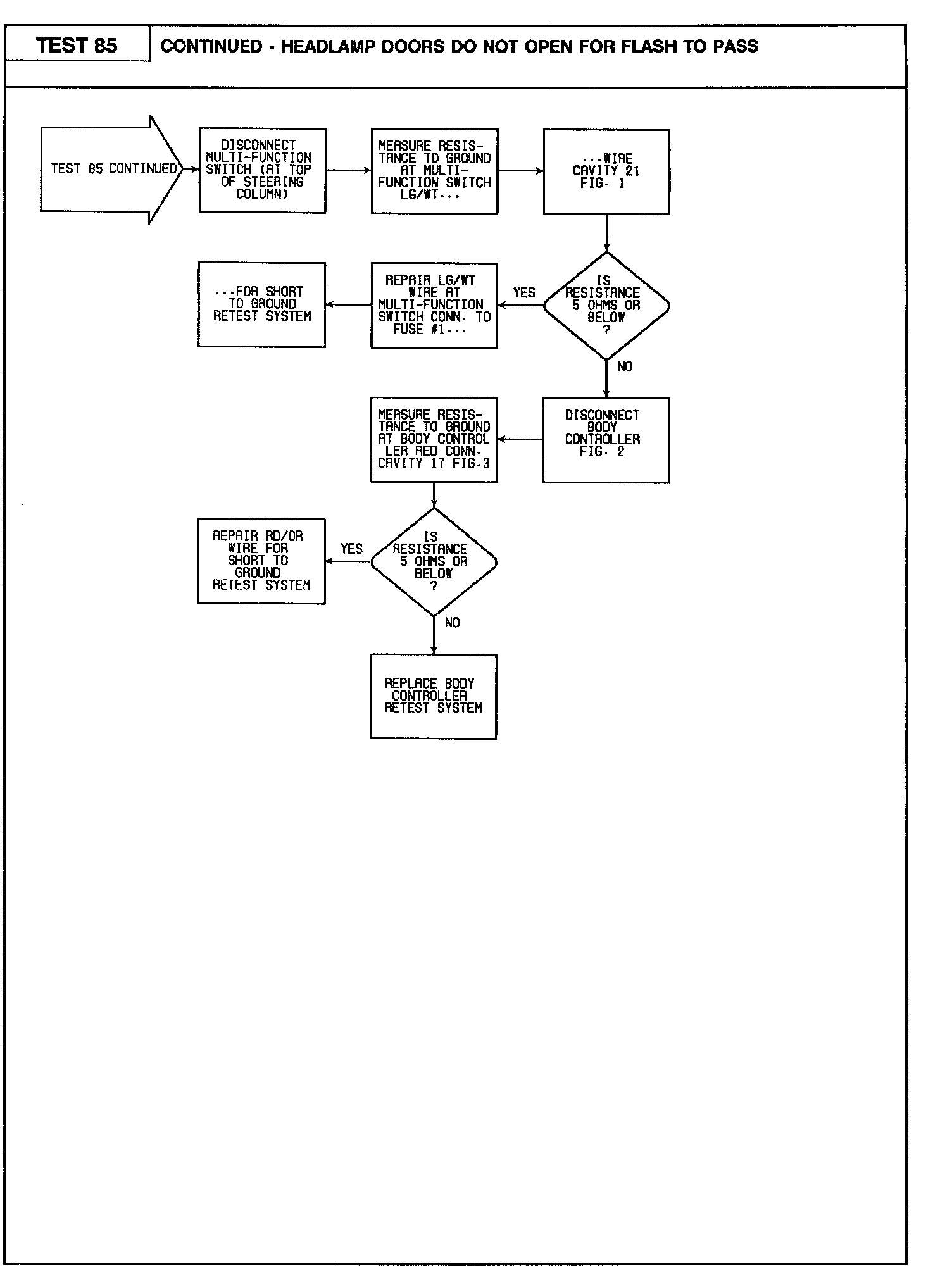

Test 85 - Headlamp Doors Do Not Open or Flash to Pass
