Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Headlamp Door System
>>

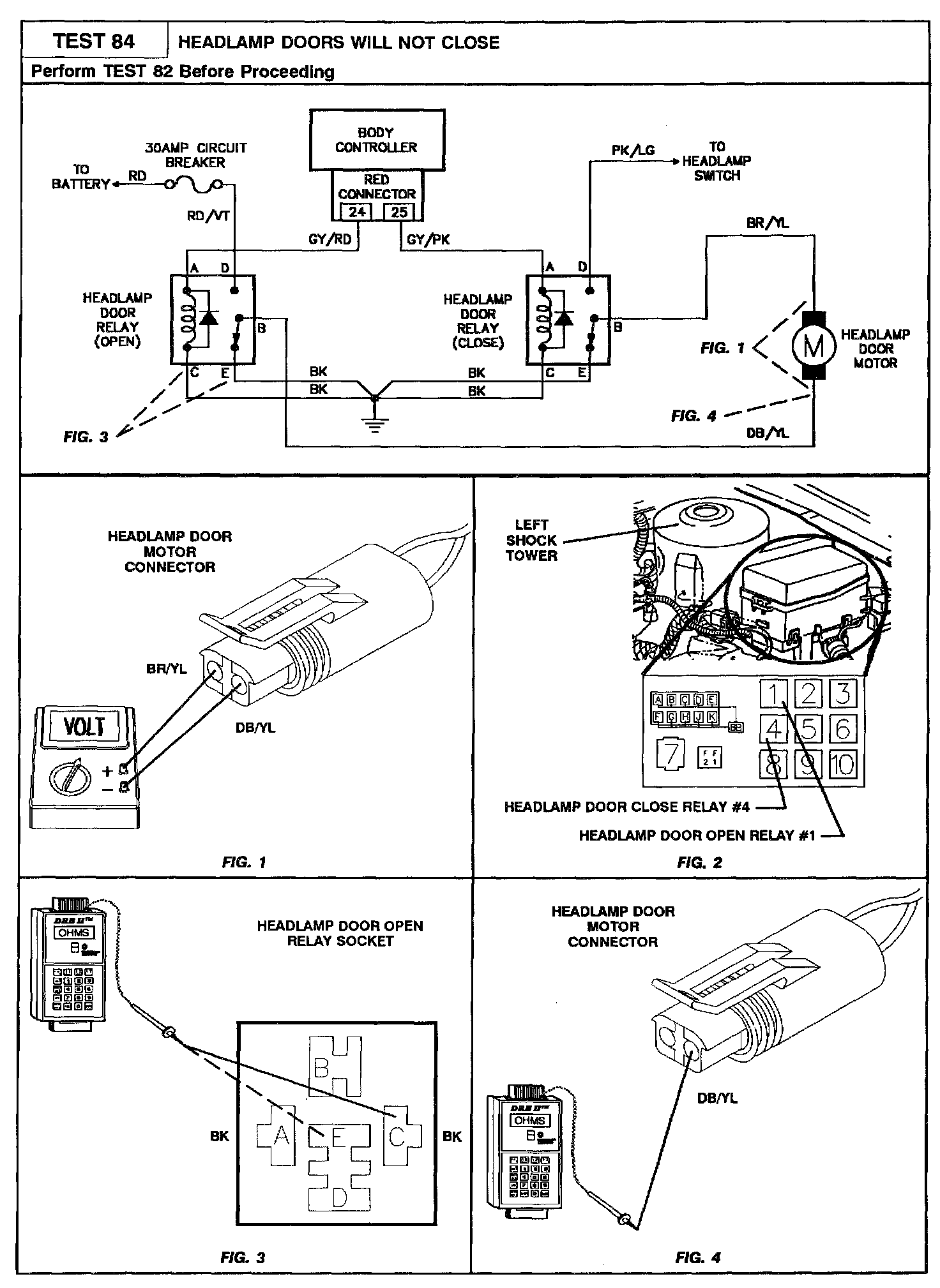

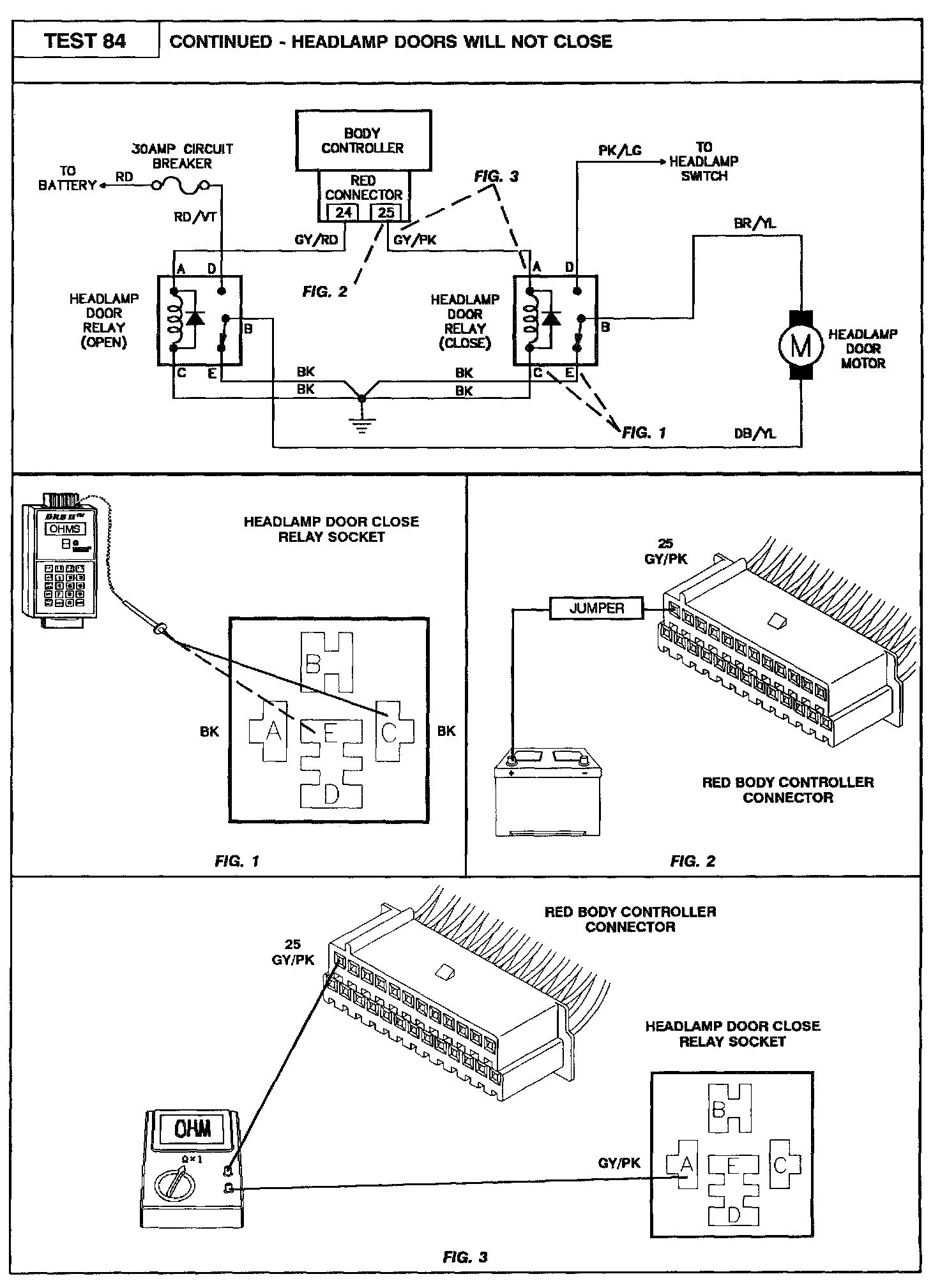

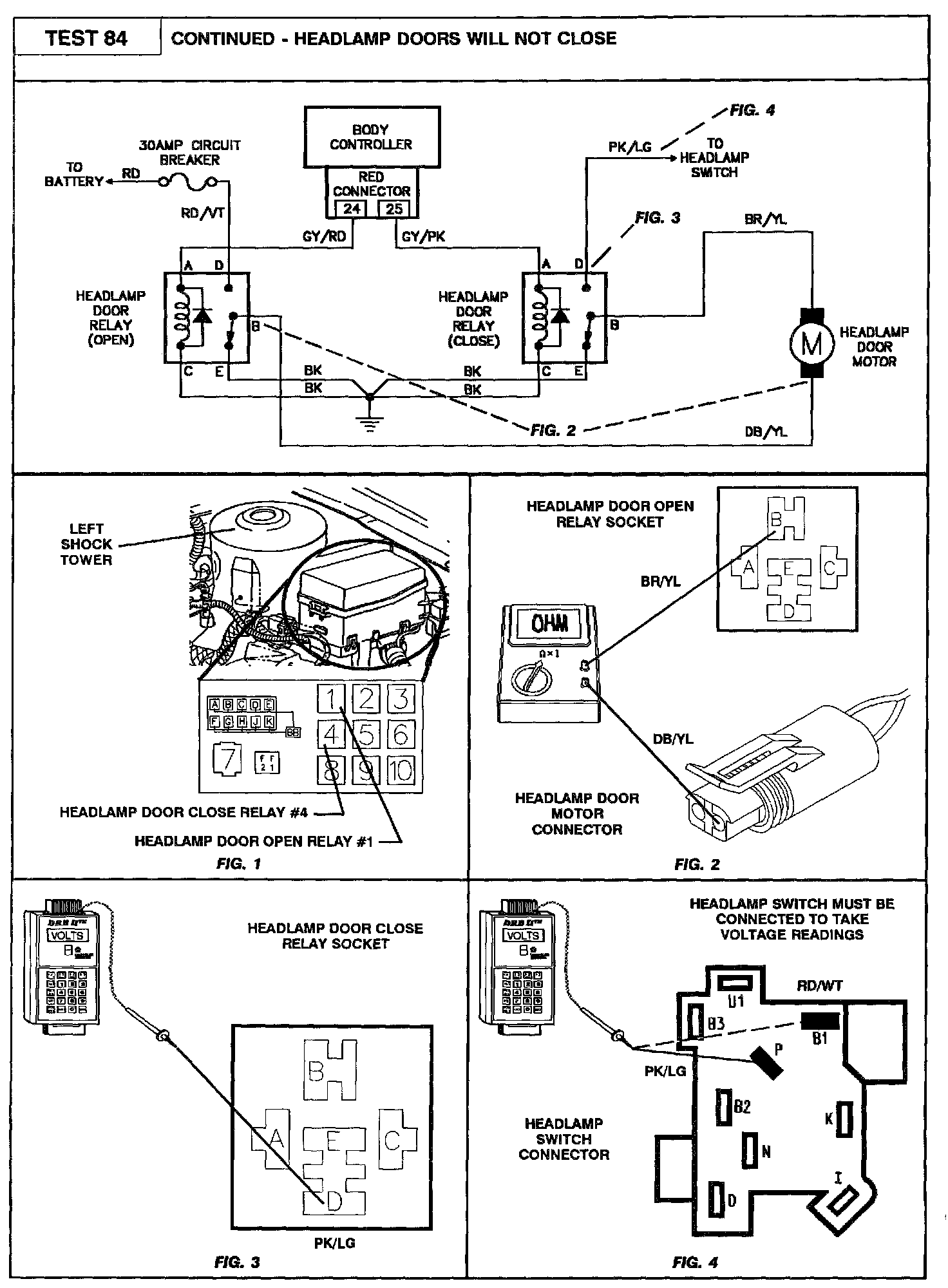

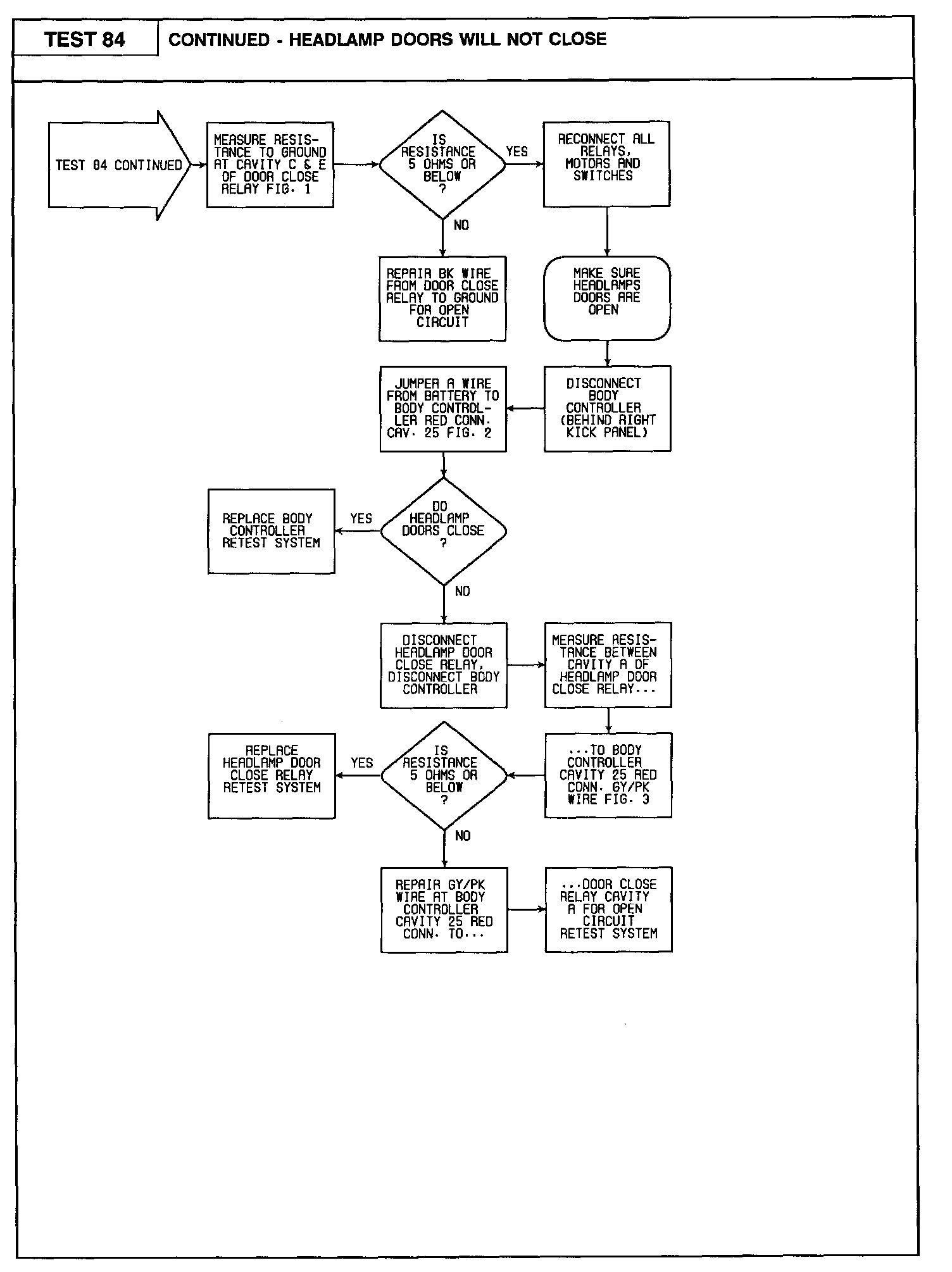

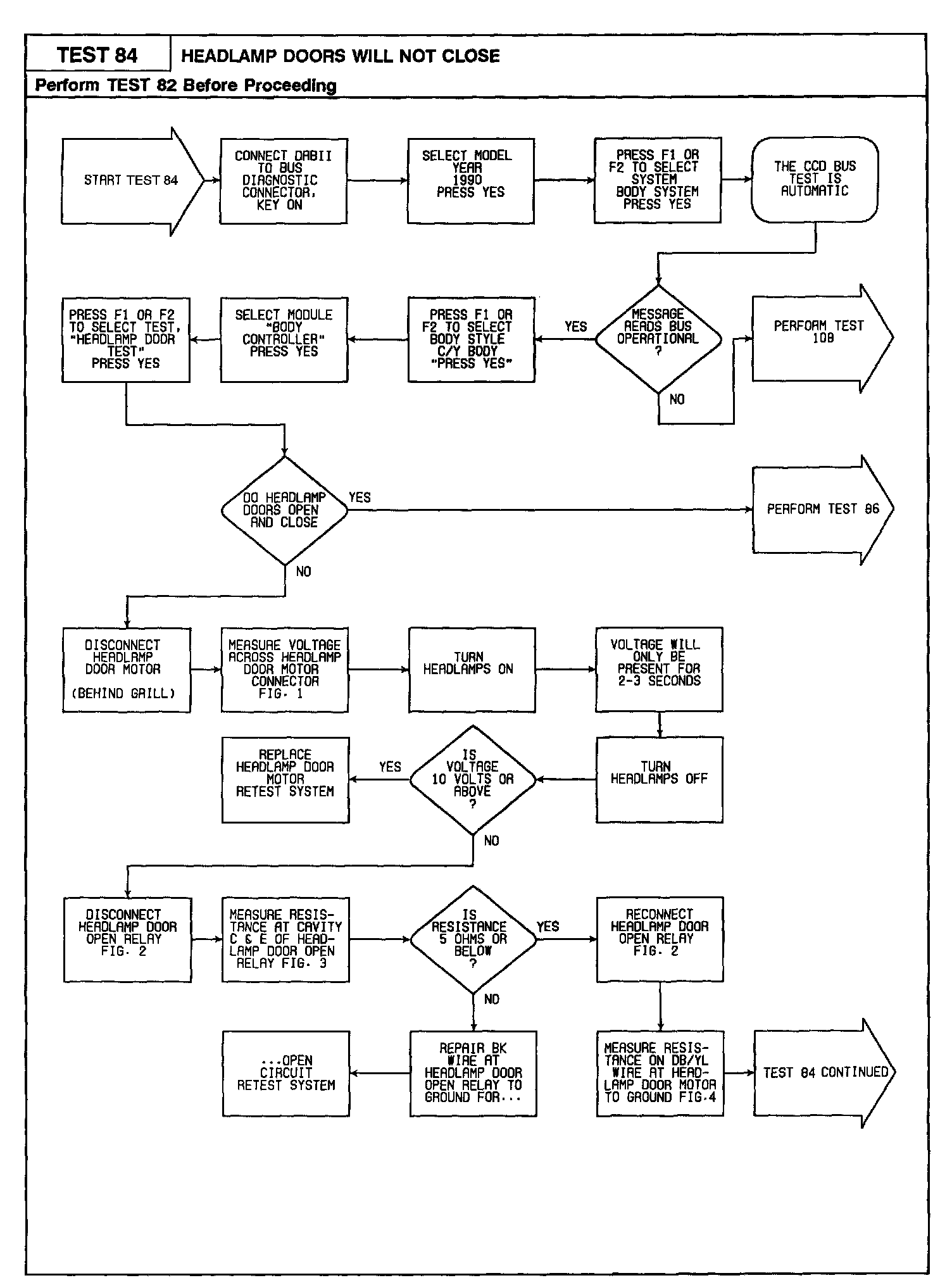

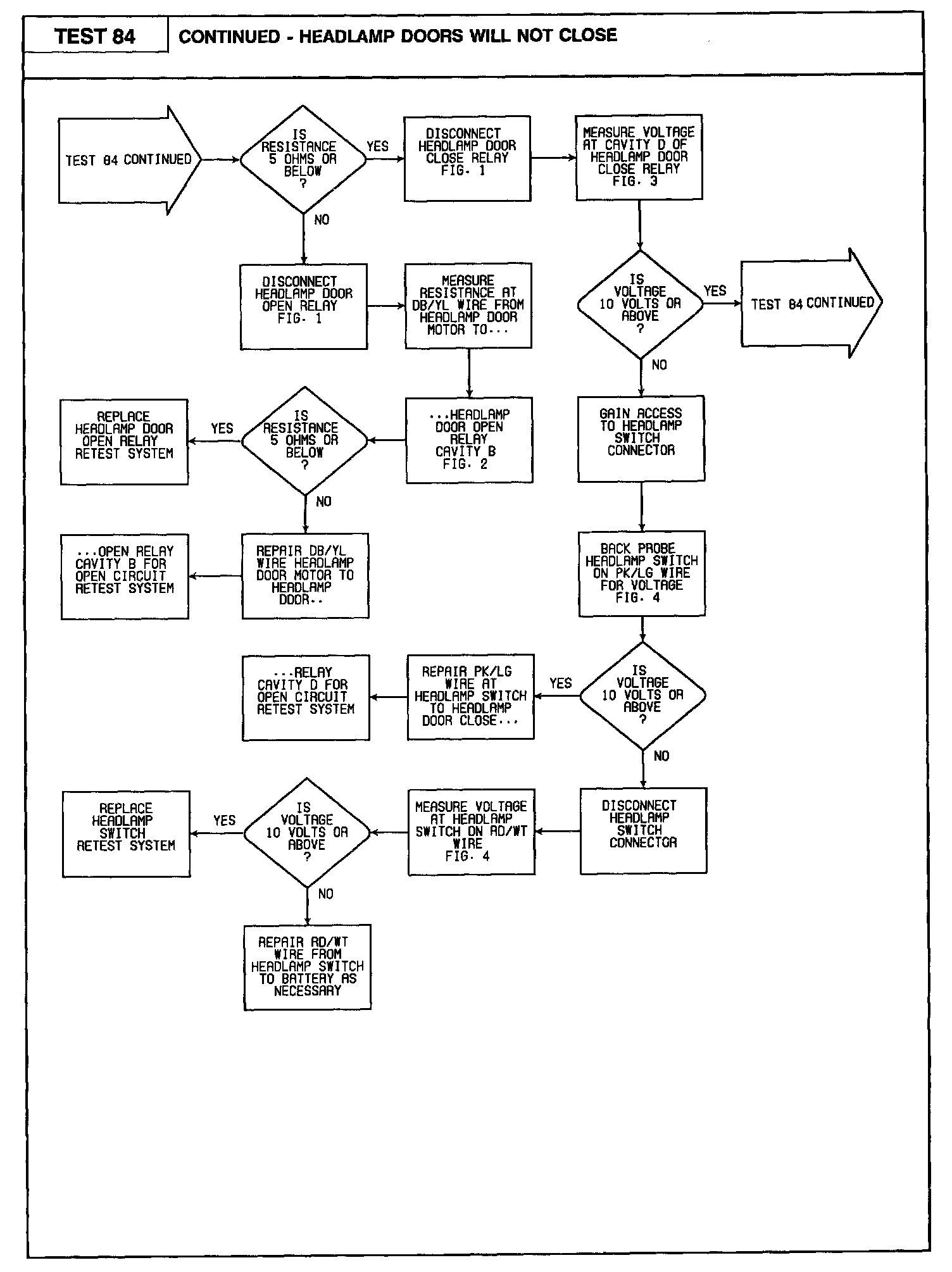

Test 84 - Headlamp Doors Will Not Close
Test 84 - Headlamp Doors Will Not Close
