Volt Meter Gauge: Testing and Inspection

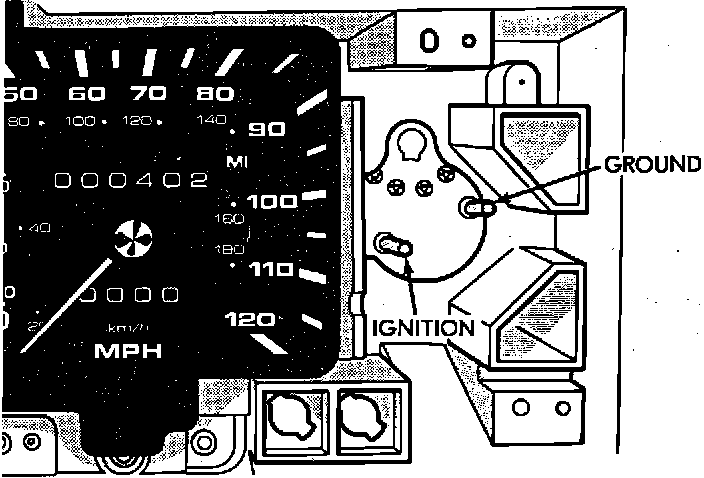

Voltmeter Pins:

1. Remove voltmeter assembly from cluster.
2. Connect a volt/ohmmeter between the B+ pin and the Ground pin. Turn the ignition switch to the ON position and check meter reading.
^ The instrument panel voltmeter indicates regulated alternator output or battery voltage, which ever is greater.
