Imperial V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>

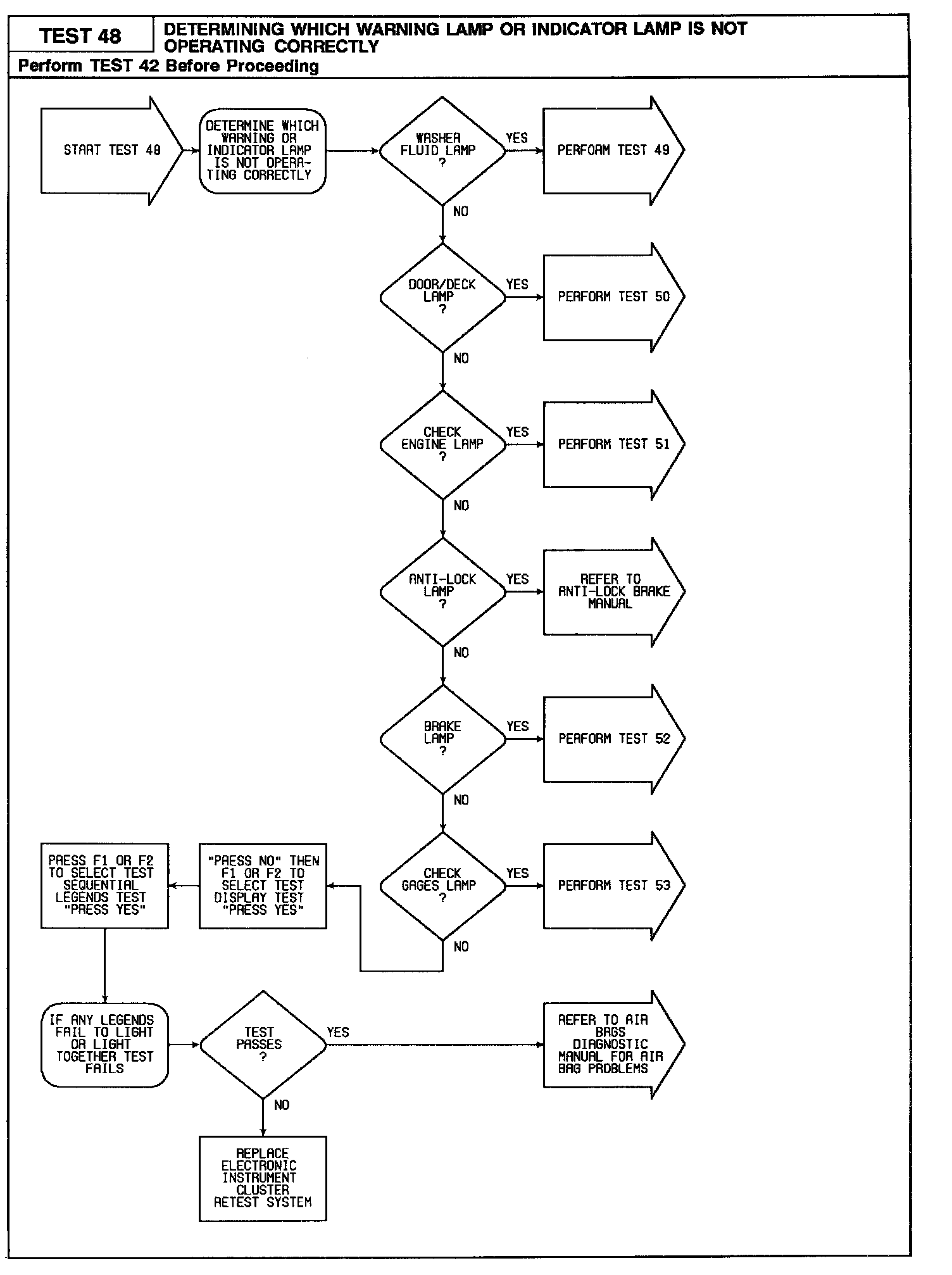

Test 48 - Determine Which Warning Lamp/Ind is Not Working Right
Test 48 - Determine Which Warning Lamp/Ind is Not Working Right
